IRC3S422L0G Green LED Black Button Square 16mm Momentary NO Push Button Switch IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	200mA 48VDC
Current Rating	0.2A
Illuminated	Yes
Illumination Colour	Green
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

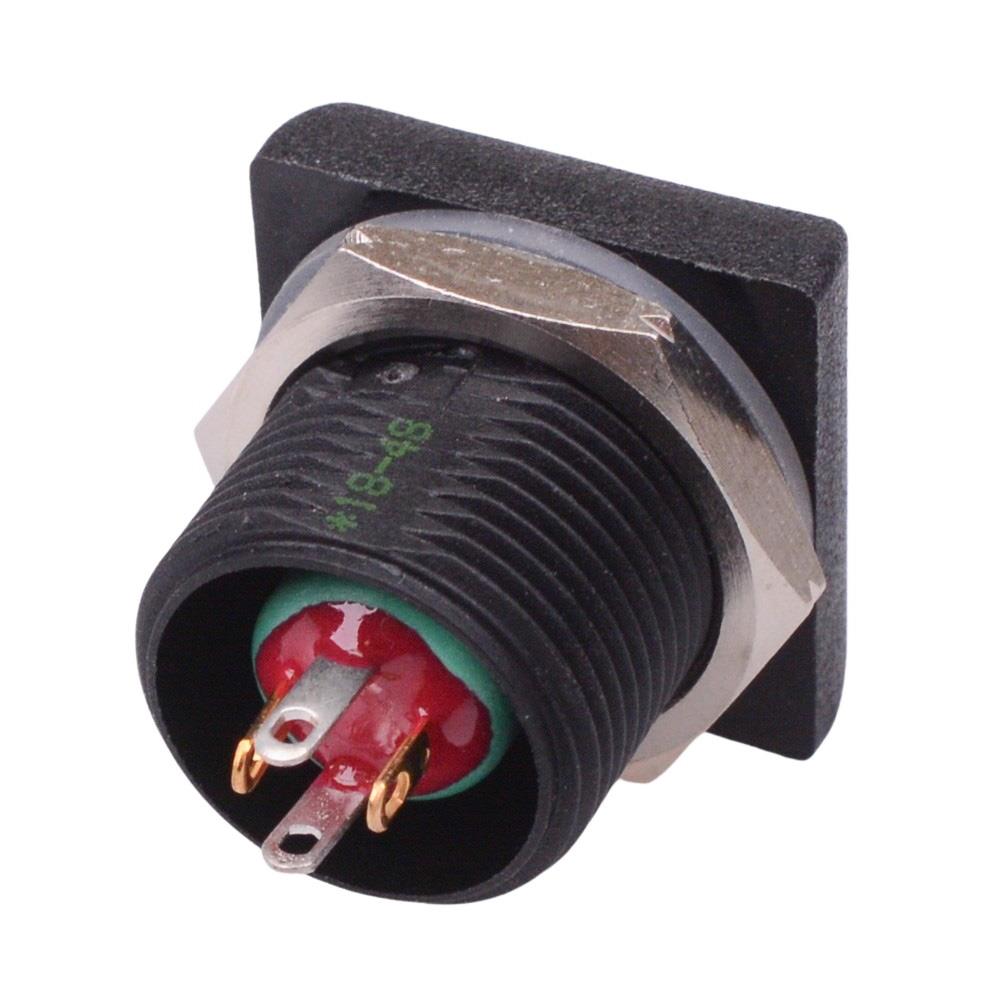

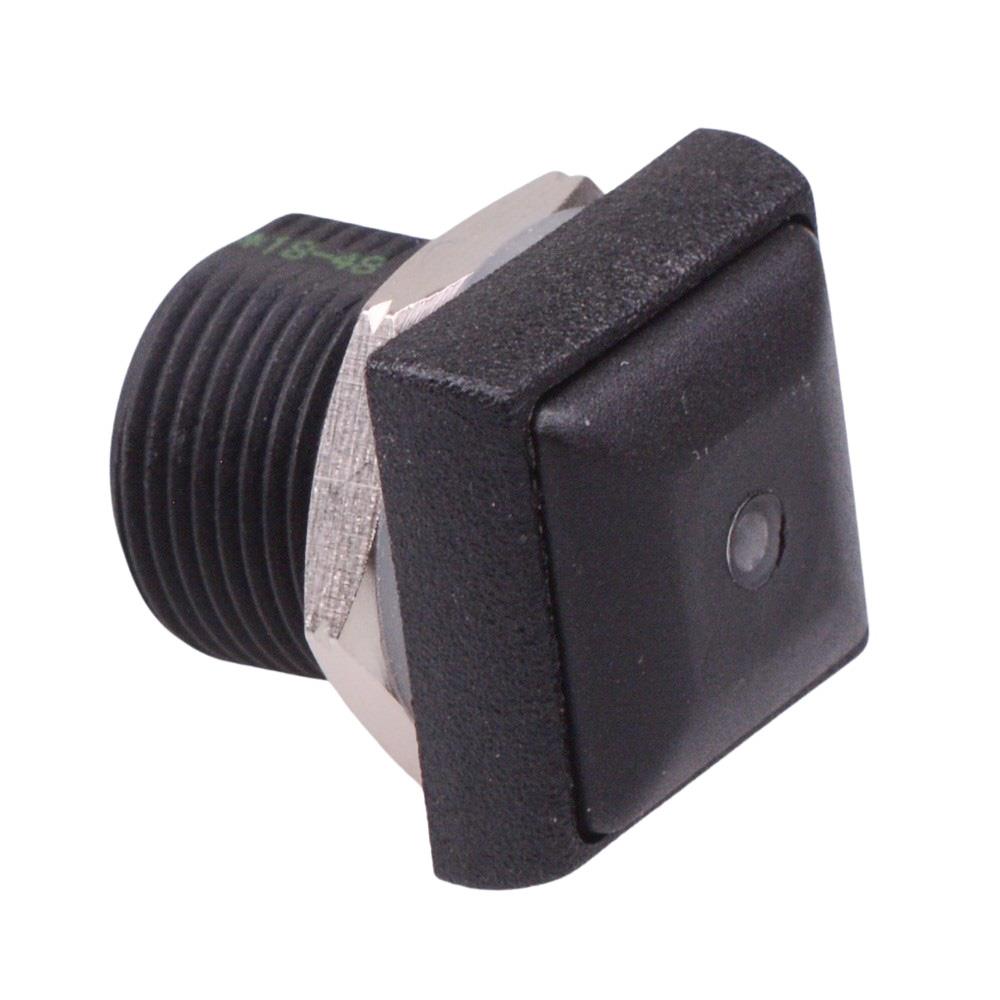

The IRC3S422L0G is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.

Button colour: black

LED colour: green

LED forward voltage: 2.1V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: solder lug

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
