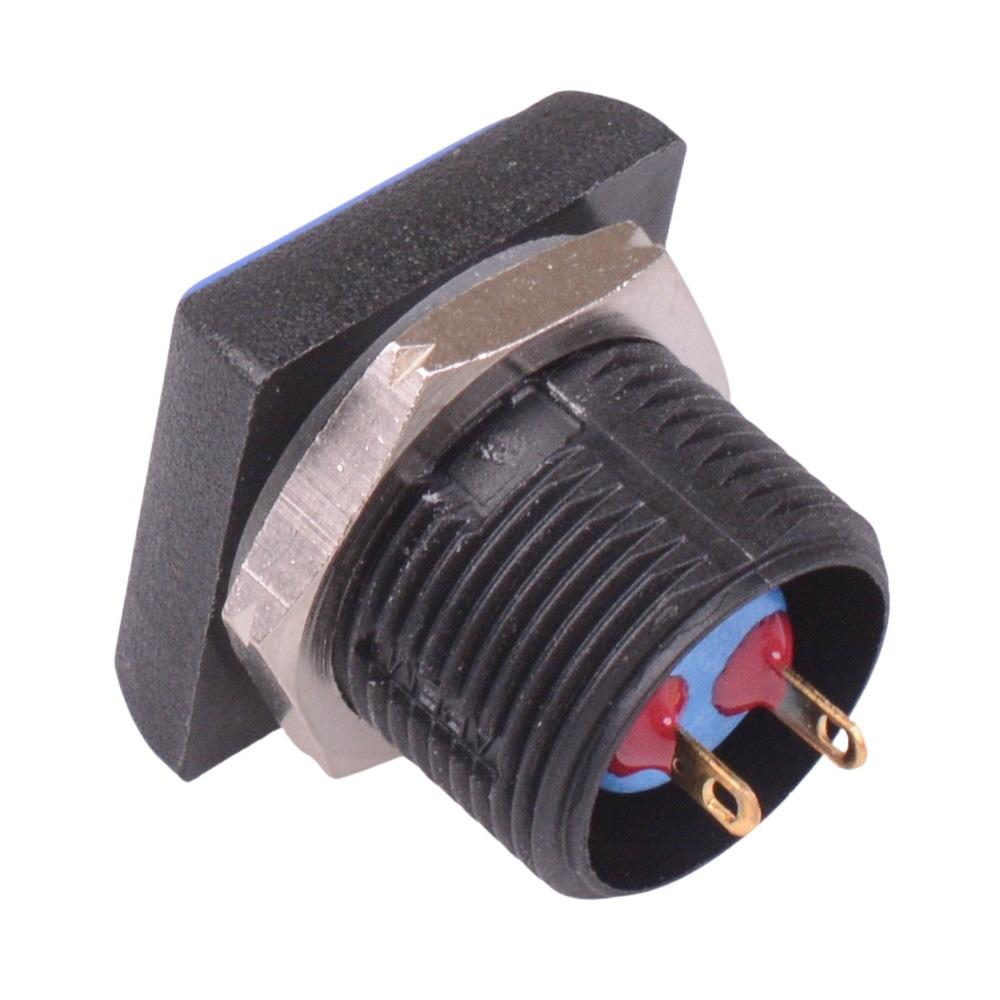

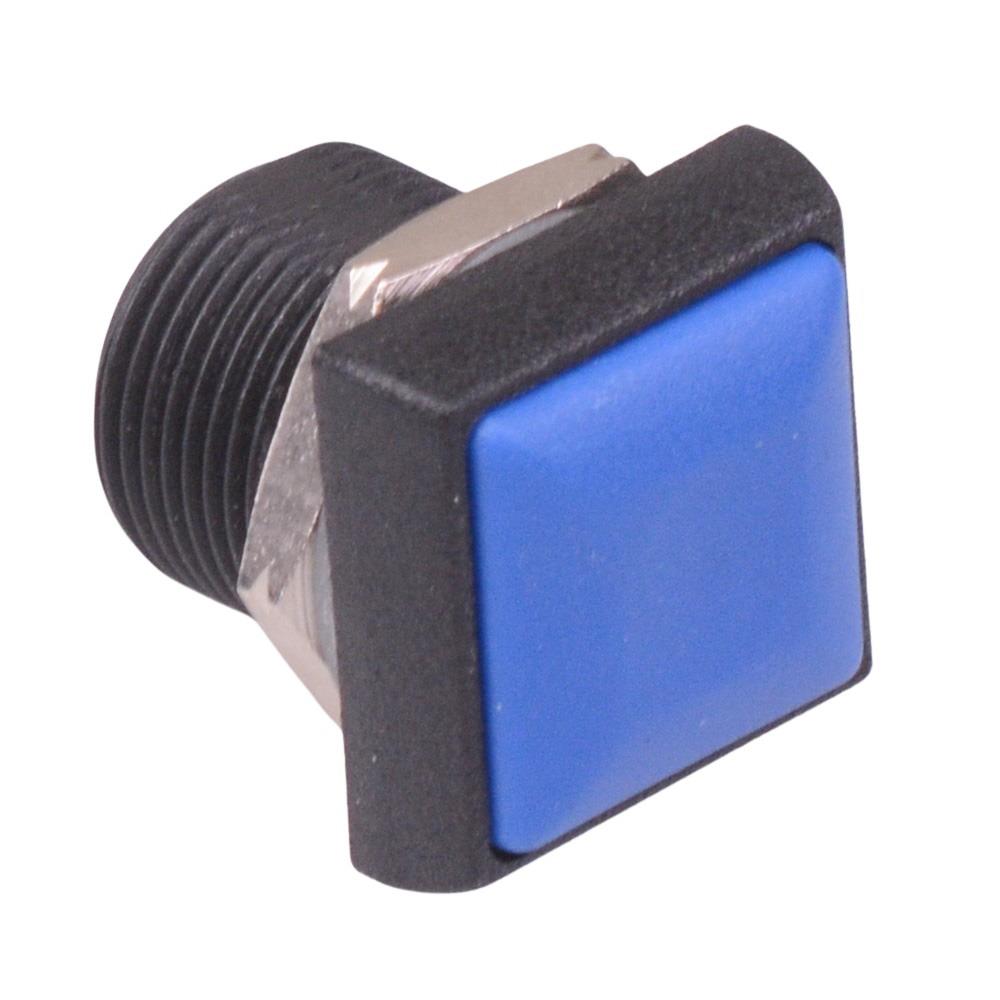

Dark Blue Square 16mm Momentary NO Push Button Switch IP67 IRC3S4B2

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Dark Blue
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	200mA 48VDC
Current Rating	0.2A
Illuminated	No
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

Dark Blue Square 16mm Momentary NO Push Button Switch IP67 IRC3S4B2

The IRC3S4B2 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.

Button colour: dark blue

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals:solder lug contacts

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
