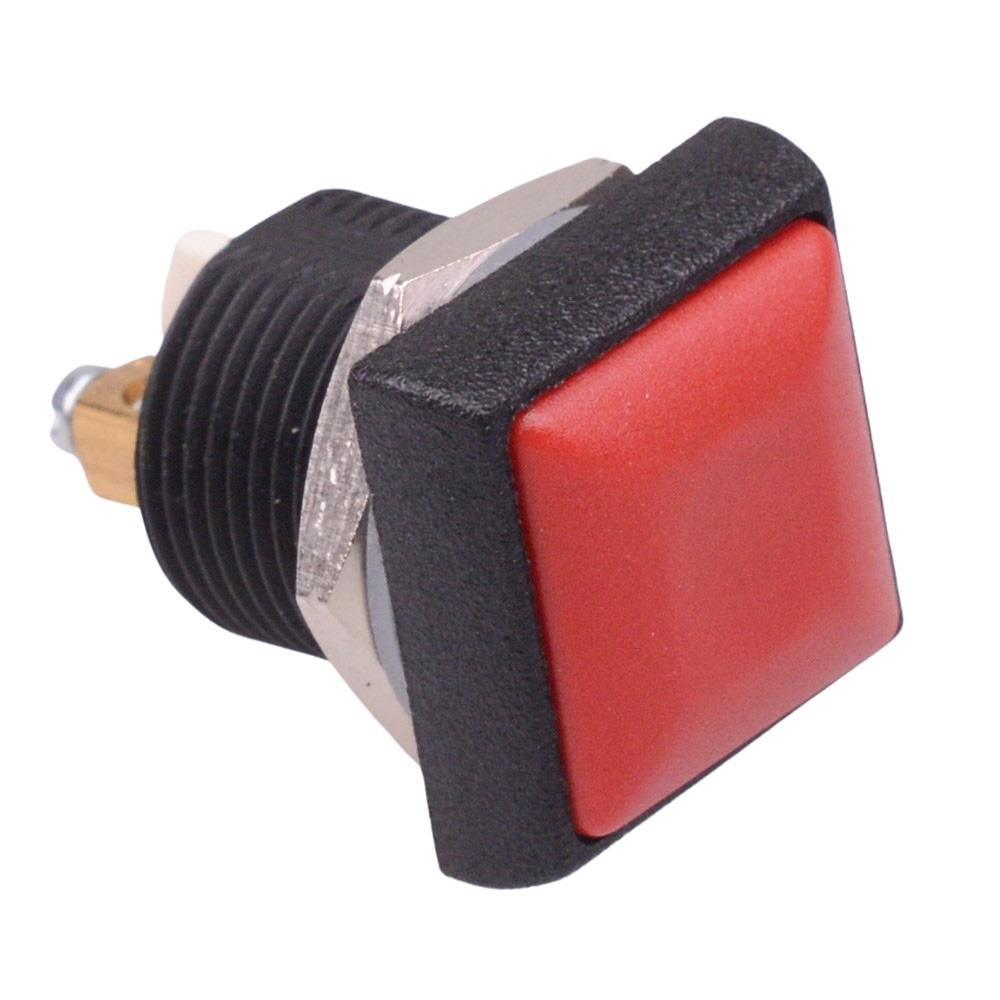

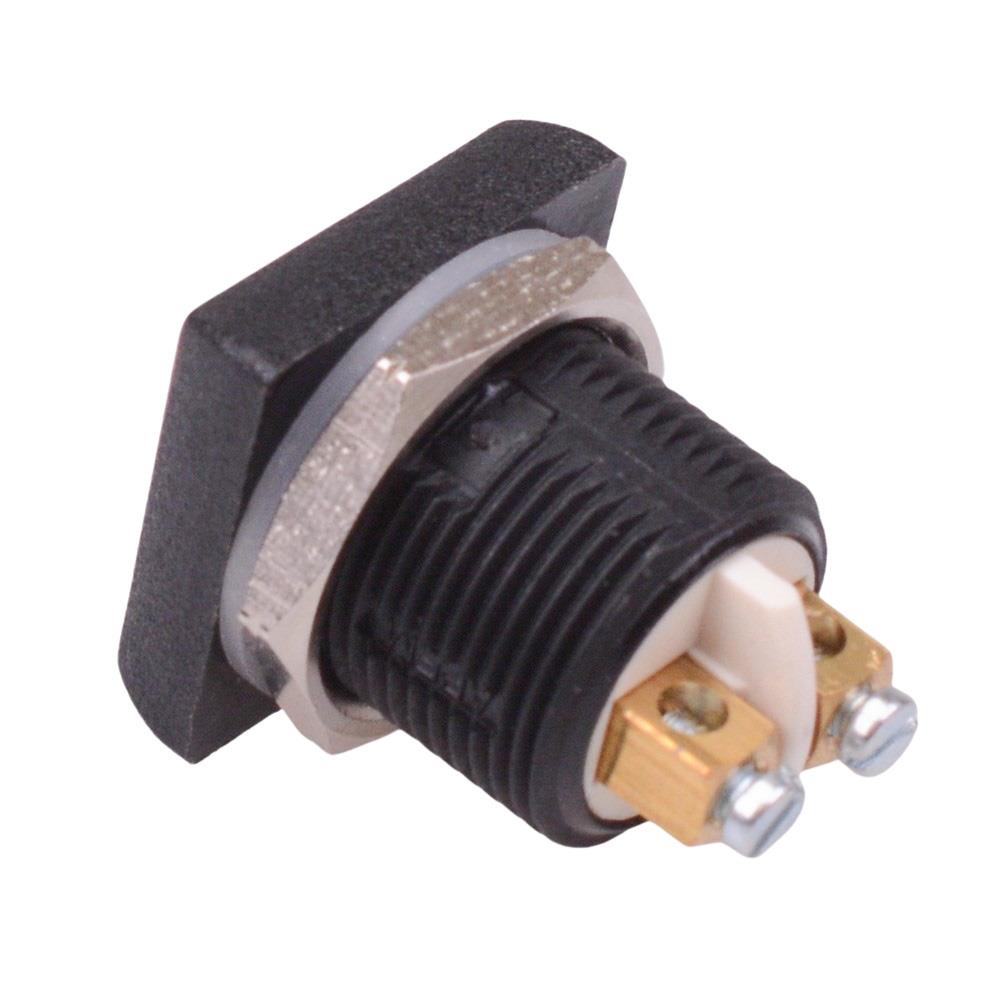

IRC3V262 Red Square 16mm Momentary NO Push Button Switch Screw Terminals IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Red
Contact Configuration	SPST
Contact Material	Silver
Contact Rating	4A 48VDC
Current Rating	4A
Illuminated	No
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	Off-(On)
Terminal Type	Screw
Voltage Rating	48VDC

Description

The IRC3V262 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and screw contacts rated up to 4A 48VDC. The switch is suitable for applications including automotive and marine.

Button colour: red

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: screw

Contact rating: 4A 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 30.5mm (length x width x height)
