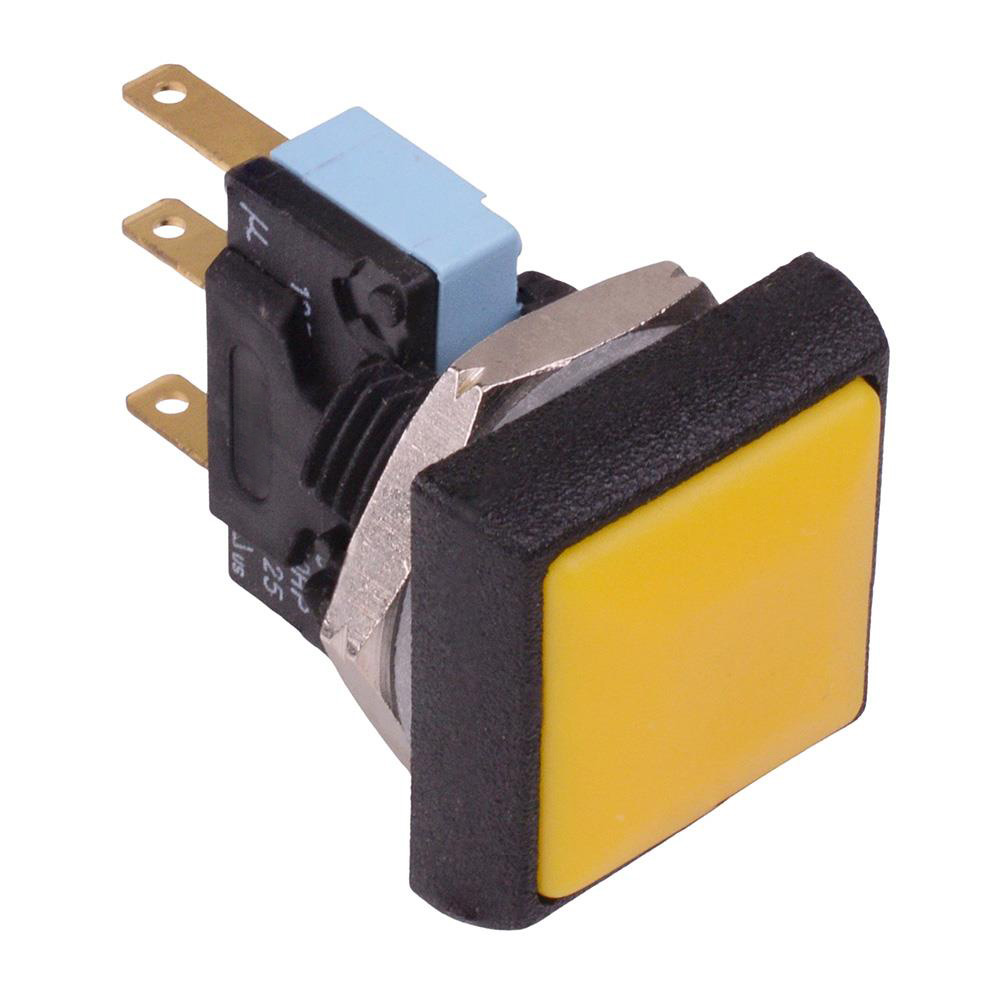

IRC7Z252 Yellow Square 16mm Momentary Push Button Switch SPDT 5A IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Yellow
Contact Configuration	SPDT
Contact Material	Gold Plated Silver
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	No
Electrical Life	500,000 Cycles
Illumination Colour	Non Illuminated
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	3mm
Product Series	IR
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

The IRC7Z252 is a square sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

Button colour: yellow

Panel cut-out: 16.2mm

Contacts: momentary NO + NC

Terminals:quick connect / solder lug contacts

Contact rating: 5A 250VAC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
