Yellow LED Yellow Button Square 16mm Momentary Push Button Switch SPDT 5A IP67 IRC7Z252L0Y
from
$12.96
Ex Tax: $12.96
10 or more $11.54
25 or more $10.89
50 or more $10.24
100 or more $9.72
- Stock: In Stock
- Model: SCJ014165
- SKU: SCJ014165
Products Sold: 0
Product Views: 73
Ask a Question About This Product
- Description

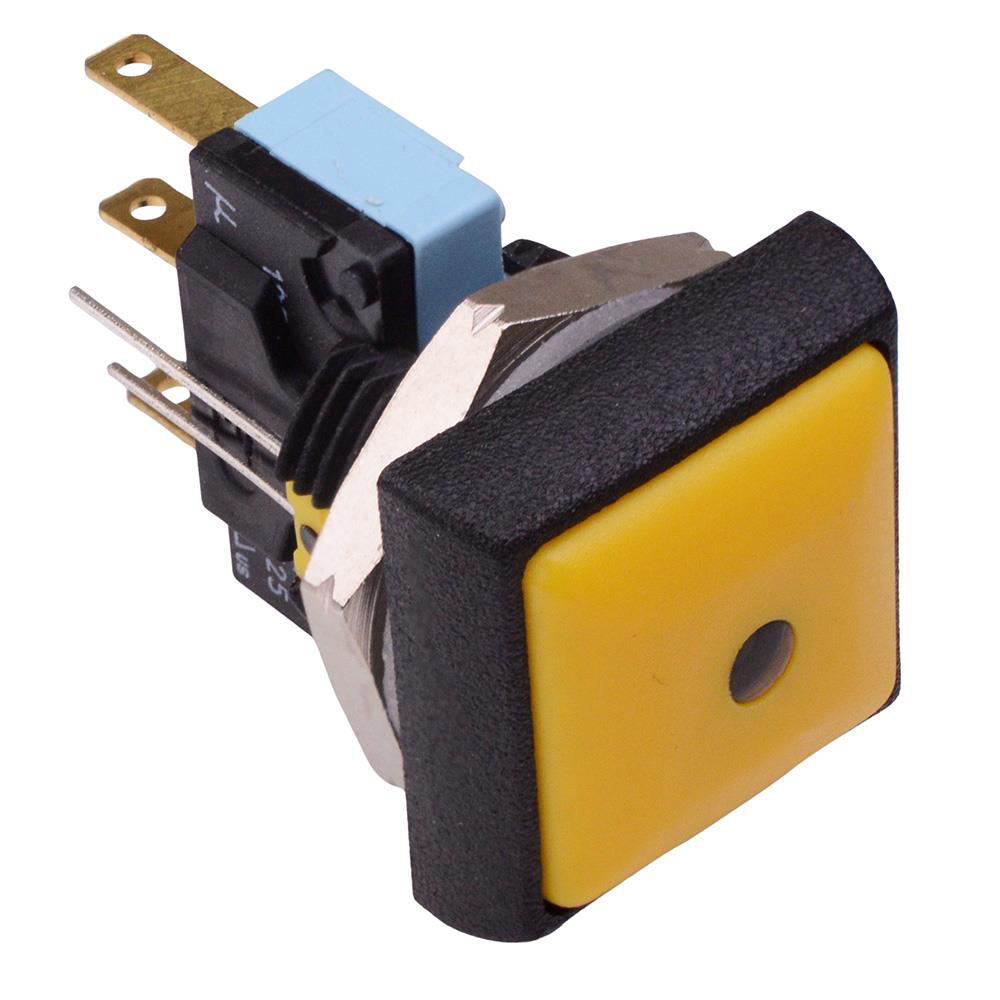

Yellow LED Yellow Button Square 16mm Momentary Push Button Switch SPDT 5A IP67 IRC7Z252L0Y
The IRC7Z252L0Y is a square sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: yellow LED colour: yellow LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary NO + NC Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
