Green Square 16mm Momentary NO/NC Push Button Switch DPDT 5A IP67 IRC8Z232

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Green
Contact Configuration	NO/NC
Contact Material	Silver
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	No
Material	PA66
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-20°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	3mm
Product Series	IR
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

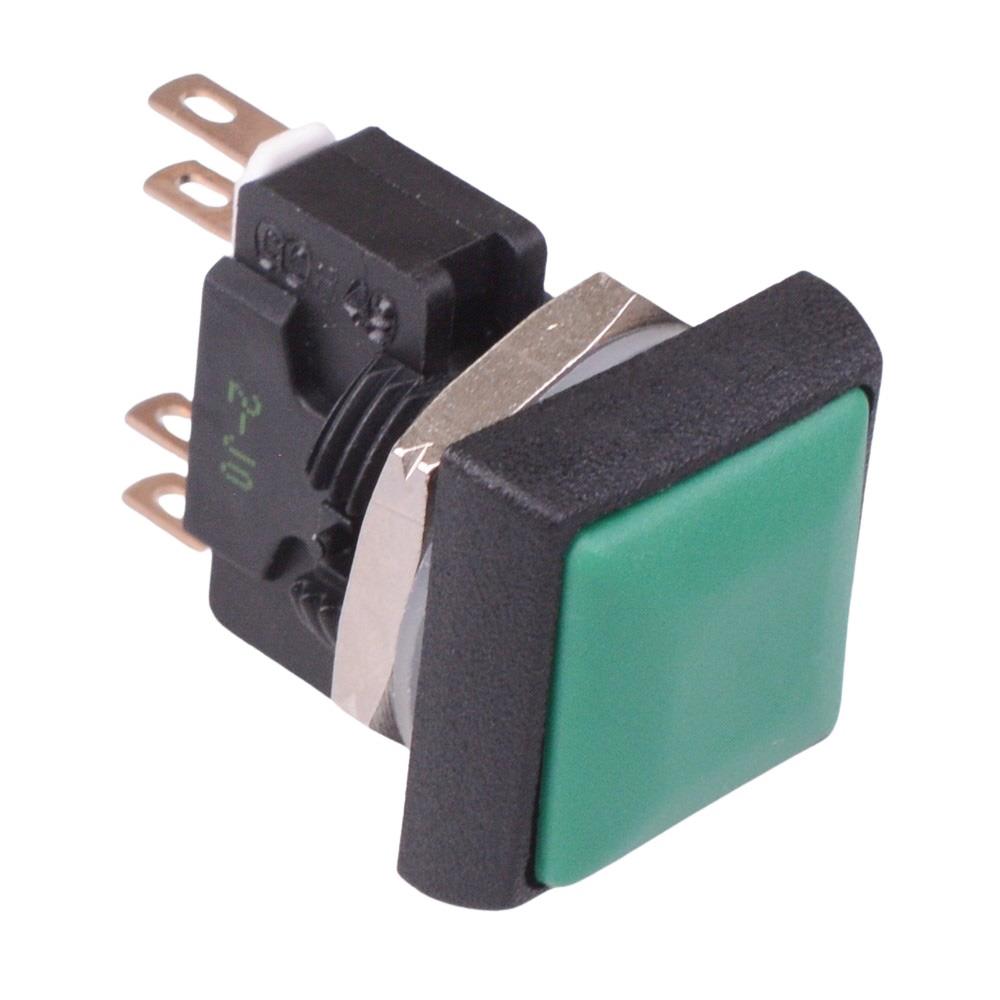

Green Square 16mm Momentary NO/NC Push Button Switch DPDT 5A IP67 IRC8Z232

The IRC8Z232 is a green square sealed momentary push button switch with a 16mm bushing and combined NO/NC contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

Button colour: green

Panel cut-out: 16.2mm

Contacts: NO/NC combined

Terminals: quick connect / solder lug contacts

Contact rating: 5A 250VAC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
