White Round 16mm Momentary NO Push Button Switch IP67 IRP3S472

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	0.2A 48VDC
Current Rating	0.2A
Illuminated	No
Electrical Life	500,000 Cycles
Illumination Colour	Non Illuminated
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

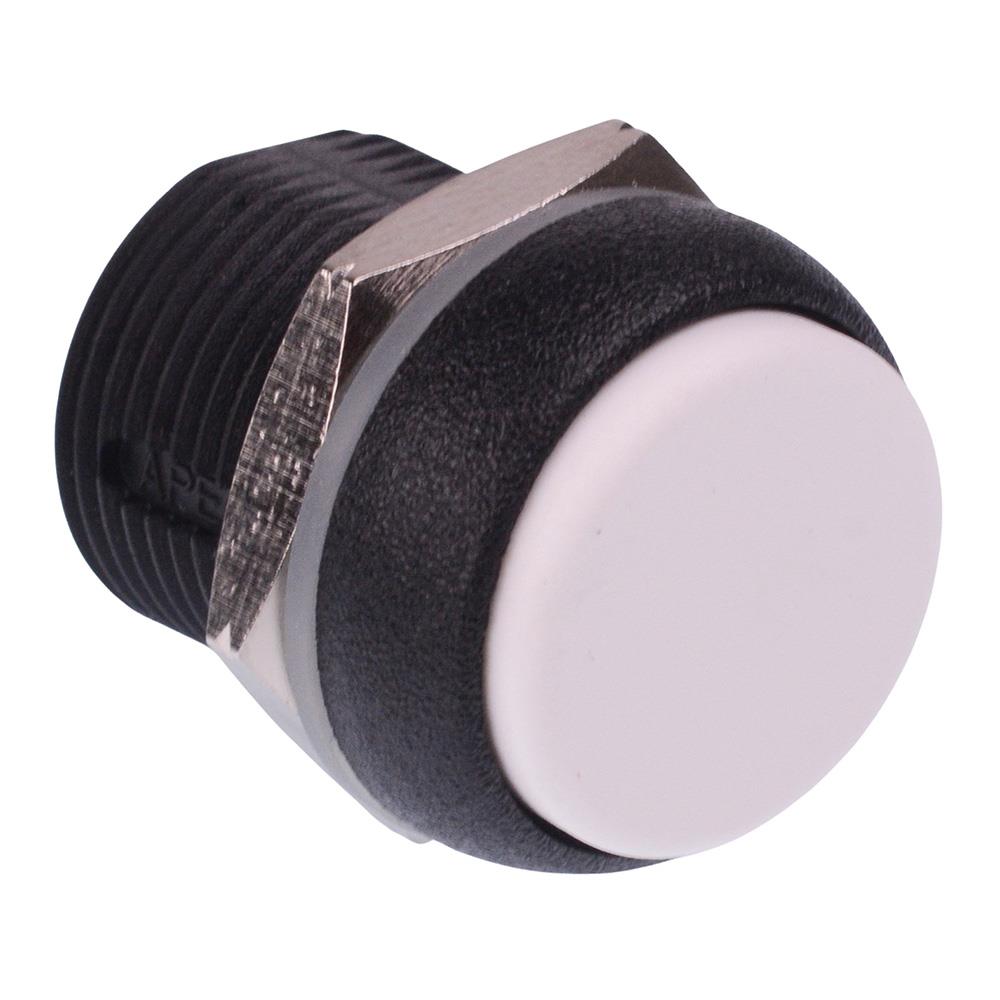

White Round 16mm Momentary NO Push Button Switch IP67 IRP3S472

The IRP3S472 is a round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug contacts. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: white

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: solder lug contacts

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 26.3mm (diameter x height)
