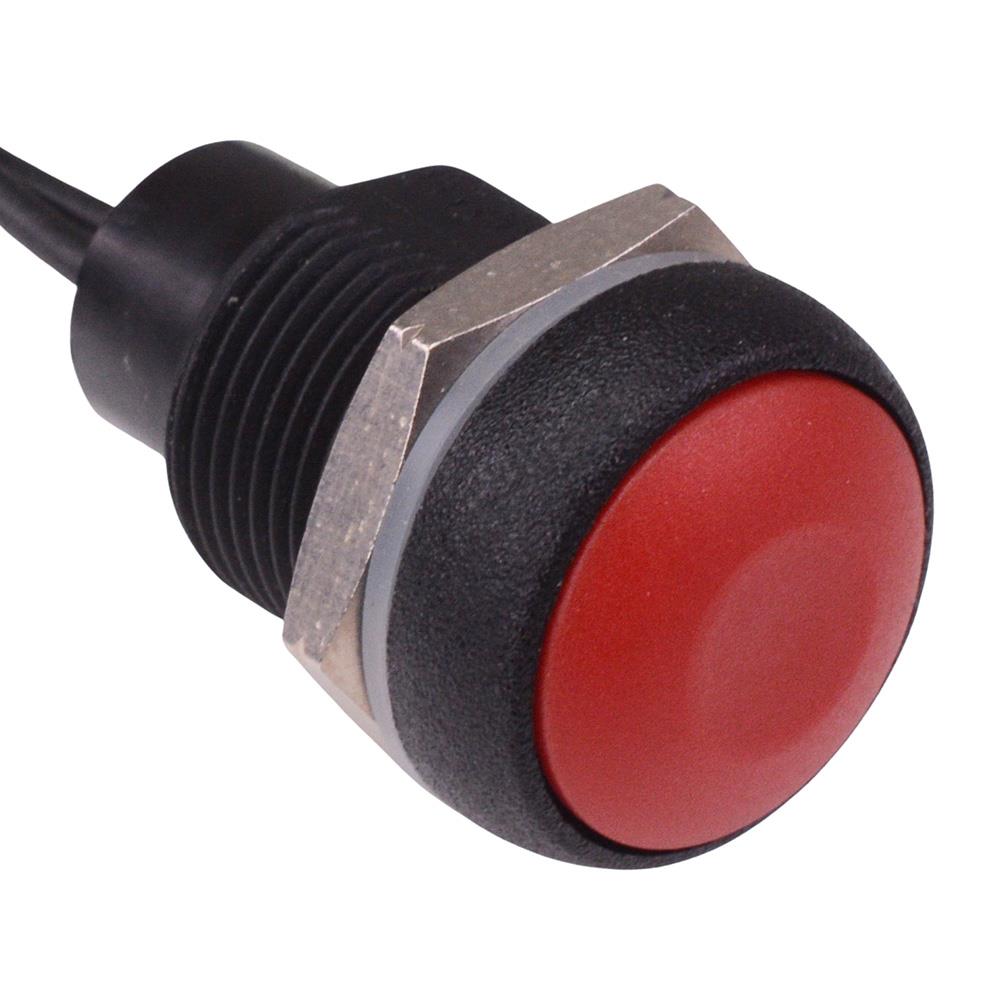

IRR1F462 Red Round 16mm Latching Push Button Switch Prewired IP67

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	0.2A 48VDC
Current Rating	0.2A
Illuminated	No
Electrical Life	500,000 Cycles
Illumination Colour	Non Illuminated
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	On-Off
Terminal Type	Flying Leads
Voltage Rating	48VDC

Description

The IRR1F462 is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: red

Panel cut-out: 16.2mm

Contacts: latching SPST

Terminals: 500mm flying leads

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 31mm (diameter x height)
