IRR1S472L0Y Yellow LED White Button Round 16mm Latching Push Button Switch IP67
from
$19.85
Ex Tax: $19.85
10 or more $17.67
25 or more $16.68
50 or more $15.68
100 or more $14.89
- Stock: In Stock
- Model: SCJ014192
- SKU: SCJ014192
Products Sold: 0
Product Views: 34
Ask a Question About This Product
- Description

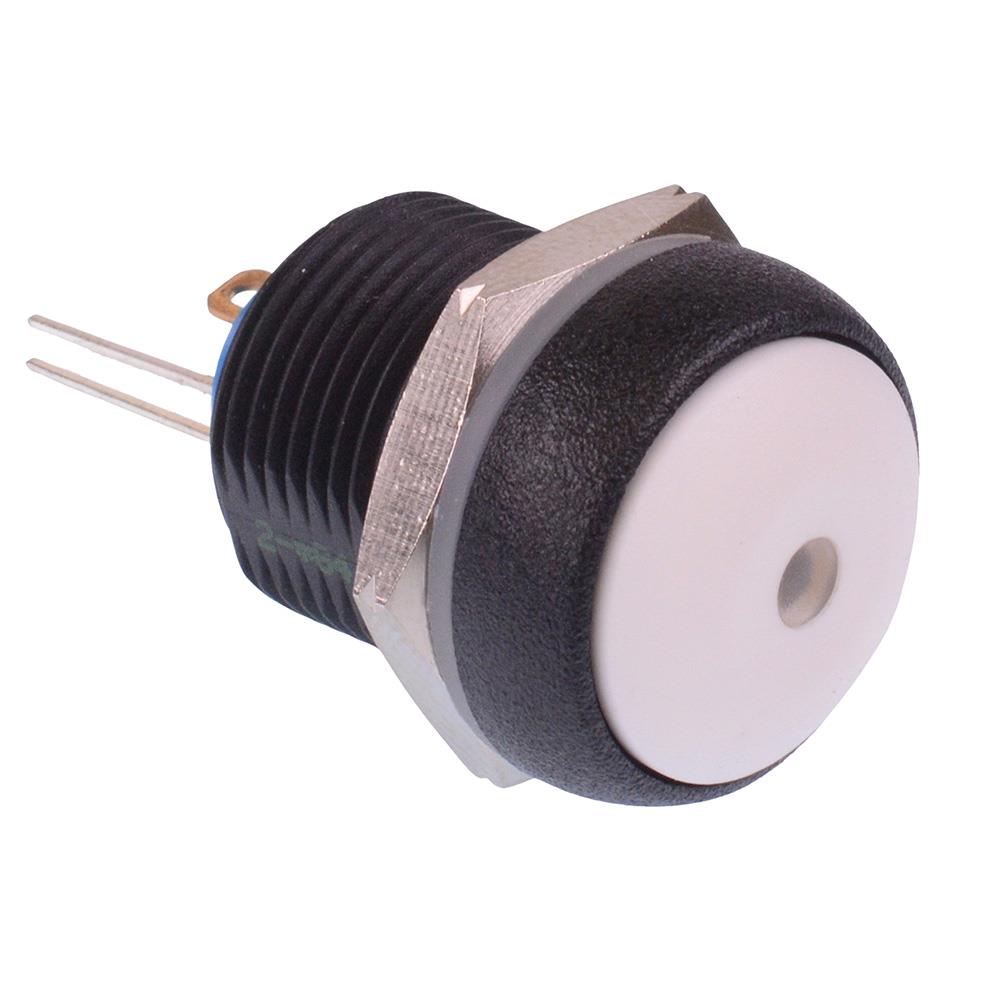

The IRR1S472L0Y is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and solder lug terminals. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.
Button colour: white LED colour: yellow LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: latching SPST Terminals: solder lug Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 31mm (diameter x height)
