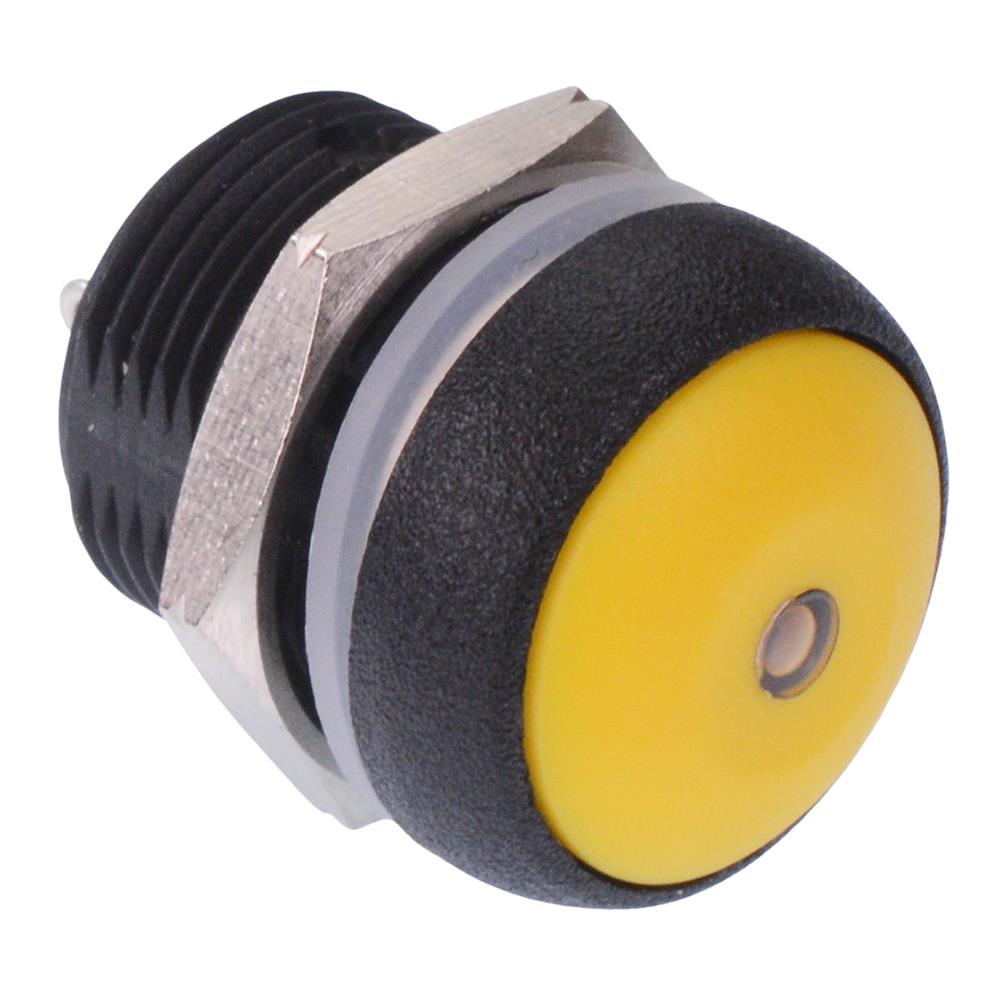

IRR3S452L0Y Yellow LED Yellow Button Round 16mm Momentary Push Button Switch IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Yellow
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	0.2A 48VDC
Current Rating	0.2A
Illuminated	Yes
Electrical Life	500,000 Cycles
Illumination Colour	Yellow
Illumination Voltage	2.1VDC
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

The IRR3S452L0Y is a round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and solder lug contacts. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: yellow

LED colour: yellow

LED forward voltage: 2.1V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: solder lug contacts

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 26.3mm (diameter x height)
