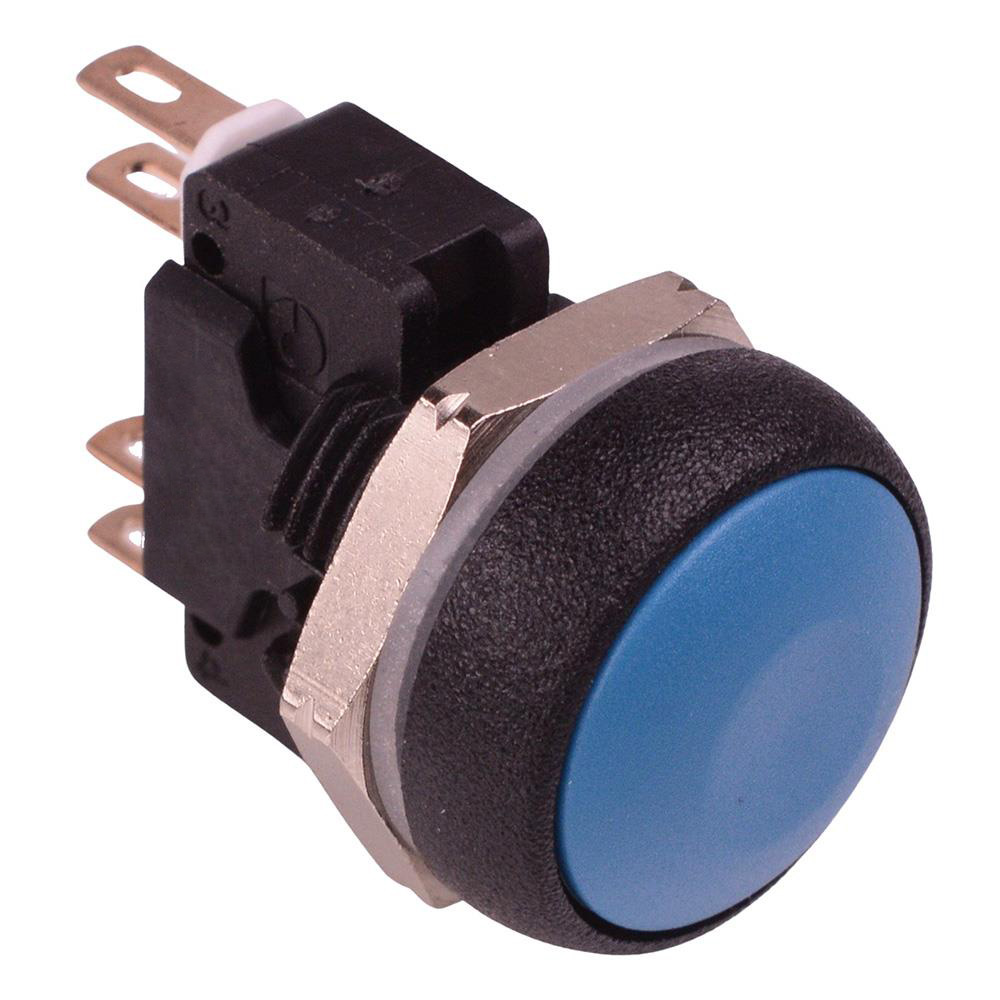

IRR8Z212 Blue Round 16mm Momentary Push Button Switch DPDT 5A IP67

IRR8Z212 Blue Round 16mm Momentary Push Button Switch DPDT 5A IP67
IRR8Z212 Blue Round 16mm Momentary Push Button Switch DPDT 5A IP67
0 reviews - Write a review
from
$11.26
Ex Tax: $11.26
10 or more $10.02
25 or more $9.46
50 or more $8.90
100 or more $8.45
  • Stock: In Stock
  • Model: SCJ014193
  • SKU: SCJ014193
Products Sold: 0
Product Views: 29
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourBlue
Contact ConfigurationDPDT
Contact MaterialGold Plated Silver
Contact Rating5A 250VAC
Current Rating5A
IlluminatedNo
Electrical Life500,000 Cycles
Illumination ColourNon Illuminated
MaterialPolyamide
Mounting StylePanel
Number of Poles2
Number of Positions2
Protection LevelIP67
Operating Temperature-40°C to +85°C
Panel Cut Out16.2mm
Panel Thickness3mm
Product SeriesIR
Switch OperationOn-(On)
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description
The IRR8Z212 is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch and maximum current/voltage rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

  • Button colour: blue
  • Panel cut-out: 16.2mm
  • Contacts: DPDT
  • Terminals:quick connect / solder lug contacts
  • Contact rating: 5A 250VAC
  • Protection rating: IP67
  • Maximum panel thickness: 3mm
  • Dimensions: 19.8 x 31.65mm (diameter x height)

    • IRR8Z212 Blue Round 16mm Momentary Push Button Switch DPDT 5A IP67
