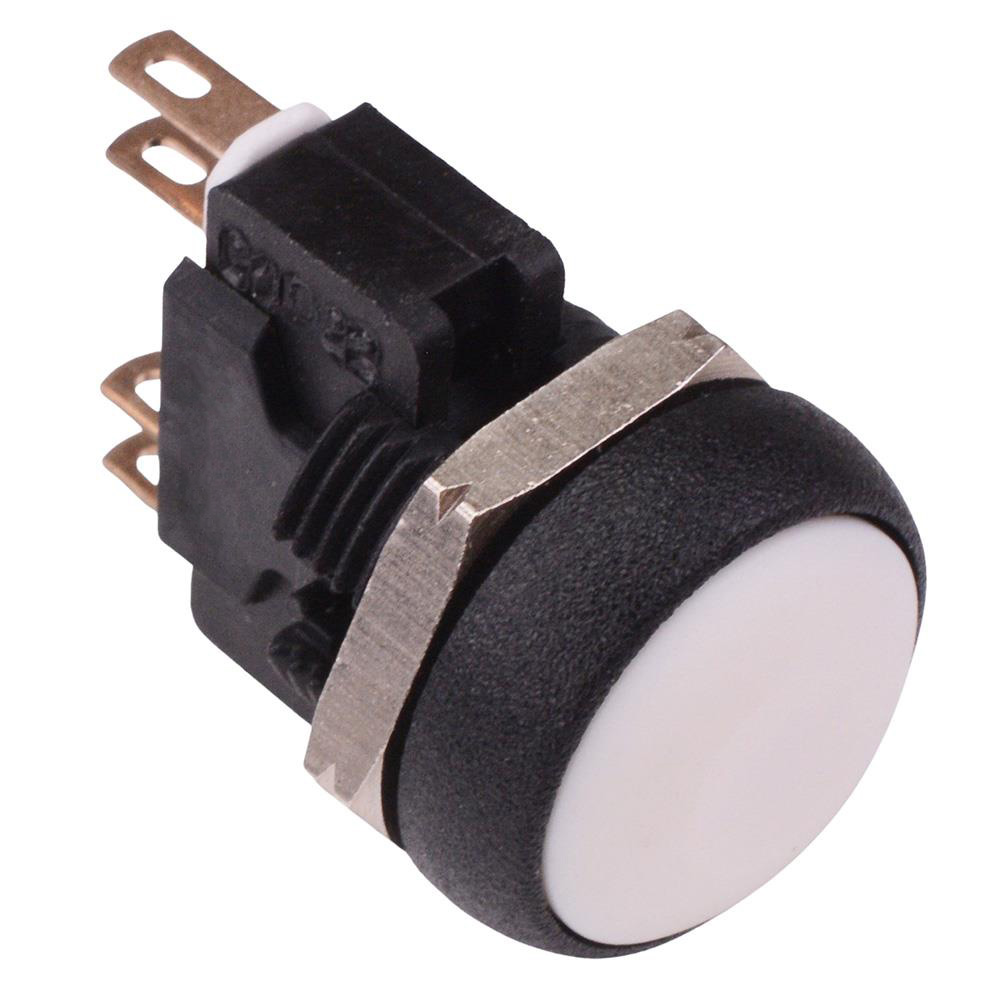

White Round 16mm Momentary Push Button Switch DPDT 5A IP67 IRR8Z272

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	DPDT
Contact Material	Gold Plated Silver
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	No
Electrical Life	500,000 Cycles
Illumination Colour	Non Illuminated
Material	Polyamide
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	3mm
Product Series	IR
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

White Round 16mm Momentary Push Button Switch DPDT 5A IP67 IRR8Z272

The IRR8Z272 is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch and maximum current/voltage rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

Button colour: white

Panel cut-out: 16.2mm

Contacts: DPDT

Terminals:quick connect / solder lug contacts

Contact rating: 5A 250VAC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 19.8 x 31.65mm (diameter x height)
