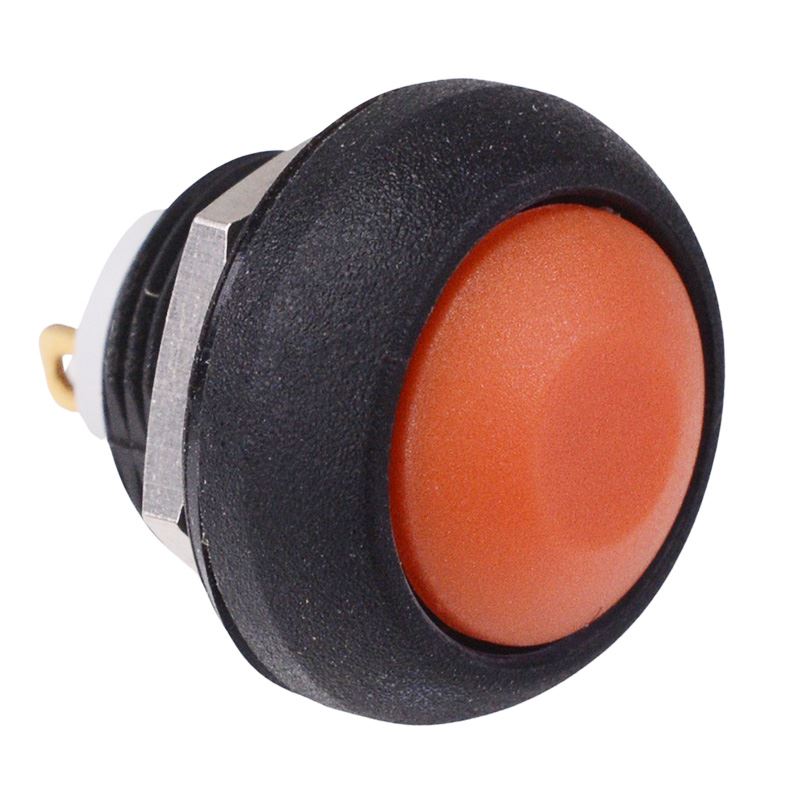

ISR3SAD900160 Orange Momentary 12mm Push Button SPST IP67

ISR3SAD900160 Orange Momentary 12mm Push Button SPST IP67
ISR3SAD900160 Orange Momentary 12mm Push Button SPST IP67
0 reviews - Write a review
from
$9.14
Ex Tax: $9.14
10 or more $8.13
25 or more $7.68
50 or more $7.22
100 or more $6.85
  • Stock: In Stock
  • Model: SCJ014028
  • SKU: SCJ014028
Products Sold: 0
Product Views: 29
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourOrange
Contact ConfigurationSPST
Contact Rating0.4A 32VAC, 0.1A 48VDC
Current Rating0.4A @ 32VAC
IlluminatedNo
Illumination ColourNon Illuminated
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force4N
Operating Temperature-40°C to +85°C
Panel Cut Out13.6mm
Panel Thickness1.5-4mm
Product SeriesIS
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating32VAC / 48VDC
  • Description
The ISR3SAD900160 is a orange momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

  • Momentary operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 400mA 32VAC - 100mA 48VDC
  • Panel thickness: 1.5-4mm
  • Dimensions: 20 x 17.5mm (length x diameter)

    • ISR3SAD900160 Orange Momentary 12mm Push Button SPST IP67
