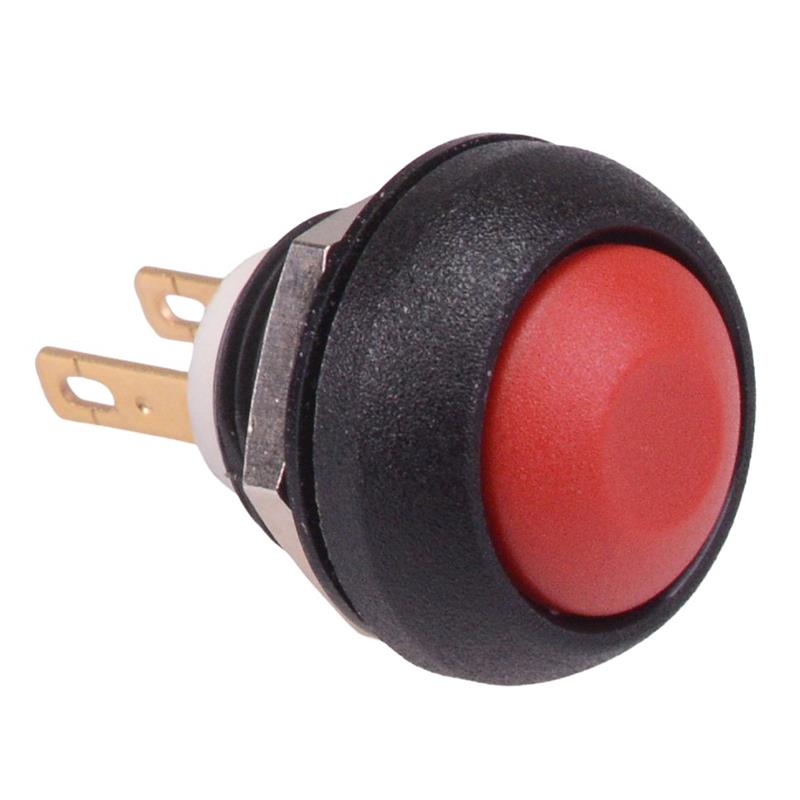

ISR3Z1AD600 Red Momentary 12mm Push Button SPST IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	0.4A 32VAC, 0.1A 48VDC
Current Rating	0.4A @ 32VAC
Illuminated	No
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Force	4N
Operating Temperature	-40°C to +85°C
Panel Cut Out	13.6mm
Panel Thickness	1.5-4mm
Product Series	IS
Switch Operation	Off-(On)
Terminal Type	Quick Connect
Voltage Rating	32VAC / 48VDC

Description

The ISR3Z1AD600 is a red momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features 2.8mm quick connect terminals and SPST contacts, suitable for a wide range of applications.

Momentary operation

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

2.8mm x 0.5mm quick connect terminals

Rating: 400mA 32VAC - 100mA 48VDC

Panel thickness: 1.5-4mm

Dimensions: 20 x 17.5mm (length x diameter)
