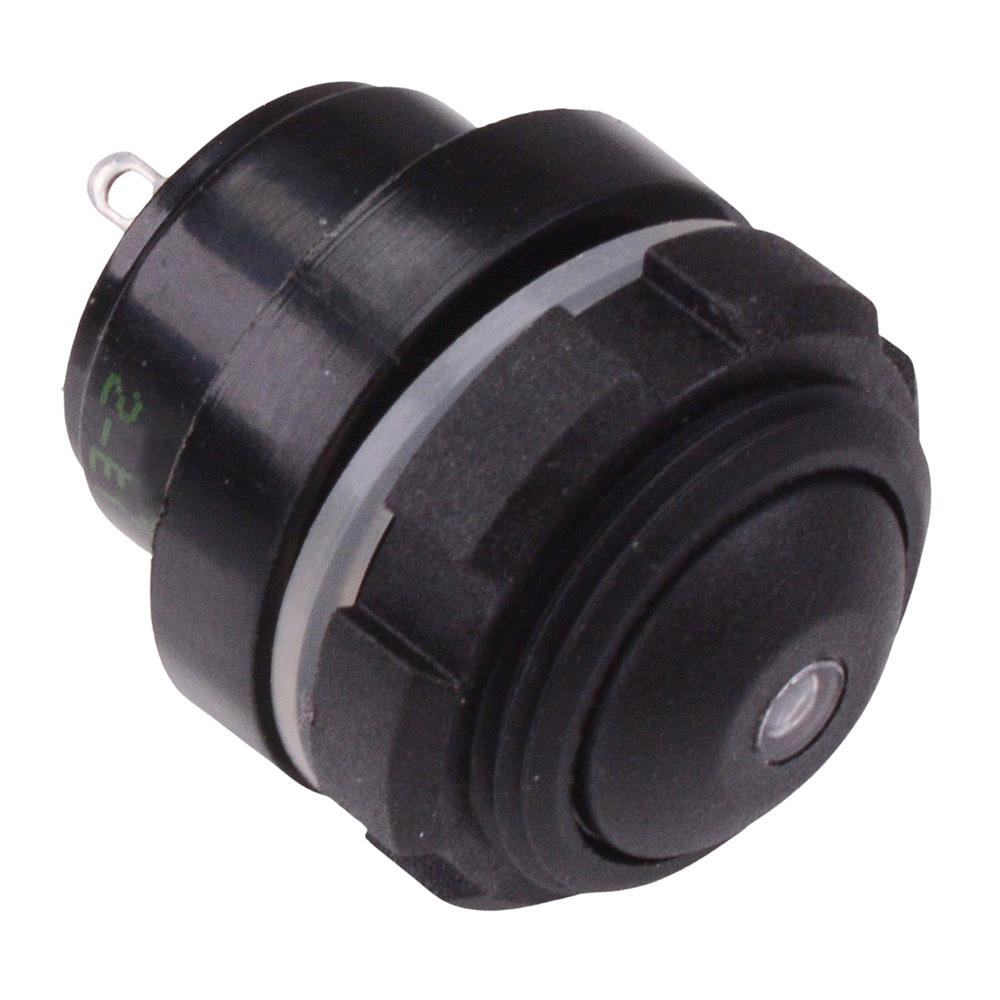

IZPR3S422L0B Blue LED Black Button 16mm Momentary NO Push Button Switch IP67

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Silver
Contact Rating	0.2A 48VDC
Current Rating	0.2A
Illuminated	Yes
Electrical Life	500,000 Cycles
Illumination Colour	Blue
Illumination Voltage	3.2VDC
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Panel Cut Out	16.2mm
Panel Thickness	8mm
Product Series	IR
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

The IZPR3S422L0B is a rear mounting round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug gold plated contacts. This makes the switch ideal for applications including automotive and marine.

Button colour: black

LED colour: blue

LED forward voltage: 3.2V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary SPST-NO

Terminals: solder lug contacts

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 20 x 26.2mm (diameter x height)
