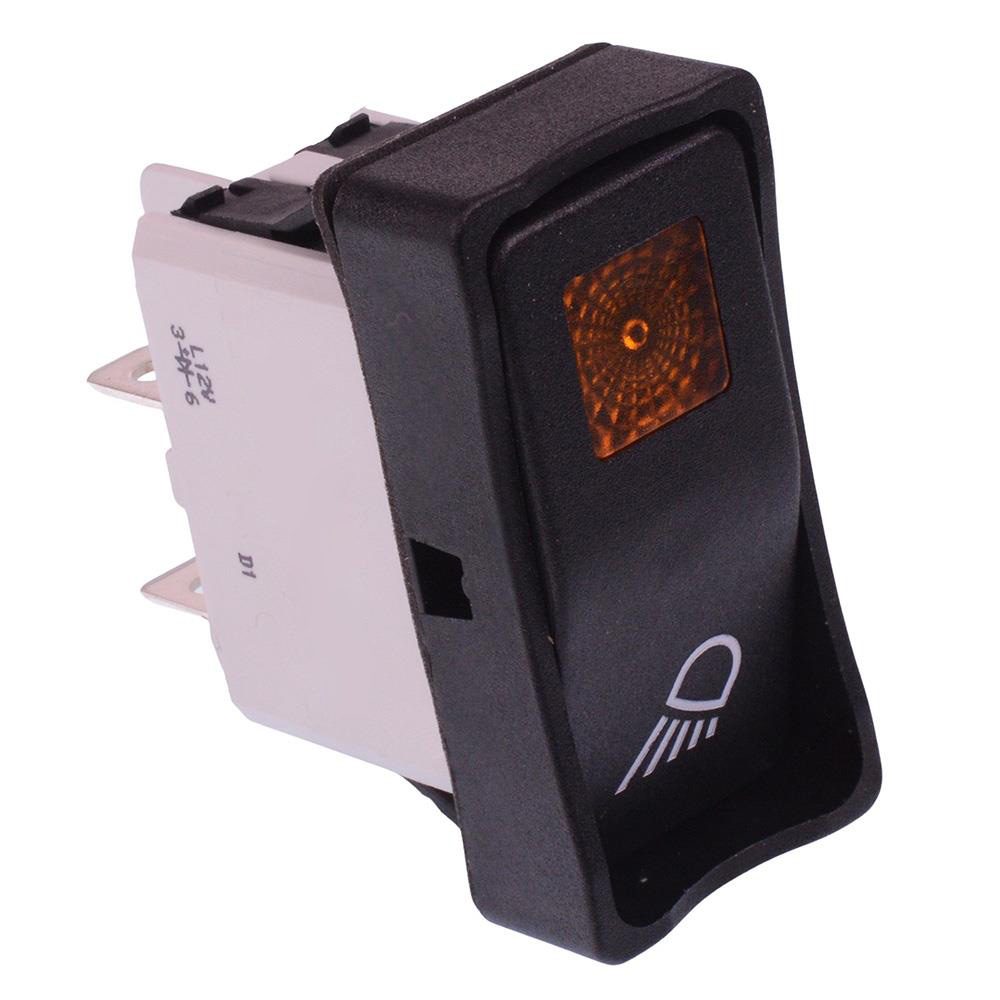

KG412A2FXA249XCVXX44 On-Off Orange 12V illuminated Automotive Rocker Switch DPST IP65

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPST
Contact Material	Silver
Contact Rating	15A 12VDC
Current Rating	15A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Orange
Illumination Voltage	12VDC
Material	Thermoplastic
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP65
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	0.8-4.6mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KG412A2FXA249XCVXX44 is a 12V power rower switch manufactured by socoje, featuring a dipped beam headlight symbol and orange illumination. The switch is sealed to IP65 and is suitable for automotive applications.

Dipped beam headlight symbol

On-Off operation

DPST contacts

Orange 12V illumination

IP65 protection rating

Protection bezel

6.35mm quick connect terminals

Rating: 15A 12VDC, 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
