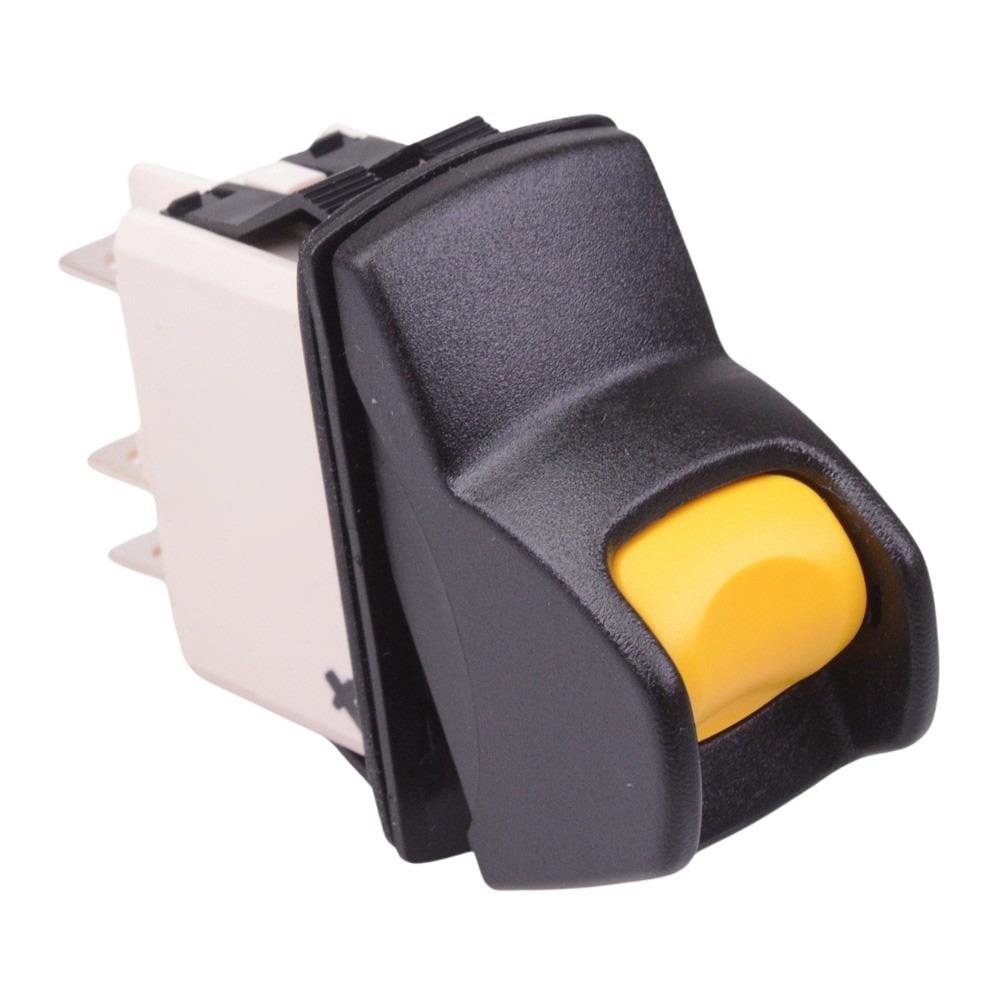

KL462AKXA125N On-On Yellow 24V Locking Power Rocker Switch DPDT IP68

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	5A 24VDC
Current Rating	5A
Illuminated	No
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	0.8mm to 4.6mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KL462AKXA125N is a 24V power rower switch manufactured by socoje, featuring a locking mechanism to prevent against accidental operation. The switch features a yellow actuator and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.

On-On operation

DPDT contacts

IP68 protection rating

One protected position

Quick connect terminals

Rating: 5A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
