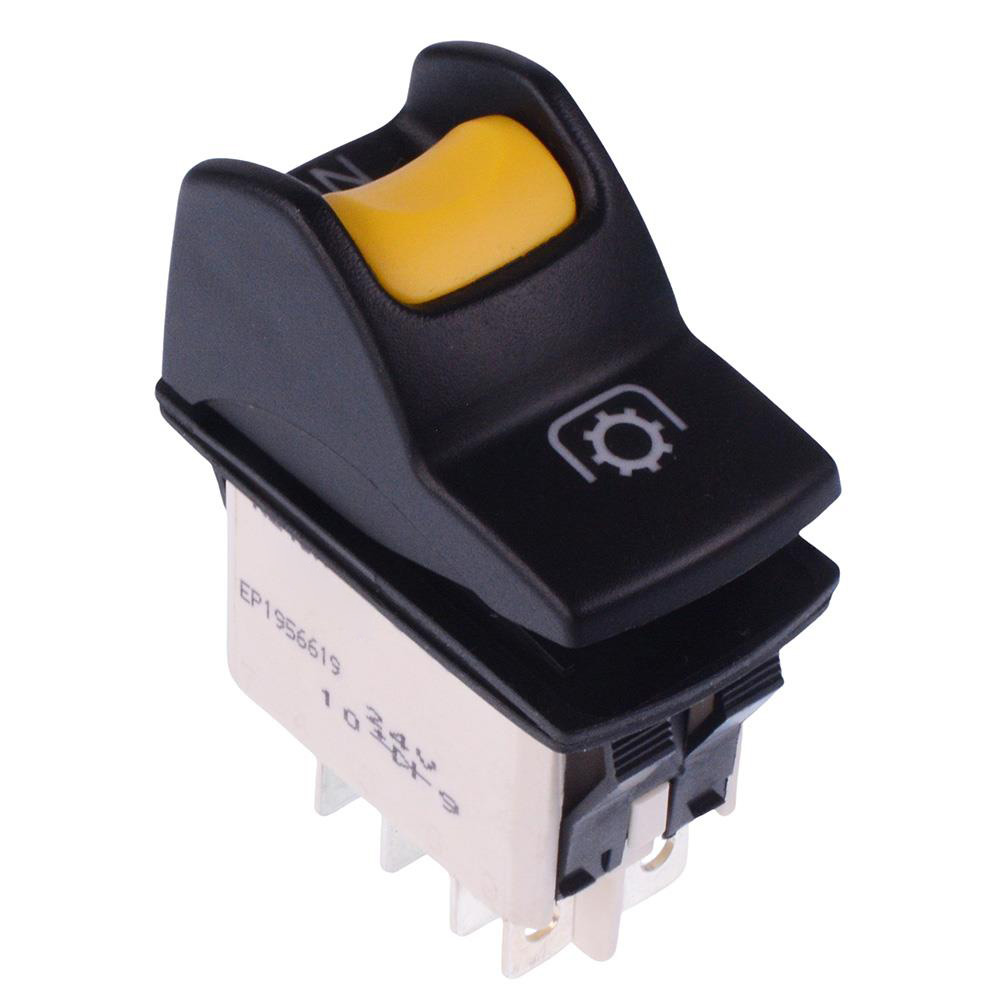

KL46CAKLG225N0160 On-On Yellow 24V Locking Power Rocker Switch DPDT IP68

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	10A 24VDC
Current Rating	10A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Yellow
Illumination Voltage	24VDC
Material	PA66
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	0.8-4.6mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KL46CAKLG225N0160 is a 24V power rower switch manufactured by socoje, featuring a locking mechanism to prevent against accidental operation. The switch features 24V yellow illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.

On-On operation

DPDT contacts

Yellow 24V illumination

IP68 protection rating

One protected position

6.35mm quick connect terminals

Compatible with U2292 and U3152 connector

Rating: 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
