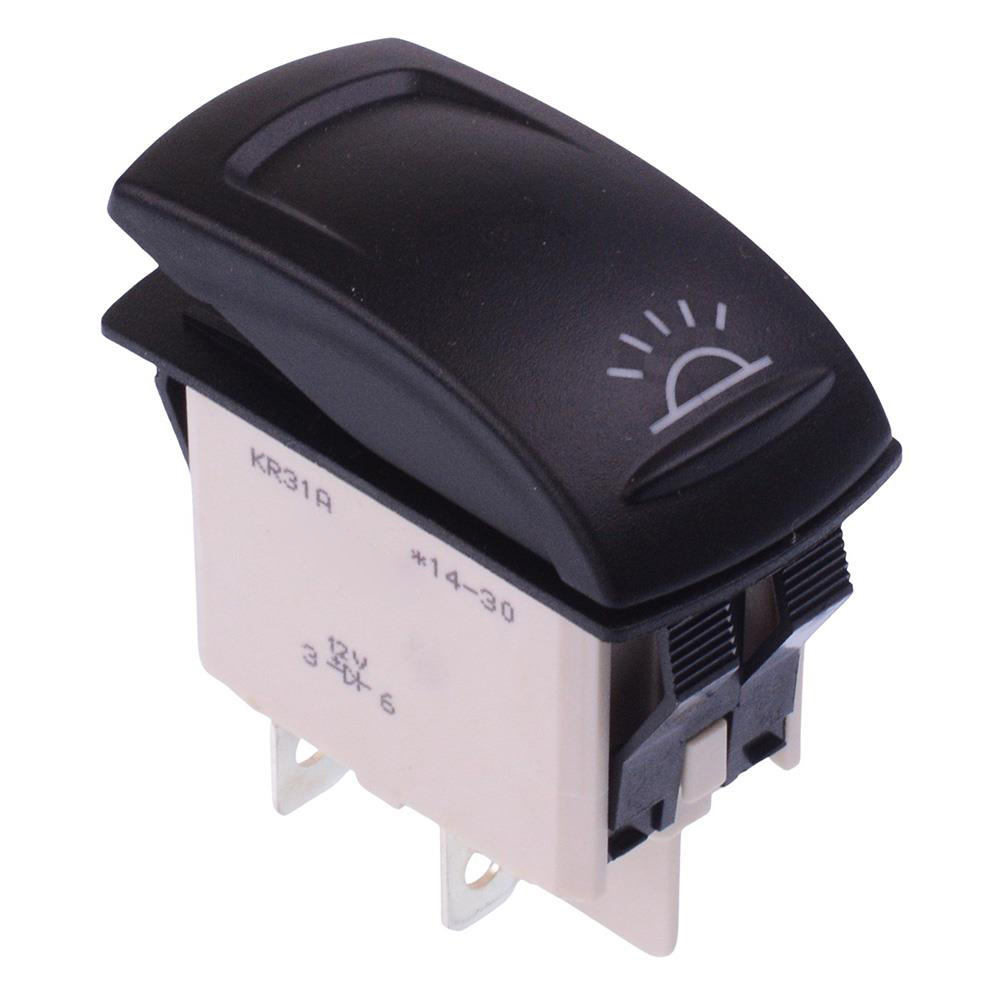

KR312AXFXD22N15XXXX On-Off Yellow 12V illuminated Automotive Rocker Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPST
Contact Material	Silver
Contact Rating	10A 24VDC
Current Rating	10A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Yellow
Illumination Voltage	12VDC
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	0.8-4.6mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KR312AXFXD22N15XXXX is an attractive rugged automotive rocker switch from the KR series by socoje, featuring 12V illumination and light symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

Universal light symbol

On-Off SPST contacts

Yellow 12V LED

Solder / quick connect terminals

Silver contacts

Rating: 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
