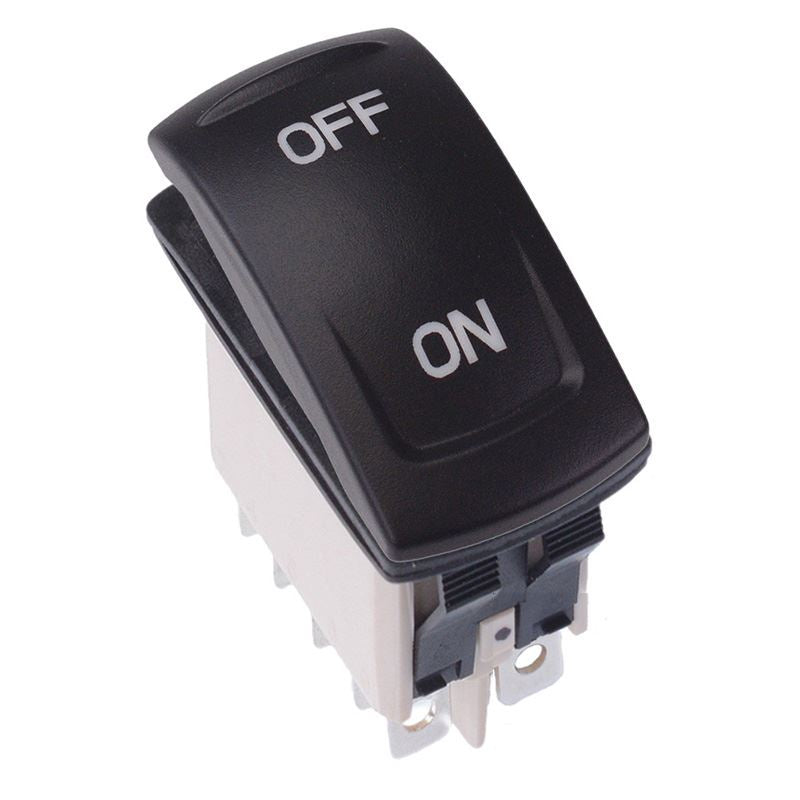

KR45CAKJJG22N02XX01 OFF ON Momentary Red 24V LED Automotive Rocker Switch DPDT IP68

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPDT
Contact Rating	5A 24VDC
Current Rating	5A
Illuminated	Yes
Illumination Voltage	24VDC
Material	PA66
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	2-3.5mm
Switch Operation	(On)-On
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KR45CAKJJG22N02XX01 is an attractive rugged automotive rocker switch from the KR series by socoje, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.

Momentary (On)-On DPDT contacts

Red 24V LED

illuminated symbols

Solder / quick connect terminals

10 terminals for use with U2292

Silver contacts

Sealed to IP68
