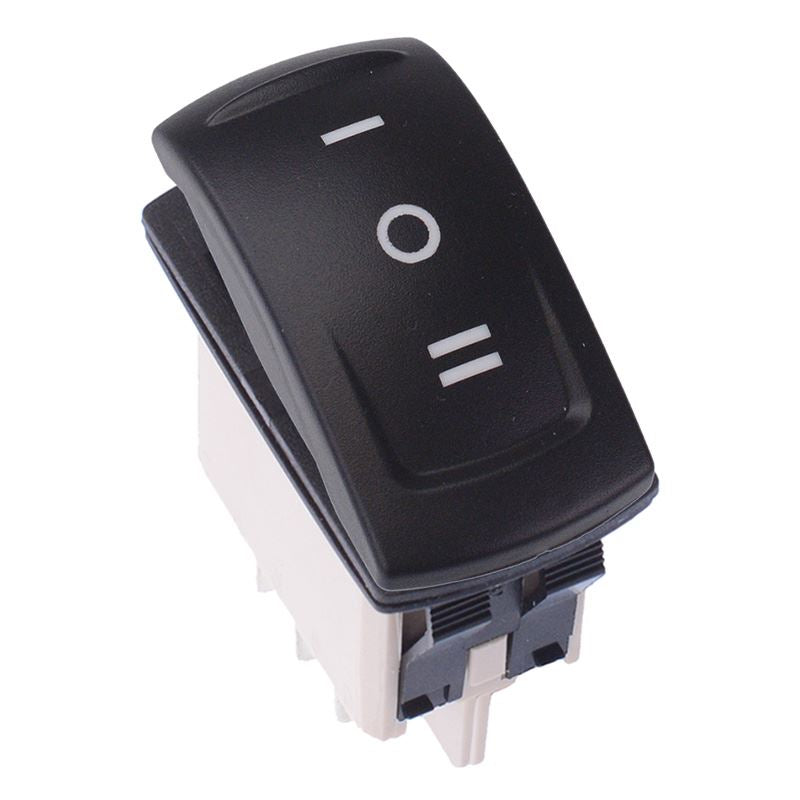

KR47CAKXXG22O040305 (On)-Off-(On) Momentary Automotive Rocker Switch DPDT IP68
from
$40.32
Ex Tax: $40.32
5 or more $35.89
10 or more $33.46
25 or more $31.45
50 or more $29.84
- Stock: In Stock
- Model: SCJ010751
- SKU: SCJ010751
Products Sold: 0
Product Views: 25
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Momentary |
Contact Configuration | DPDT |
Contact Rating | 5A 24VDC |
Current Rating | 5A |
Illuminated | No |
Material | PA66 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 3 |
Protection Level | IP68 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 2-3.5mm |
Switch Operation | (On)-Off-(On) |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
- Description
The KR47CAKXXG22O040305 is an attractive rugged automotive rocker switch from the KR series by socoje, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
Momentary (On)-Off-(On) DPDT contacts Solder / quick connect terminals 10 terminals for use with U2292 Silver contacts Sealed to IP68
