KSD302 Series termostato thermal switch 25a 125v 250 degree thermostat for water cooler
from
$1.10
Ex Tax: $1.10
- Stock: In Stock
- Model: SCJ2470039J
- Dimensions: 24.00cm x 10.00cm x 10.00cm
- SKU: SCJ2470039J
Products Sold: 0
Product Views: 130
Snap-Action Temperature Control
The KSD302 series of 3/4’’ Bimetal temperature controls base on proven reliability in a compact,versatile,cost-effective design.The snap action of the bimetal disc provides high-speed contact separations resulting in excellent life cycle characteristics at electrical loads up to AC110V-400V/15A-70A.
Switch Actions
The KSD302 disc thermostat is available in single throw(SPST) switch actions:
Automatic Reset-Can be built to either open or close its contacts on temperature rise.

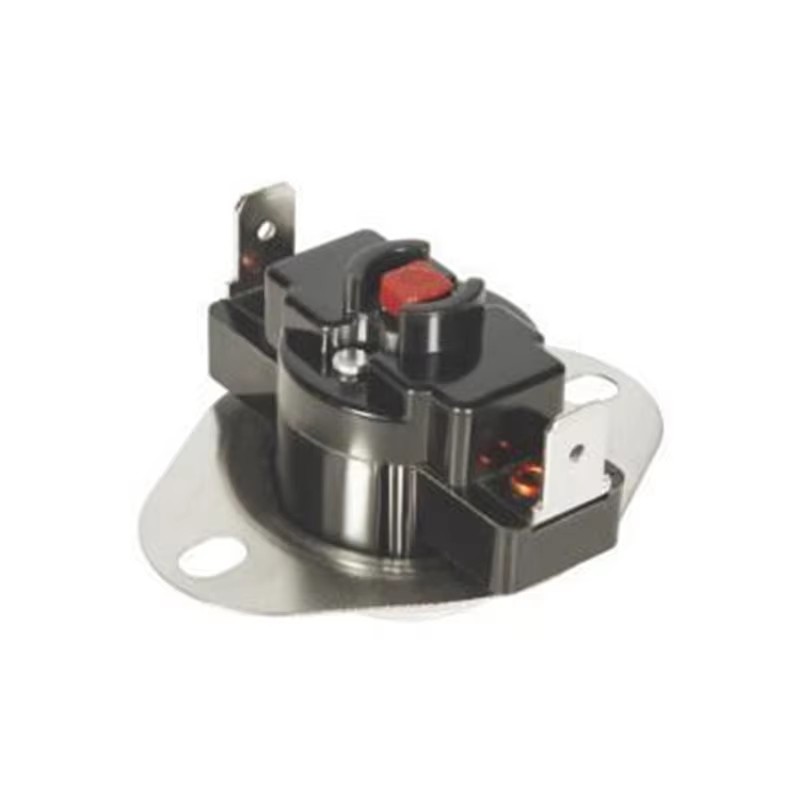

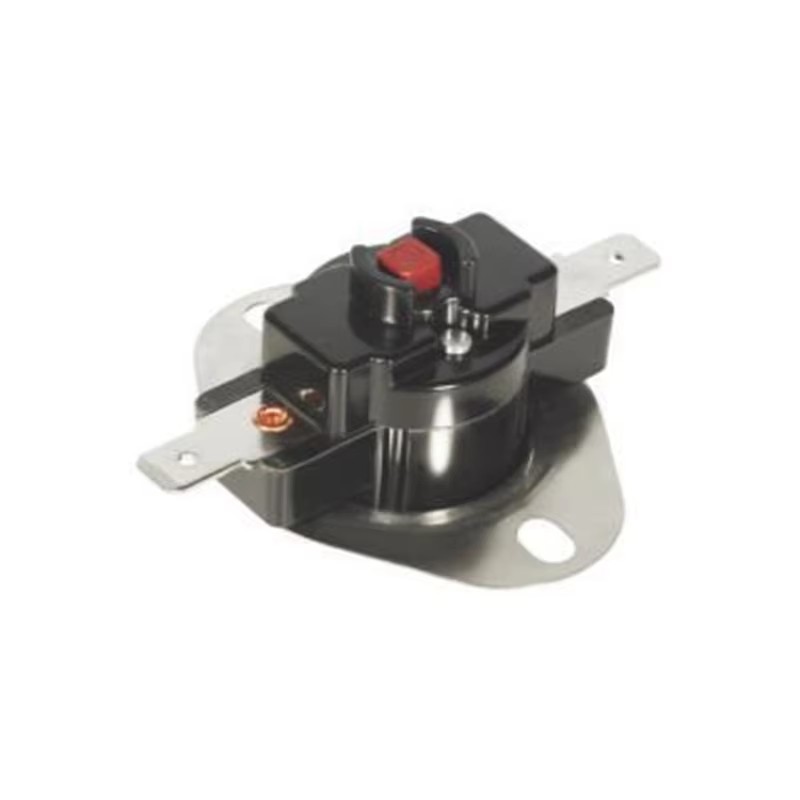

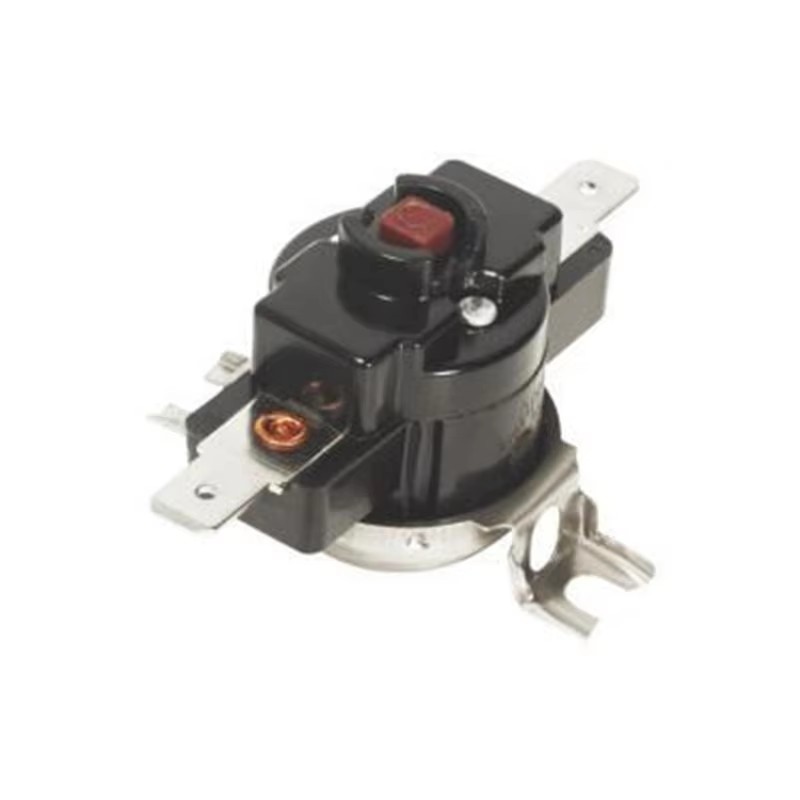

Manual Reset-Available with contacts that open on temperature rise.the contacts can be reset by depressing the button after the control has cooled down.
Action Temperature Range
Bakelite Body:-20℃---150℃
Ceramic Body:150℃-270℃
Ask a Question About This Product
- Description

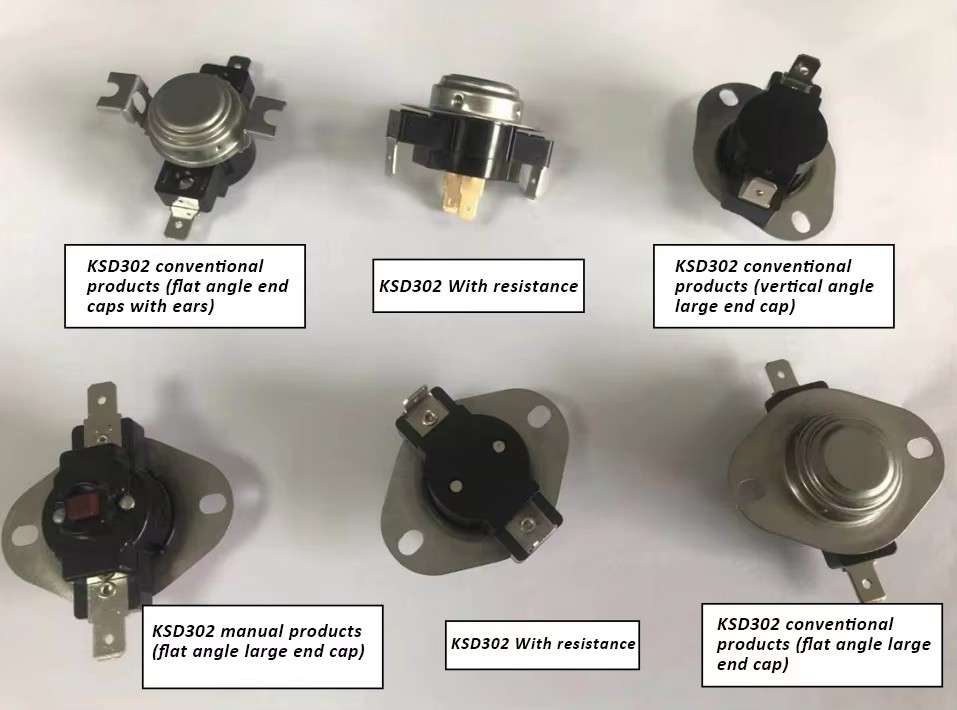

A variety of terminal and mounting configurations are available for maximum design flexibility.
The quality,reliability,affordability,versatility and word-wide agency approvals of the KSD30 series make it the best of choice for a wide variety to temperature control applications.
The dimensions for vertical angle conventional type

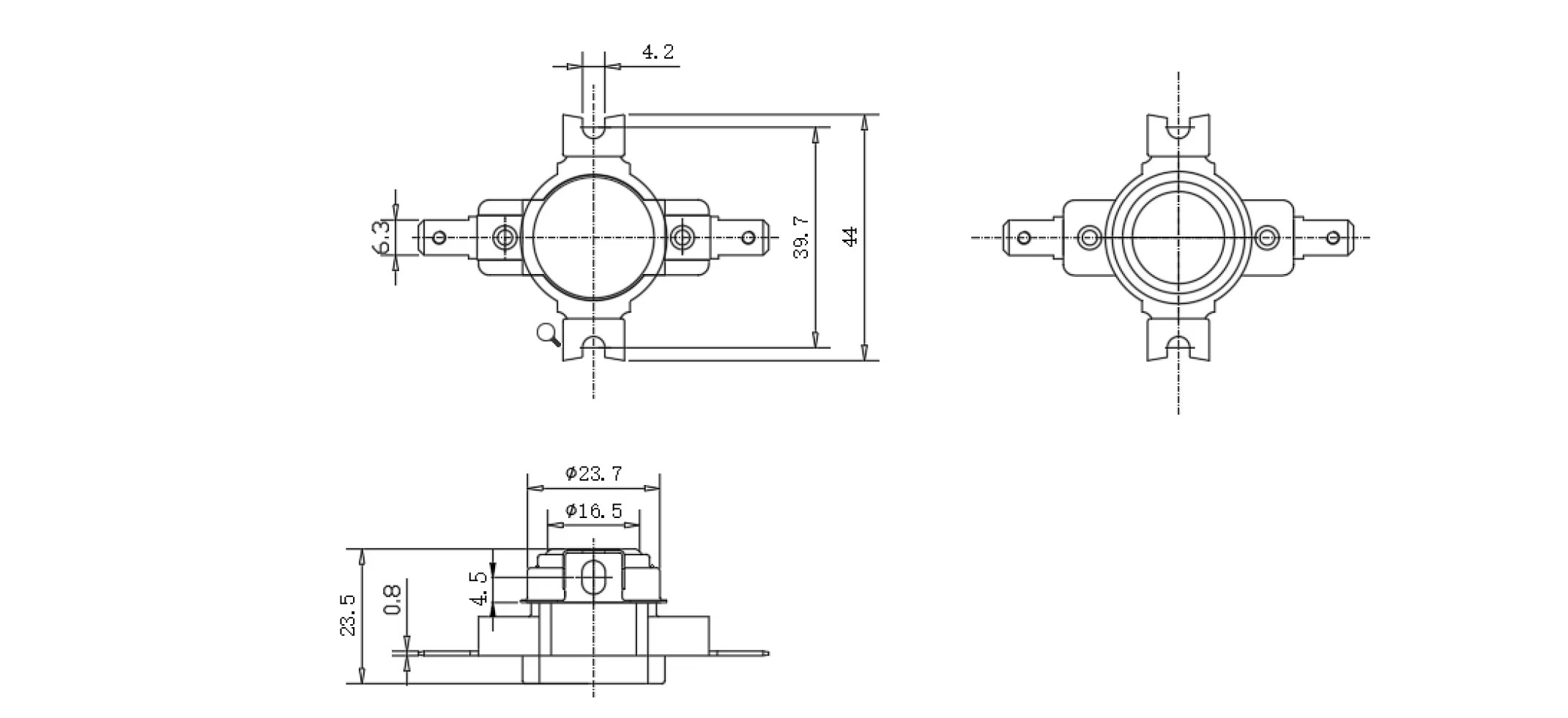

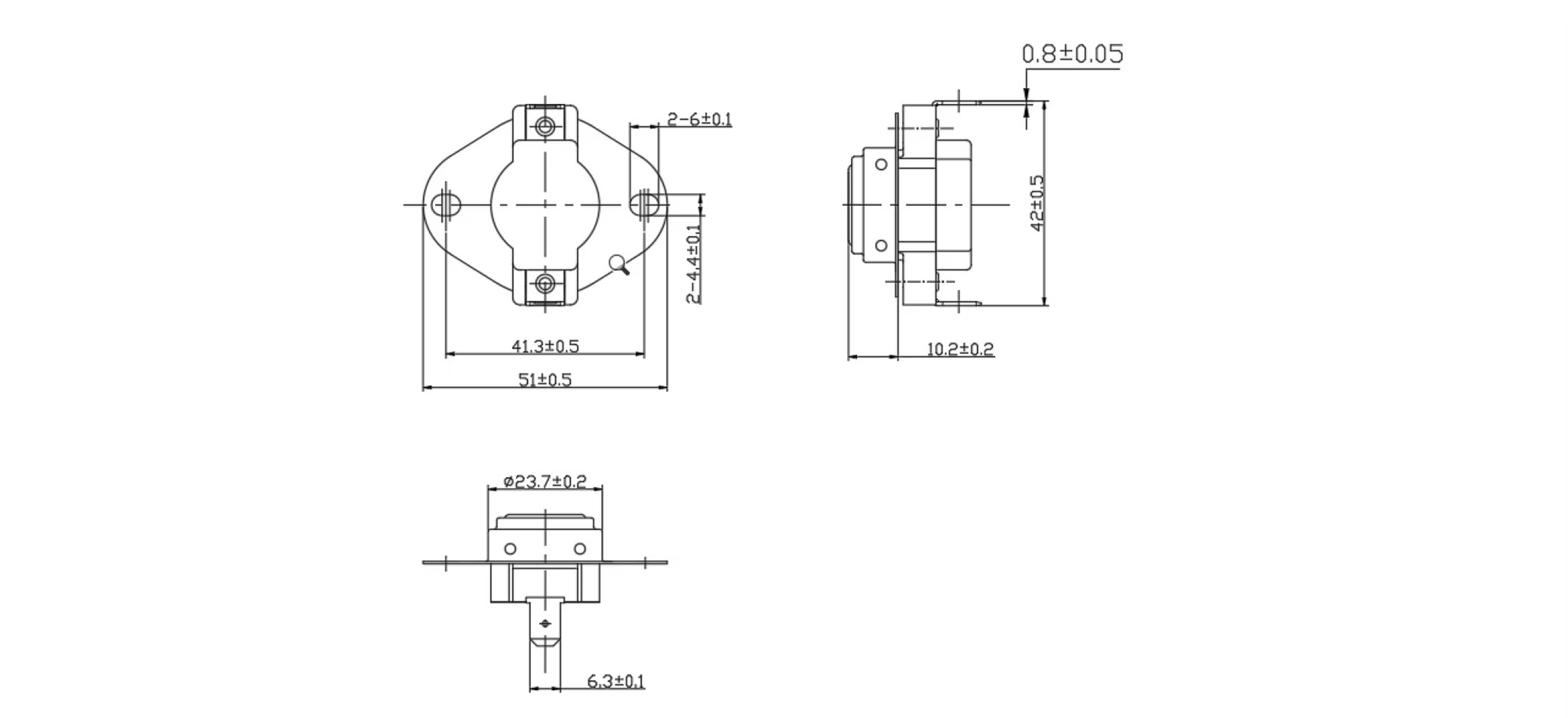

The dimensions for flat angle conventional type with ear

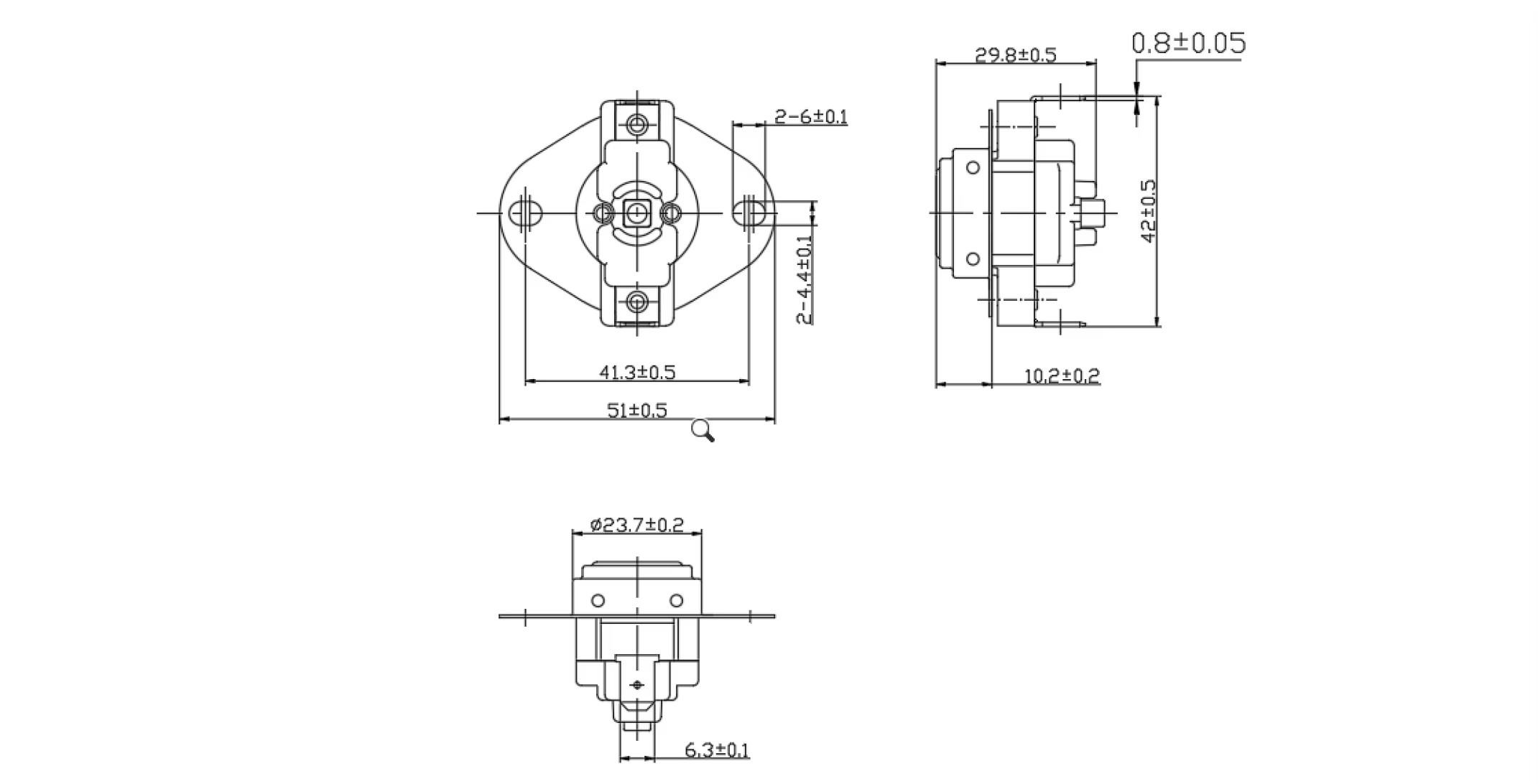

The dimensions for vertical angle manual type
