100W CO2 Laser Engraver and Cutting Machine

Buy Now

Specifications

attribute-list
Laser Power	100W
Working Area	35-1/2" × 23" (900 mm × 600mm)
Laser Type	CO2 Sealed Glass 10.64 um
COOLING TYPE	Circulating Water Cooling and Protection System
Worktable	± 20" Electric Up & Down Aluminum Platform
Engraving Thickness	0 - 3/8" (0 - 10 mm) depends on material
Cutting Thickness	0 - 3/8" (0 - 10 mm) depends on material
Locating Precision	± 0.01 mm
Resolution ratio	≤ 1,000 dpi
Min. Character Size	1 mm × 1 mm
Min. Character Letter	2 mm × 2 mm
Operating Temperature	41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface	USB 2.0
Max. CUTTING SPEED	15-3/4"/s (400 mm/s)
Max. ENGRAVING SPEED	23-5/8"/s (600 mm/s)
System Environment	Windows XP/2000/7/8/10
Graphic Format Supported	Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation	Up To 256 Colors

Description

35 ⁷/₁₆ x 23 ⁵/₈ Inches 100W CO2 Laser Engraver and Cutting Machine Ruida DSP RDWorks V8 Compatible and LightBurn Software 1 set

About this product

1. Laser Power for the laser cutter machine: CO2 Sealed Glass 100W

2. Working Area for the laser engraving cutting Machine : 35 ⁷/₁₆ x 23 ⁵/₈ Inch

3. Certification: FDA Certified

4. Power Supply: AC 110 V ± 10%, 60 Hz

5. System Environment: Windows XP/2000/7/8/10/11/12

Packaging Method	Wooden Crate
Machine Dimension	56" L × 40-3/8" W × 42-1/8" H (14,20 mm × 1,025 mm × 10,70 mm)
Machine Weight	-
Package Dimension	68-1/8" L × 45-5/8" W × 51-1/4" H (1,730 mm × 1,160 mm × 1,300 mm)
Package Weight	705 lbs (320 kg)

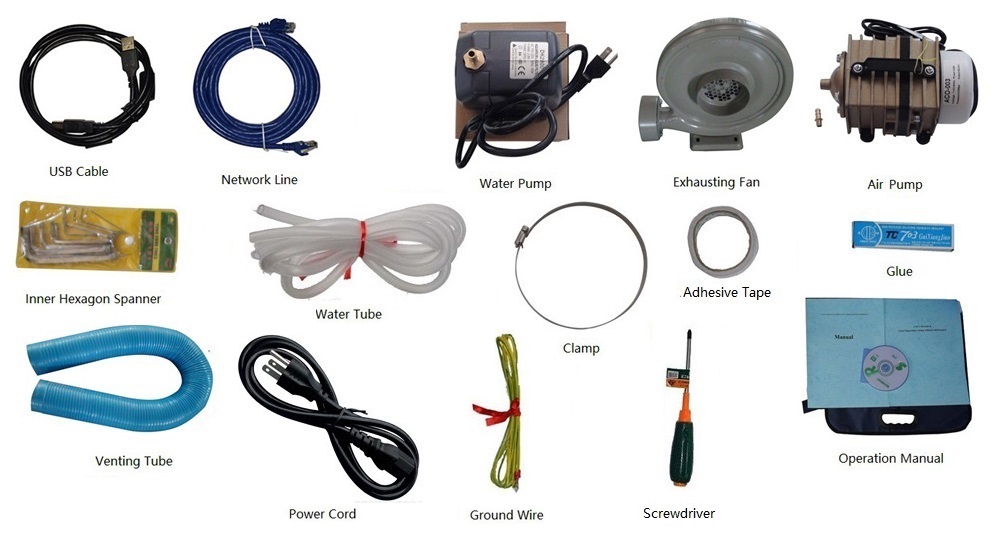

Package Included:

1 x CO2 Laser Engraver

1 x Air Pump

1 x Water Pump

1 x Set of Inner Hexagon Spanner

2 x Venting Tube

1 x Water Tube

1 x Screwdriver

1 x Power Cord

3 x Clamp

1 x Operation Manual

1 x USB Cable

1 x Ground Wire

1 x Screwdriver

1 x Glue

1 x Adhesive Tape

1 x Network Line

1 x Exhausting Fan

Considering voltage fluctuations in different areas. We strongly recommend that power exhausting fans individually instead of plug on the machine.

35 ⁷/₁₆ x 23 ⁵/₈ Inches 100W CO2 Laser Engraver And Cutter Machine Laser Engraving Cutting Machine

Ruida DSP RDWorks V8 Compatible and LightBurn Software

This 100W CO2 laser engraver is a ideal product to process wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass. Please notice that metal materials are excluded. It is a suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys and etc.
This machine is widely used for woodworking, textile cutting, industrial marking, signmaking, medical part marking, architectural modeling, specialty advertising, plastics cutting, rubber stamps, picture framing, gift manufacturing, gasket cutting, puzzles, cabinetry, personalized pens, games & toys, music boxes, light switch plates, jewelry boxes.

Features:

1. Quality CNC machined parts for durability Guaranteed

2. Upgraded control board for more accurate currency adjustments

3. Powerful exhaust fan for fumes and smoke extraction

4. USB port to connect the engraver

5. Windows XP/2000/7/8/10/11/12

6. FDA certified
