13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set

13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set
0 reviews - Write a review
from
$3,399.01
Ex Tax: $3,399.01
  • Stock: In Stock
  • Model: SCJ004423
  • SKU: SCJ004423
Products Sold: 0
Product Views: 140
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Max. Swing over Bed13" (330mm)
Max. Swing over Carriage8-21/32" (220mm)
Bed Width6-19/64" (160mm)
Spindle TaperMT-5
Chuck6" 3-jaw manual chuck
Distance Between Centers29-1/2" (750mm)
Longitudinal travel26-49/64" (680mm)
Cross travel6-19/64" (160mm)
Number of Spindle Speeds12
Spindle Bore1-1/2" (38mm)
Range of Spindle Speeds60 - 1,800 rpm
Tailstock Quill Diameter1-17/64" (32mm)
Tailstock Quill TaperMT-3
Tool Post Travel3-15/16" (100mm)
Range of Cross Feed0.0018 - 0.0236 ipr (0.045 - 0.6 mm/r)
Range of Longitudinal Feed0.0039 - 0.059 ipr (0.1 - 1.5 mm/r)
Tailstock Quill Travel3-11/32" (85mm)
Tool Size5/8" × 5/8" (16 × 16 mm)
Number of Inch Threads23
Range of Inch Threads9 - 40 TPI
Number of Metric Threads15
Range of Metric Threads0.5 - 4 mm
Steady Rest Ability1-37/64" (40mm)
Follow Rest Ability1-37/64" (40mm)
AC Power Input110/220V, 1-phase, 60Hz(Prewired 110V,1-phase, 60Hz)
Rated current14.4A/110V 7.2A/220V
Spindle Motor1.5 hp (1.1 kW)
  • Description
13'' X 30'' Socoje Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6" 3-jaw Chuck With Stand 110V/220V BL330E-1 1set

About this product

1. Metal gear drive head stock for quick change spindle speed
2. All gears in headstock are hardened and precision ground
3. Powerful 1.5 HP AC motor
4. Milling Machine 5-2/5" wide two precision’V’- beds are hardened and ground
5. Benchtop lathe 1.5" diameter spidnle bore with MT5 spindle taper
6. Metal lathe 1.5" diameter spindle bore with MT5 spindle taper

Be deploied 2 axis DRO

 Toread the rate of feeding or machining

accurately,2 axis or 3 axis ditial read-out

areavailable. It is deploied with 2 or 3 axis

gratingscale and display in metric/inch

conversion

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

1.5" Spindle Bore

MT5 spindle nose taper with dig diameter 1-1/2" spindle bore and ground gears in head stock run in oil bath with lo noise.

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Hardened two ‘V’ bed

MT5 spindle nose taper with dig diameter 1-1/2" spindle bore and ground gears in head stock run in oil bath with lo noise.

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

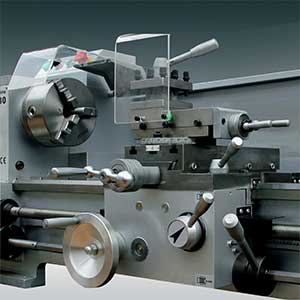

Featured carriage and apron

Full featured carriage and apron assemblies travel smoothly on finely finished bed, providing super accurate and finishes.

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Profession compound assembly

T-slotted compound side with 4-stations tool-post, unique and safety handle easy to operate longitudinal and cross feeding.

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Tailstock adjustment

Tail stock with V slide for lateral adjustment, adjustable offset by ± 5 mm for taper turning, sleeve and hand wheel.

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Steady & follow rest

Also includes fine-making steady rest and follow rest for assistant producing non-standard or long-thin work-piece and high accurate.

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

The list some rates of spindle speed while machining workpeice for reference only.

13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

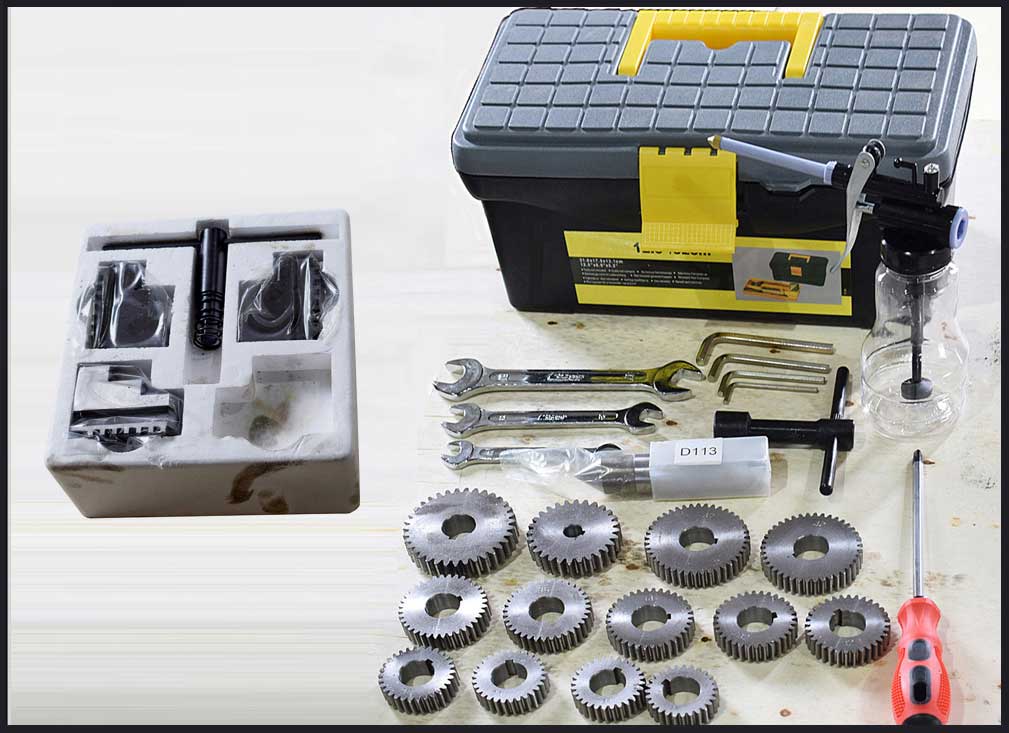

Standard Accessories Inludes

  • Self-centering 3 jaw chuck with reverser jaw & key
  • Dead center MT3
  • Change gear
  • Inner heaxgonal wrenches
  • Open end wrenches
  • Tool-post wrench
  • Oil gun
  • Screwdriver
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Independent Four Jaw Chuck (optional accessories)

Type   Bore     Max Clamp   Max Speed  Weight
                 (mm)         (mm)              (rpm)            (kg)
K72-125    30             57                 4200                 5
K72-160    55             80                 3800                 9
K72-200    70            100                2100                15
K72-250   100           130               1800                 23
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

HSS Turning Tool (11pcs./kit (optional accessories)

Size: 10x10mm / 12x12mm / 16x16mm
1. Part-off cutter  7. 90º exter.turning cutter
2. Exter. fine-thread cutter  8. 75º exter. turning cutter
3. 90º exter. turning cutter  9. Left exter. turning cutter
4. 90º end cutter  10. Inter.turning cutter
5. Exter. wide slot cutter      11. Bore-through cutter
6. 45º end cutter
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Carbide Insert Tool Holders (9pcs./kit) (optional accessories)

Size: 12x12mm / 16x16mm / 20x20mm / 25x25mm
1. Part-off cutter     6. 45º boring cutter
2. Exter. fine-thread cutter     7. 90º inter.boring cutter
3. 75º exter. turning cutter     8. 75º inter. boring cutterer
4. 45º end cutter     9. Internal fine-thread cutter
5. 90º exter.turning cuuter
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Ti Carbide Insert Tool Holders (7pcs./kit (optional accessories)

Size: 12x12mm / 16x16mm / 20x20mm / 25x25mm
1. Part-off cutter           5. 45ºend exter. turning cutter
2. Exter. fine-thread cutter           6. 75ºexter. turning cutter
3. 90º exter. turning cutter           7. Internal fine-thread cutter
4. Left exter. turning cutter
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

3-Axis Digital Read Out Displayer (optional accessories)

*  Precision accurancy *  Radius/diameter toggle
*  Storatge for 10 tools *  mm/inch conversion
*  Lower error rate         *  resolution 0.01/0.005mm
*  Dafault coordinates         *  Operator-specific features
*  Increased productively         *  significant time save
Scales measuring length from 4" -120" are availible as order
13'' X 30'' Metal Bench Lathe Geared Head 1800 RPM 1.5HP (1100W) With 6

Piston Type Quick Change Tool Post (optional accessories)

 Type          Swing diameter        Weight
  250-100    300mm(12")         2.23kg
  250-200    250-375mm(10-15")       4.00kg
  250-300    325-450mm(13-18")       5.72kg
