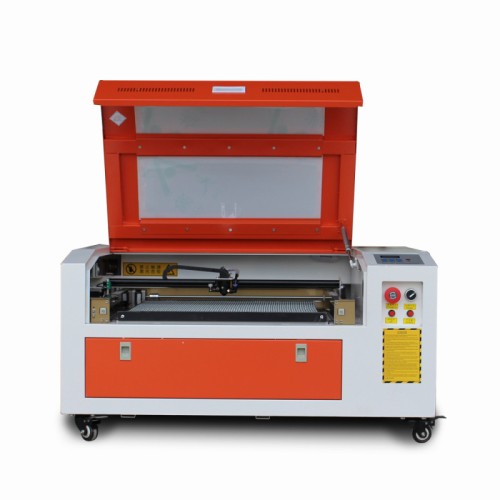

50W 5040 Laser Engraving Machine 20" x 16" Cutter for Wood Acrylic FDA 1pc

from

$910.00

Ex Tax: $910.00

Products Sold: 0

Product Views: 169

Qty

attribute-list
Voltage	1 phase 110 V ± 10%, 60 Hz
Laser Power	50w
Power	300w
Working Area	20" x 16 " (500 x 400mm)
Laser Type	CO2 Sealed Glass 10.64 um
Laser Tube Brand	SOCOJE
Water Chiller	No
Worktable	Honeycomb (Electric Lifting platform)
Control system	M2
Lifting Worktable	Yes (Electric Lifting platform)
Motor & Driver	42 Stepper
Worktable Lift Depth	5-7/8" (150mm)
Engraving Thickness	0 - 3/16" (0 - 5 mm) depends on material
Max. Engraver Speed	23-5/8 inch/s (600 mm/s)
Locating Precision	± 0.0004" (0.01mm)
Resolution ratio	≤ 1,000 dpi
Rotation Axis	Options
Focus Mode	Red Light Focusing
Min. Character Letter	1 mm × 1 mm
Operating Temperature	41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface	USB 2.0
Max. CUTTING SPEED	4 inch/s (100 mm/s)
System Environment	Windows XP/2000/7/8/10
Guides	Wheel guide
Color Separation	no
Max. Current	6A
Graphic format supported	Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Cutting thickness	0 - 25/64" (0 - 10 mm) depends on material
Life time of laser tube	2000-2500 hours
Certificate:	CE, FDA
Cooling Mode	Water Cooling
Water Pump	Yes
Air Pump	Yes

50W 5040 Laser Engraving Machine 20" x 16" Cutter for Wood Acrylic FDA 1pc

About this product

1. Laser Power: CO2 Sealed Glass 50W

2. Working Area: 20" x 16"

3. Certification: FDA Certified

4. Power Supply: AC 110 V ± 10%, 60 Hz

5. System Environment: Windows XP/2000/7/8/10

6. Electric Lifting platform

7. Control System: M2

8. Red light indicates positioning

9. Air pump

1) Overall use of industrial design spare parts, quality stability.

2) Porcelain oxidation guide, wheel structure, low resistance, easy to debug

3) Using M2 Nano motherboard, Direct output using CorelDraw software

4) Adopt open design, can process the sheet of longer than 100cm, can before and after through processing.

5) With moving universal wheel, removable, small package size, low shipping cost, high cost performance.

This machine has red and white models and blue and white models, the spot is red and white models, there is no difference in description page color

Show details

Open design,can process longer items extended on the front of the machine

50W 5040 Laser Engraving Machine 20" x 16" Cutter for Wood Acrylic FDA 1pc
