24 inch x 36 inch Smart Desktop CNC Router 6090 For Advertising, Woodworking
from
$3,990.00
Ex Tax: $3,990.00
- Stock: In Stock
- Model: SCJ004038
- SKU: SCJ004038
Products Sold: 0
Product Views: 177
Ask a Question About This Product
- Description
About this product
1,The machine is made of aluminum alloy
2,High repeat accuracy 0.02mm
3,Using high precision ball screw
4,Using 3 limit switches to protect machine
5,GRBL control , easy to use operating software

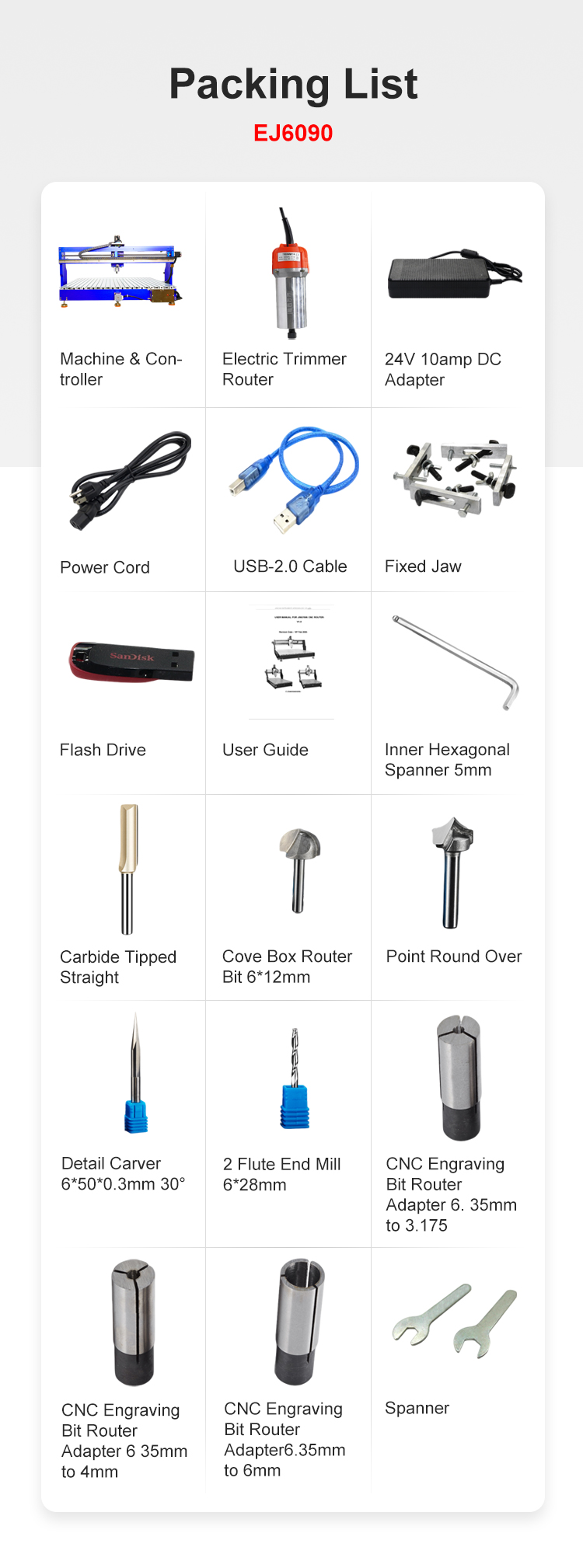

Packing List
1.Machine & Controller 1PCS
2.Electric Trimmer Router 1PCS(Free gift without warranty）
3.24V 10A DC Adapter 1PCS
4.Power Cord 1PCS
5.Fixed Jaw 4PCS
6.FlashDrive 1PCS
7.UserGuide 1PCS
8.Inner Hexagonal Spanner 5mm 1PCS
9.USB Cable 1PCS
10.TOOLS :
Carbide Tipped Straight Plunge Router Bit 1/4 Dia. x2"x1/4 Shank 1PCS
Cove Box Router Bit 6X12mm 1PCS
Point Round Over Groove Bit 6X16mm 1PCS
Detail Carver 6X50X0.3mm 30° 1PCS
2 Flute End Mill 6X28mm 1PCS
CNC Engraving Bit Router Adapter 6.35mm to 3.175mm 1PCS
CNC Engraving Bit Router Adapter 6.35mm to 4mm 1PCS
CNC Engraving Bit Router Adapter 6.35mm to 6mm 1PCS
Thank you for your selection of JingYan CNC Router.Our router is small but widely used in
carving and machining a large variety of projects made from wood, softmetal, and plastic.The
machine adopts high-grade aluminum processing, and adopts imported precision ball screw
machining accuracy can be guaranteed.
The machine is provided with a wood trimmer. You need to fix it to the holder at first. Some
other wood trimmer with the same size can work with our CNC. The machine has three limit
switches to ensure the safety and stability of the machine. The controller is very small. It
use GRBL controller board. Normally any PC which install GRBL software can connect with our
machine via usb port. The controller reserves one auto-check port for you to use z axis auto
check. Simply supply a PC computer with USB 2.0 port and any of the routers listed, connect the
USB cable to the controller box and load the software.
