20W Fiber Laser Engraver Marking Machine For Metal With PC, FDA
from
$4,299.00
Ex Tax: $4,299.00
- Stock: In Stock
- Model: SCJ004110
- SKU: SCJ004110
Products Sold: 0
Product Views: 218
Ask a Question About This Product
- Specifications
attribute-list | |
Product name: | Fiber laser marking machine |
Laser Wavelength | 1064nm |
Marking Area | 4.3''x 4.3''in(110×110mm) |
Average output power | 20W |
Beam Quality | M2:1.2 |
Maximum marking speed | 472.44''in/s(12000mm/s) |
Power supply | AC220V/50HZ/2A |
Repetition frequency | 20KHz-200KHz |
Adjustment range | 5%-100% |
Minimum character | 0.007''x0.007''in(0.2mm x 0.2mm) |
Cooling System | Air cooling |
Engraving Depth | 0.0003''x0.003''in(0.01-1.0mm)(Depending on the material ) |
Repeat accuracy | 0.0007''in(0.02mm) |
Minimum line width | 0.0005''in(0.013mm) |
Operating Temperature | 5℃-43℃ |
Control interface | USB |
Continuous working time | 24h |
Equipment working environment | Clean or less dust |
Laser safety grade | CLASSIV |
System protection level | IP54 |
- Description
About this product
1.Output power: 20W , Marking area: 4.9'' x 4.9''( 110mm x 110mm)
2.The device supports: Win7, win10, 32Bit & 64Bit
3.Include a lenovo laptop, 25 inches industrial touch screen, support 24 hours continuous work.
4.Control software: EzCad,powerful edit function, easy to use.
5.Suitable for fast marking of various big metal parts like stainless steel, aluminum, brass etc.

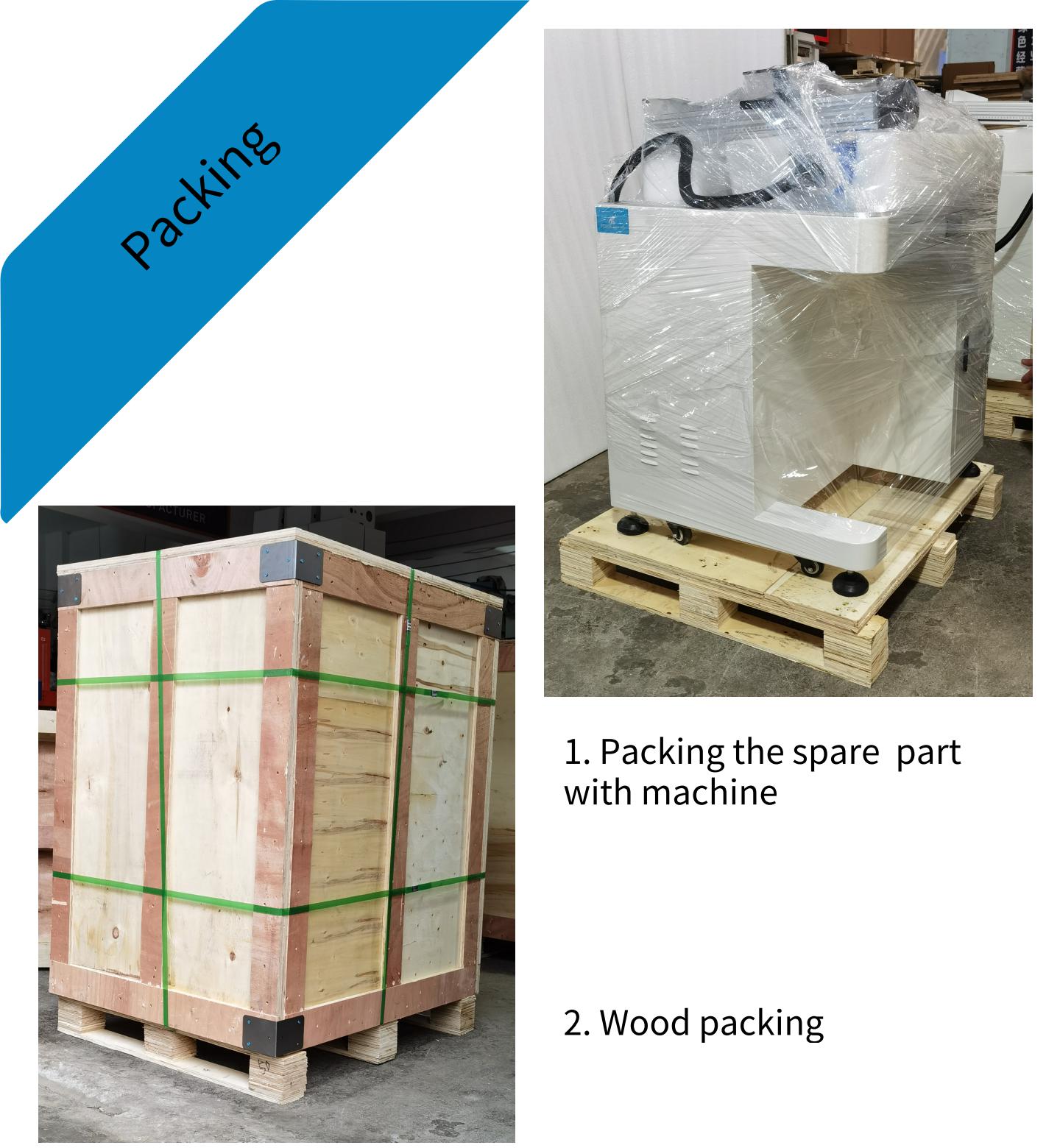

Packaging Method | Wooden |
Package Dimension | 31-1/2" L × 25-3/5" W × 57H (1270 mm × 960 mm × 810 mm) |
Package Weight | 302 lbs (137kg) |
20W Fiber Laser Marking Machine
Product description
Laser engraving machie, is using the laser beam to marking a permanent mark on a varity of different material surface. Or throgh the light of the physical changes in the surface material, "carved" traces, or through the light burning part of the material, showing the required etching pattern, text, bar code, and other types of graphics. It can be widely used in many fields, such as intergrated circut chip graphics, computer accessories, industrial bearings, watches, electronic and telecommunication products.
Features:
1. FDA certified
2. Easy operation and maintance.
3. Adjustable marking height and position, fiexible.
