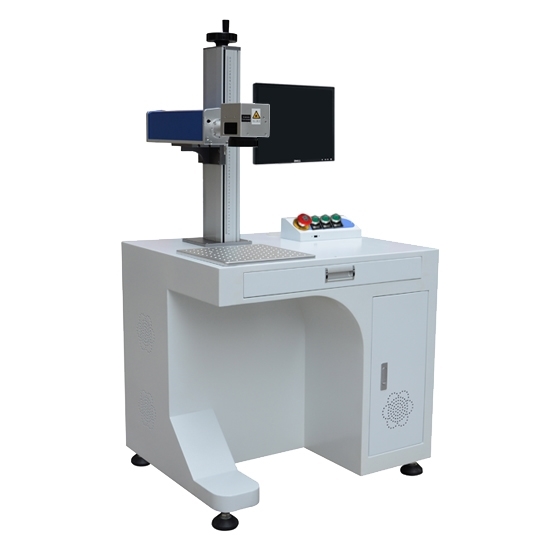

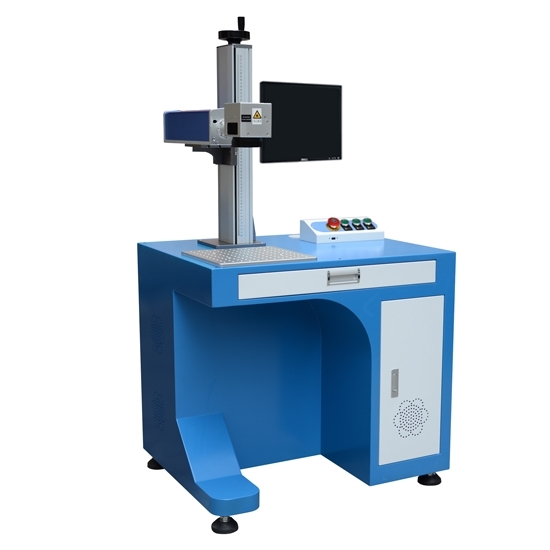

20w Economic Fiber Laser Marking Machine
from
$15,308.00
Ex Tax: $15,308.00
- Stock: In Stock
- Model: SCJ009821
- SKU: SCJ009821
Products Sold: 0
Product Views: 196
Ask a Question About This Product
- Description
Brief
Fiber laser marking machine in, faster marking speed, more sophisticated engraving effect, 20w output power, desktop type design, maintenance-free.
Description
Fiber laser marking system features:
- Desktop type is good for industrial factory.
- Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
- 100,000+ hours of laser life, reducing costs and production downtime.
- 110mm2 mark field (other sizes available).
- No consumables and minimal maintenance help reduce operating costs.
- Air-cooled 10W-20W models.
- Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
| Basic Information | ||
| Model | SCJ009821 | |
| Weight | 176.37 lbs. (80 kg) | |
| Dimension | 800mm x 650mm x 1430mm (31.50" x25.59"x56.30") | |
| Warranty | 2 Years | |
| Distance (scanner to working plateform) | 97~387mm (3.82" x 15.24") | |
| Platform size | 300mm x 300mm (11.81" x 11.81") | |
| System Technical Specifications | ||
| Laser type | Fiber; Ytterbium doped | |
| Output power | 10W, 20W | |
| Power requirements | 10W 20W: 220 V AC, 16 A, 50/60 Hz | |
| Wavelength | 1070 nm | |
| M2 | <1.4 | |
| Operation mode | Pulsed | |
| Pulse rep rate | 20-80 kHz | |
| Cooling | 10-20W: Fan assisted air cooling | |
| Scanning method | XY galvanometer | |
| Max line speed | 7,000 mm/sec | |
| Controls | LEC 1 industrial computer based controller | |
| Communications | USB ports, Ethernet, EtherNet/IP™, RS232 | |
| Documentation | USB flashdrive with operator's manual and integration guide; Online video troubleshooting | |
| Lens Configurations | ||
| Lens | Marking field | Focal length |
| 100mm | 65mm x 65mm (2.5" x 2.5") | 97mm (3.82") |
| 160mm | 110mm x 110mm (4.3" x 4.3") | 175mm (6.89") |
| 254mm | 175mm x 175mm (6.9" x 6.9") | 296mm (11.65") |
| 330mm | 228.6mm x 228.6mm (9" x 9") | 387mm (15.23") |
Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.
Tips: The difference between fiber laser marking machine and CO2 laser marking machine
The difference of the applicable material:
- Fiber laser marking machine: metal and several non-metallic materials, high hardness alloy, oxide, electroplate, coating film, ABS, epoxy resin, printing ink, engineering plastic and so on.
- CO2 laser marking machine: suitable for paper, leather, cloth, polymethyl methacrylate, epoxy resin, acrylic, wool product, plastic, ceramic, crystal, jade, bamboo and wood product.
The difference of the performance parameters and characteristics:
- Fiber laser marking machine: with high electro-optical conversion efficiency, the electric consumption is no more than 500W for the whole machine, which is 1/10 of the lamp pumping laser marking machine, so that it will save the energy greatly. It has high processing speed, which is 2-3 times of the traditional marking machine. The operation life of its laser lasts for 100000 hours.
- CO2 laser marking machine: with a large laser power, it is suitable for several non-metallic products to be engraved and cut. The operation life of its laser lasts for 20000-30000 hours.
