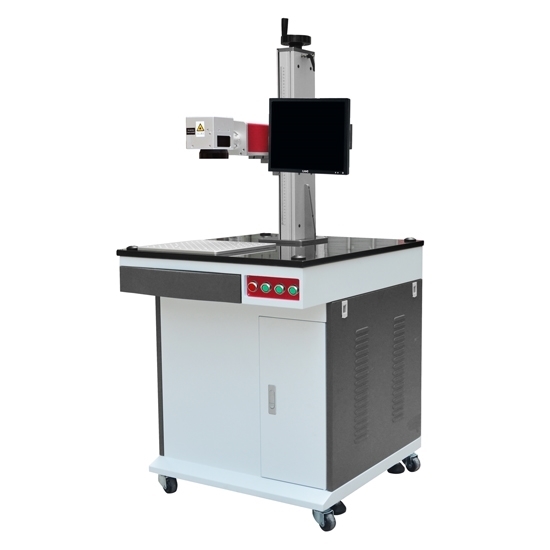

20w Economic Movable Fiber Laser Marking Machine
from
$16,462.00
Ex Tax: $16,462.00
- Stock: In Stock
- Model: SCJ009822
- SKU: SCJ009822
Products Sold: 0
Product Views: 183
Ask a Question About This Product
- Description
Brief
Favorable price fiber laser marking machine, faster marking speed, more sophisticated engraving effect, 20w output power, wheels make more flexible and movable, maintenance-free.
Description
Fiber laser marking system features:
- Marble platform for high accuracy marking.
- Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
- 100,000+ hours of laser life, reducing costs and production downtime.
- 110mm2 mark field (other sizes available).
- No consumables and minimal maintenance help reduce operating costs.
- Air-cooled 10W-20W models.
- Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
| Basic Information | ||
| Model | SCJ009822 | |
| Weight | 220.46 lbs. (100 kg) | |
| Dimension | 600mm x 750mm x 1430mm (23.62" x29.53"x56.30") | |
| Warranty | 2 Years | |
| Distance (scanner to working plateform) | 97~387mm (3.82" x 15.24") | |
| Platform size | 300mm x 300mm (11.81" x 11.81") | |
| System Technical Specifications | ||
| Laser type | Fiber; Ytterbium doped | |
| Output power | 10W, 20W | |
| Power requirements | 10W 20W: 220 V AC, 16 A, 50/60 Hz | |
| Wavelength | 1070 nm | |
| M2 | <1.4 | |
| Operation mode | Pulsed | |
| Pulse rep rate | 20-80 kHz | |
| Cooling | 10-20W: Fan assisted air cooling | |
| Scanning method | XY galvanometer | |
| Max line speed | 7,000 mm/sec | |
| Controls | LEC 1 industrial computer based controller | |
| Communications | USB ports, Ethernet, EtherNet/IP™, RS232 | |
| Documentation | USB flashdrive with operator's manual and integration guide; Online video troubleshooting | |
| Lens Configurations | ||
| Lens | Marking field | Focal length |
| 100mm | 65mm x 65mm (2.5" x 2.5") | 97mm (3.82") |
| 160mm | 110mm x 110mm (4.3" x 4.3") | 175mm (6.89") |
| 254mm | 175mm x 175mm (6.9" x 6.9") | 296mm (11.65") |
| 330mm | 228.6mm x 228.6mm (9" x 9") | 387mm (15.23") |
Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.
Tips: How to regulate the focal distance of the laser marking machine?
- Rising and falling the working platform
From the perspective of the market, the rising and falling of the working platform is the most-frequently used approach at present. It has simple principle and cheap manufacturing price. The revolving pulley is mainly used as the medium of moving up and down. By matching a guide pipe and a nut revolving component, the angle will be regulated through the revolving controlling button on the platform, thus achieving the regulation of the focus length. - Rising and falling the resonant cavity
The rising and falling of the resonant cavity is to make use of the shape and relatively position of the two mirrors of the resonant cavity inside the laser marking machine to have light source reflection. The light reflection of the resonant cavity is also divided into a concave cavity and a convex cavity. No matter what kind of resonant cavity is used, it is for the focusing as well as the light beam rising and falling of the laser marking machine.
