Dust Extraction Laser Engraving Fume Extractor For Co2 Laser Cutter Machine Laser Marking Machine
from
$3,399.00
Ex Tax: $3,399.00
- Stock: In Stock
- Model: SCJ004135
- SKU: SCJ004135
Products Sold: 0
Product Views: 175
Ask a Question About This Product

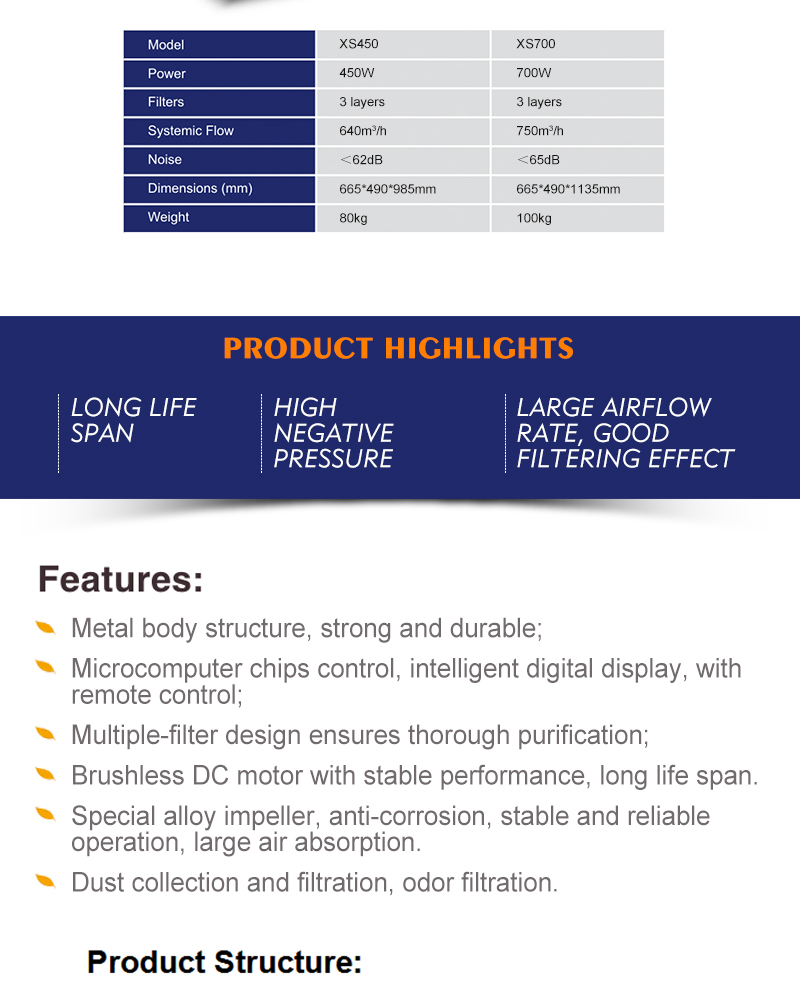

- Specifications
attribute-list | |
Sound Level dBA | 62 dB |
Filter layer | 3 Layers |
Filter Sizes | Fire prevention mesh: 15.3 x 9 x 2 Inch; Pocket Filter: 10.5 x 15 Inch; 18 layers One-piece Filter Combination: 17.7 x 14.6 x 11.8 Inch; |
Remote Control | Included |
Power Source | 450W |
Air Volume | 640 m3/h |
Gross Weight | 176 LB |
Cabinet Dimensions | 26.2 x 19.3 x 38.8 Inch |
Flexible hose | Diameter 3.9 inch x Length 15.8 Inch |
Electrical | 110V |
MOTOR | Brushless |
Package Dimensions | Cabinet : 23 x 27 x 46 Inch Parts: 16 x 8 x 11 Inch |
Packing List | Main Unit: 1 piecePower Cord: 1 pieceFlexible Hose: 1 pieceOperation Instruction: 1 pieceFire prevention mesh: 1 piece (1pc inside machine)Pocket Filter: 1 piece (inside machine)One-piece Filter Combination: 1 piece (inside machine)Remote Control: 1 piece (inside machine) |
- Description
About this product

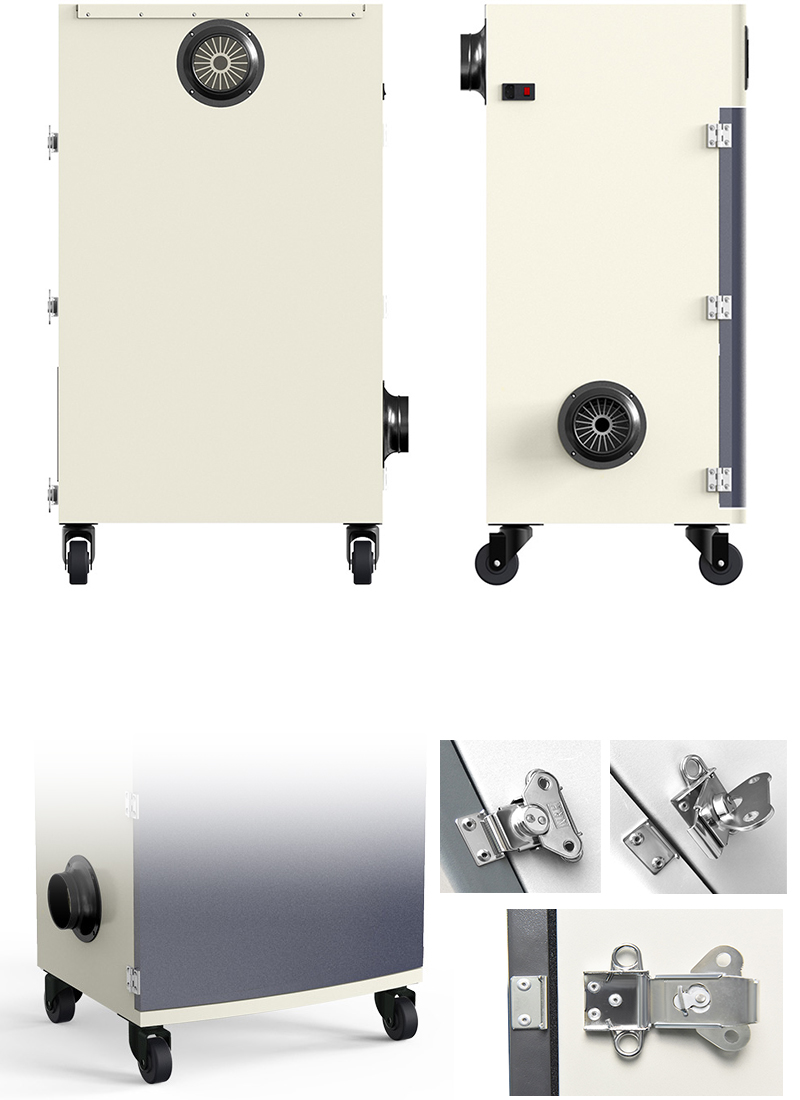

1.Laser cutting fume extractor with metal body structure, strong and durable;
2.Microcomputer chips control, intelligent digital display, with remote control;
3.Multiple-filter design ensures thorough purification;
4.Brushless DC motor with stable performance, long life span.
5.Special alloy impeller, anti-corrosion, stable and reliable operation, large air absorption.
6.Fume Dust collection and filtration, odor filtration.
Available Filter Efficiencies | Fire Prevention Mesh |
Filter Replacement Period | Fire Prevention Mesh: For repeated use (need regular cleaning) Pocket Filter: can be used repeatedly (For sticky dust, 3~5 months) One-piece Filter Combination: 3-6 months However, it can be adjusted as per the exact pollutants generated in different Environment; |

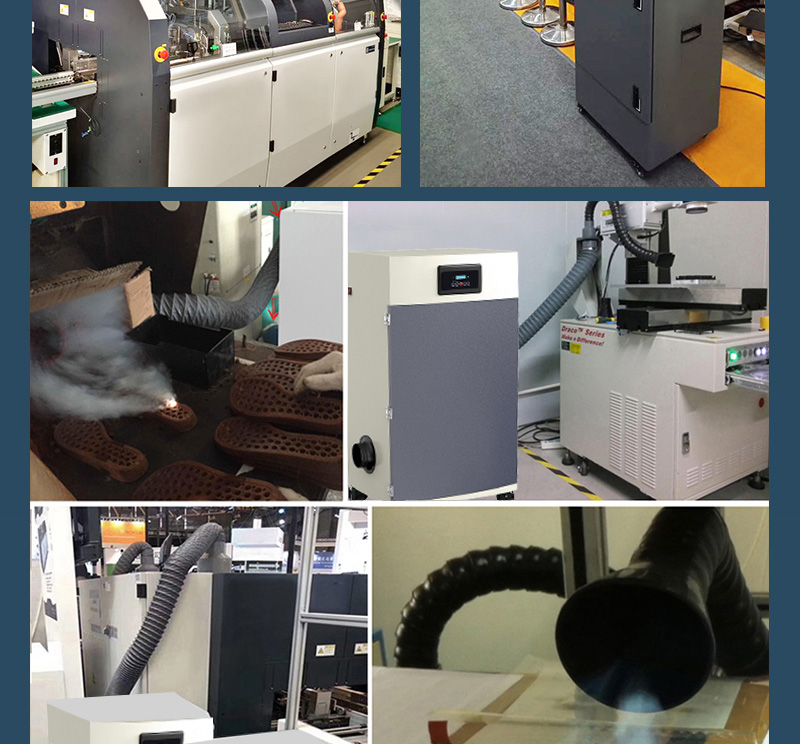

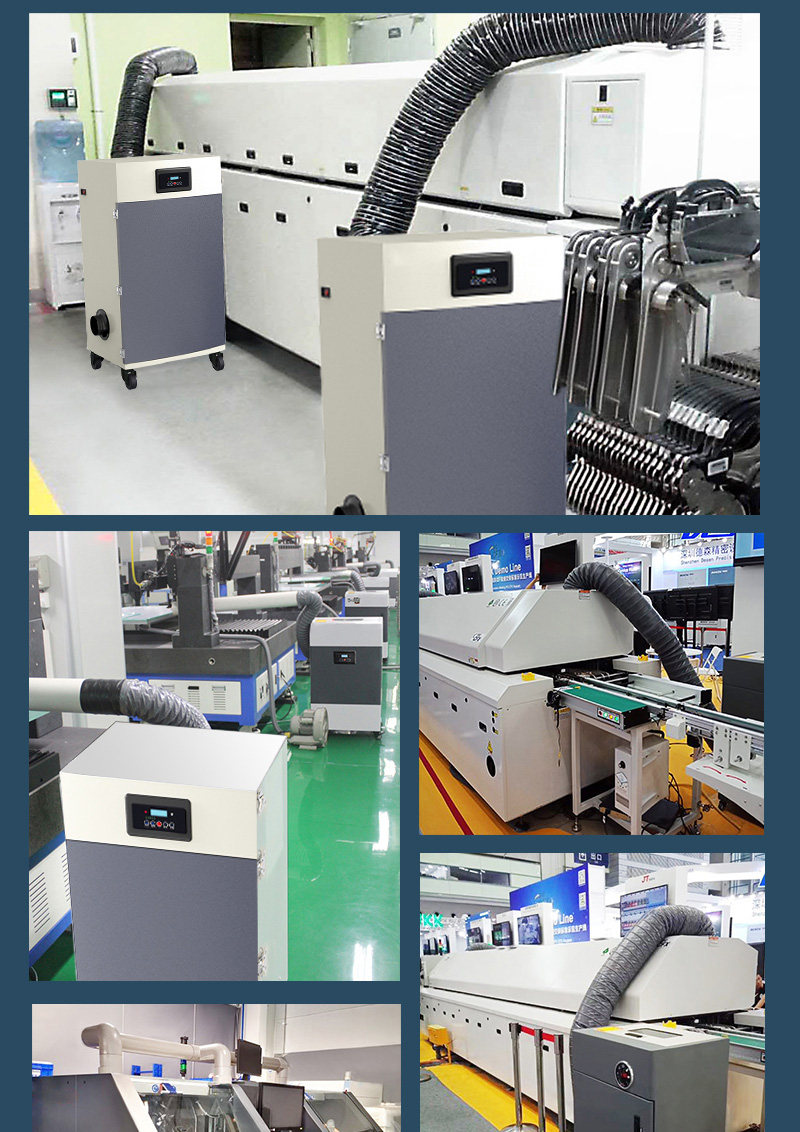

Applications | Soldering, Laser cutting, Laser Marking, Laser Carving, Laser Engraving, Chemical Lab, Beauty Salon, Moxibustion, 3D printing, |
Dust Extraction Laser Cutting Fume Extractor Co2 Laser Machine
Newoxy Fume Extractors are for cleaning for both particles and gases.
It is designed to filter the harmful substances, such as hydrocarbon and cyanide,
It catches harmful smoke with freestanding ducts and adjustable air flow volume
during the process of soldering, welding, laser marking & carving, 3D printing, moxibustion treatment, etc.
With freestanding fume extractor arms and adjustable air flow volume to significantly improve the working environment.
