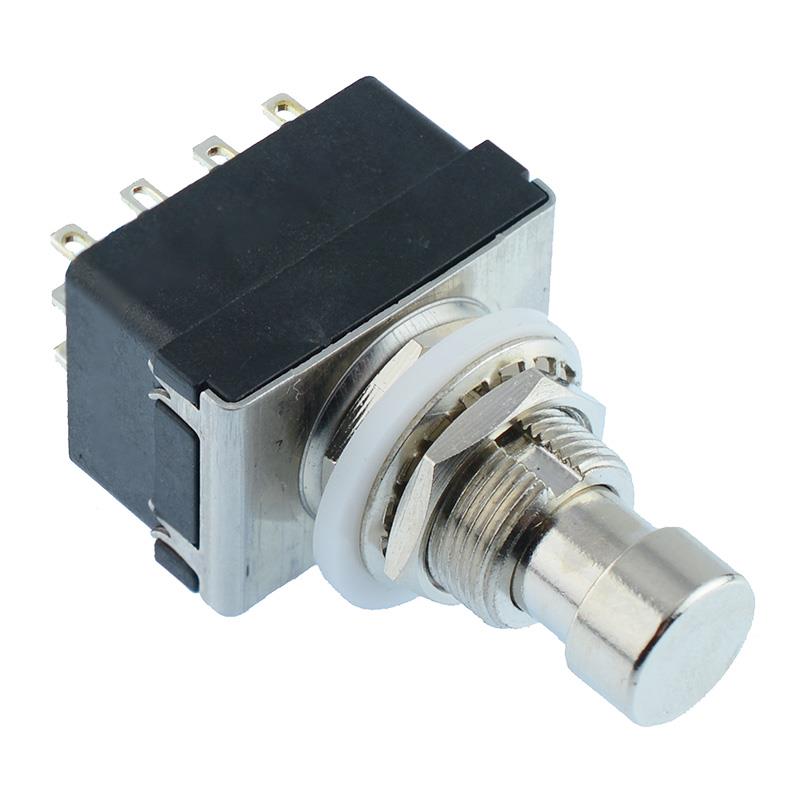

Latching On-On Foot Switch 4PDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	4PDT
Contact Rating	3A 250VAC, 4A 30VDC
Current Rating	4A @ 30VDC
Illuminated	No
Electrical Life	10,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Panel Cut Out	12mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

4PDT footswitch with a latching push button action, ideal for machinery and music applications including foot pedals.

4PDT contacts

Latching action

Solder terminals

Suitable for panel mounting and secured by nut

Panel cut-out: 12mm

Dimensions: 42.1 x 17.1 x 23.3m (Height x Width x Length)

Maximum Panel Thickness: 4mm
