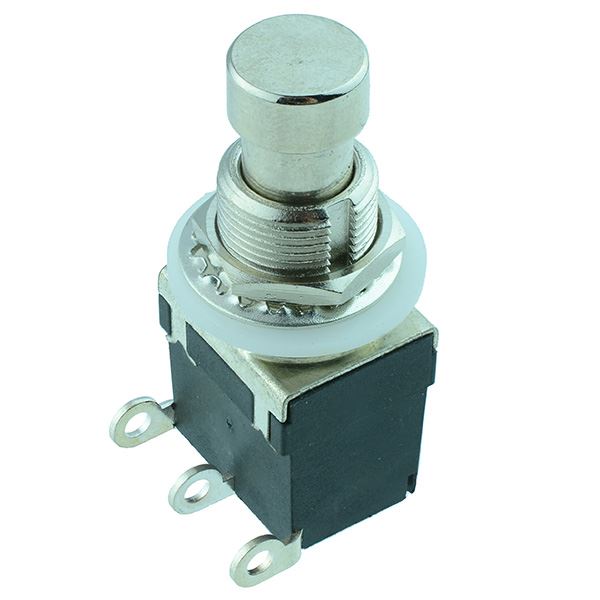

Latching On-On Foot Switch SPDT Side Mount Terminals

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	2A 250VAC
Current Rating	2A
Illuminated	No
Electrical Life	10,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	12mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

SPDT footswitch with a latching push button action, ideal for machinery and music applications including foot pedals.

SPDT contacts

Latching action

Side mounted solder terminals

Suitable for panel mounting and secured by nut

Panel cut-out: 12mm

Maximum Panel Thickness: 4mm
