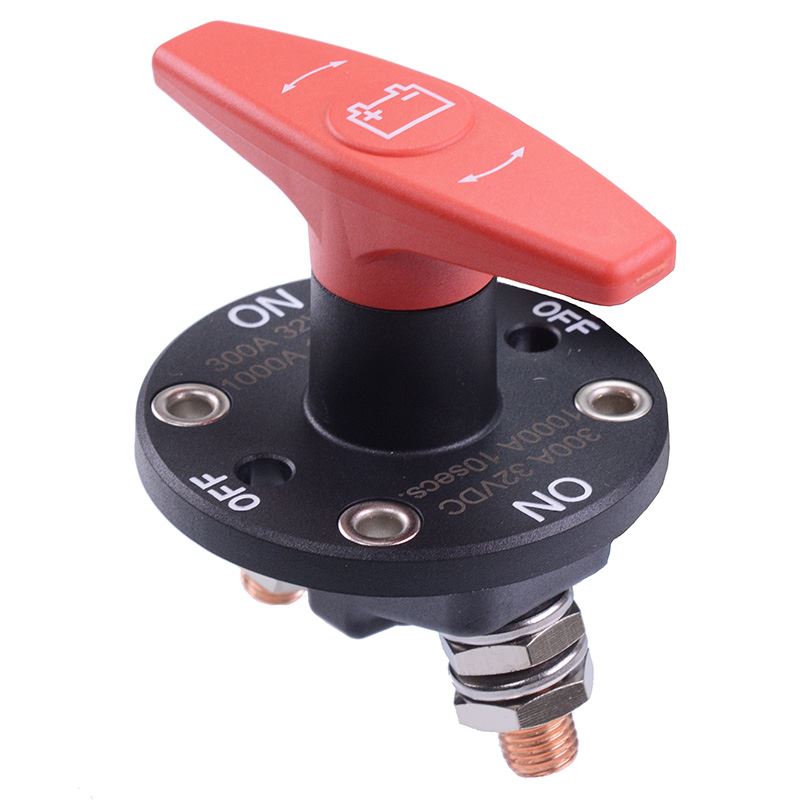

Off-On Waterproof Battery Switch 300A IP67 A23-10

Buy Now

Specifications

Attributes List
Continuous Rating	300A 32VDC
Contact Configuration	SPST
Current Rating	300A
Material	PBT
Mounting Style	Panel Mount
Number of Positions	2
Protection Level	IP67
Operating Temperature	-30°C to +60°C
Switch Operation	Off-On
Terminal Type	M10 Studs
Voltage Rating	32VDC

Description

Off-On battery isolator switch featuring an IP67 protection level and removable actuator. The switch features a 300A 32VDC rating making it ideal for a wide range of 12V and 24V waterproof applications including use with cars, boats, bikes, motorhomes, trucks and caravans.

Off-On action

Removable actuator

SPST contacts

IP67 protection level

Termination: M10 nuts

Continuous rating: 300A 32VDC

Cranking rating: 1000A 10 seconds

Actuator length: 78mm

Dimensions: 85.7 x 67.5mm (Height x Diameter)

]
