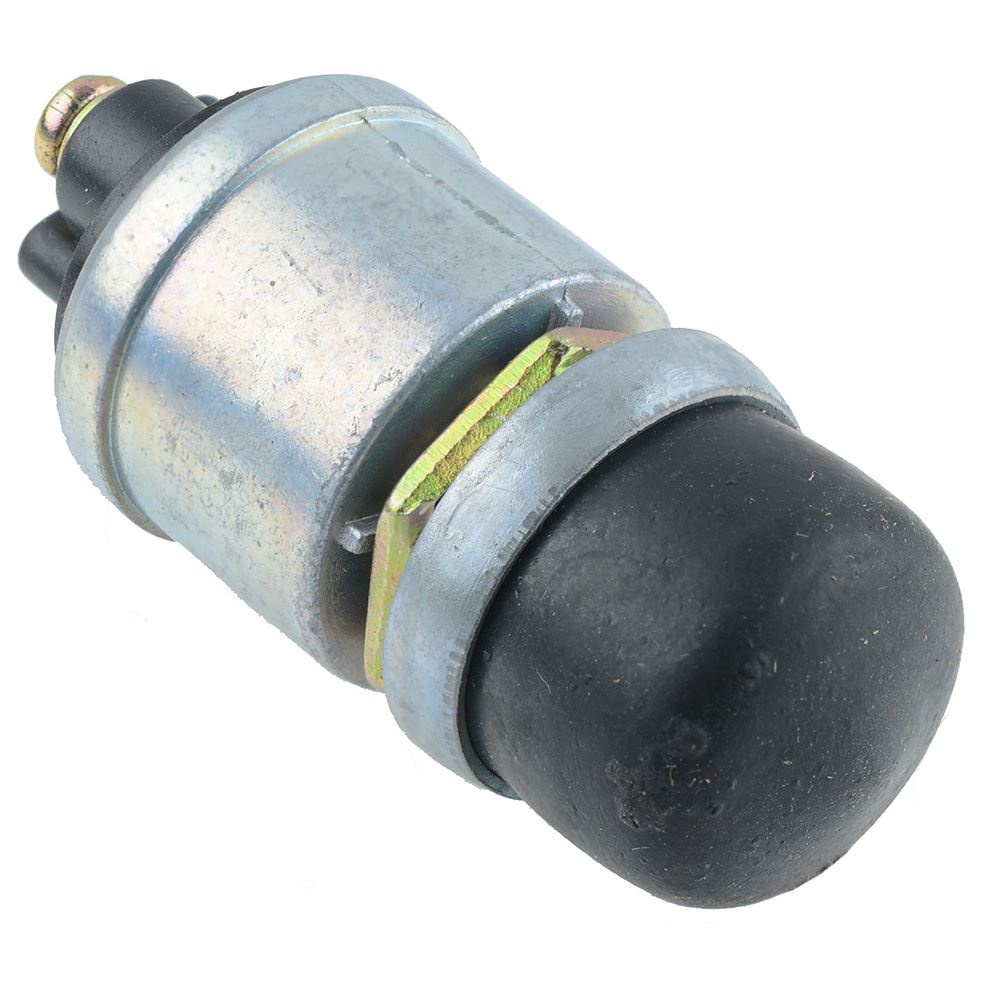

Starter Push Button Switch

Buy Now

Specifications

Attributes List
Contact Configuration	SPST
Contact Rating	10A 12VDC
Current Rating	10A
Illuminated	No
Electrical Life	10,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	16mm
Switch Operation	Off-(On)
Terminal Type	Screw
Voltage Rating	12VDC

Description

Automotive push button switch suitable for use as a horn or engine starter. The switch features a rubber button, and is waterproof making it ideal for a wide range of automotive applications.

Rating: 10A 12VDC

Screw terminals

Switch operation: Off-(On)

Mounting hole diameter: 16mm

Mechanical life: 10,000+ cycles
