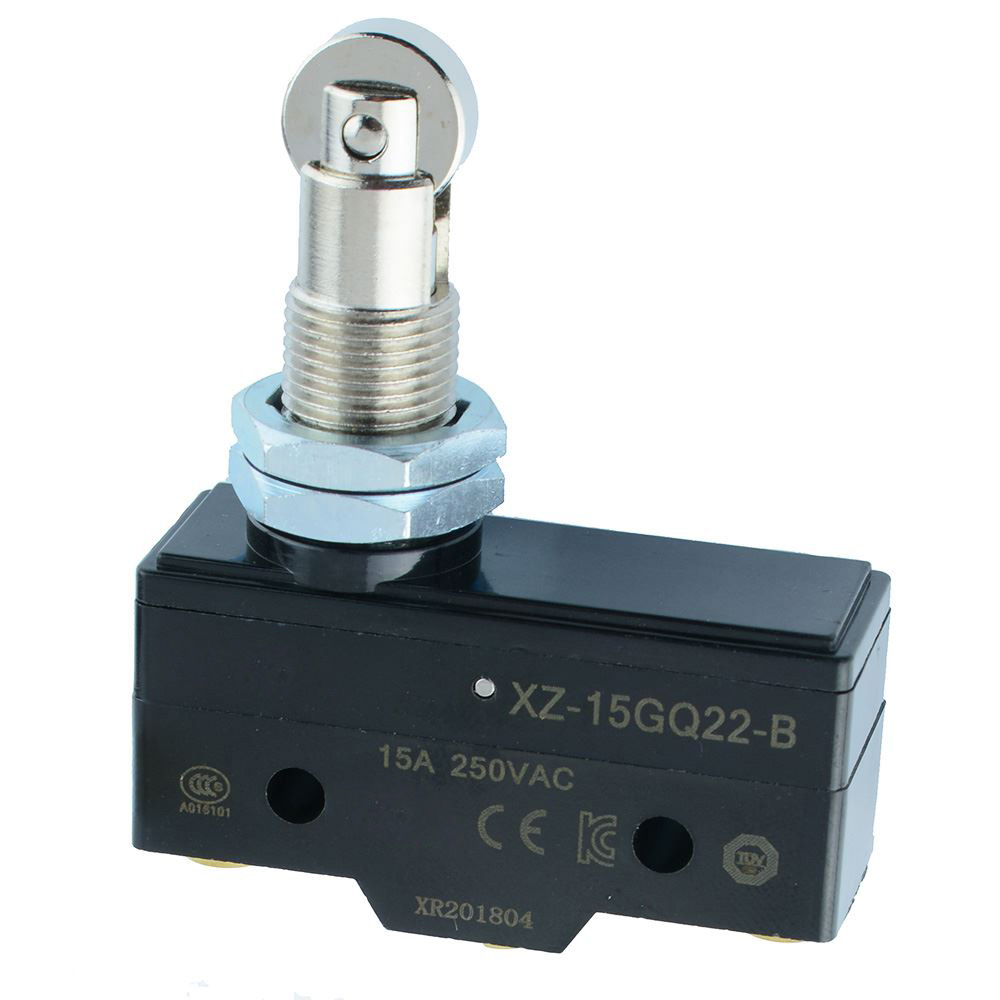

Roller Z Series Limit Switch SPDT 15A 250VAC

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	15A 250VAC
Current Rating	15A
Electrical Life	100,000 Cycles
Release Force	114g
Number of Positions	2
Protection Level	IP40
Operating Force	350-450g
Operating Temperature	-25°C to +80°C
Terminal Type	Screw
Voltage Rating	250VAC

Description

Z series heavy duty microswitch featuring a roller push button actuator and SPDT contacts. The switch is connected using the screw terminals and is suitable for a wide range of applications requiring a reliable microswitch.

Roller push button actuator

Rating: 15A 250VAC

NO / NC contacts

Screw terminals

1,000,000 operation life

Operating force: 350-450g

Release force: 114g
