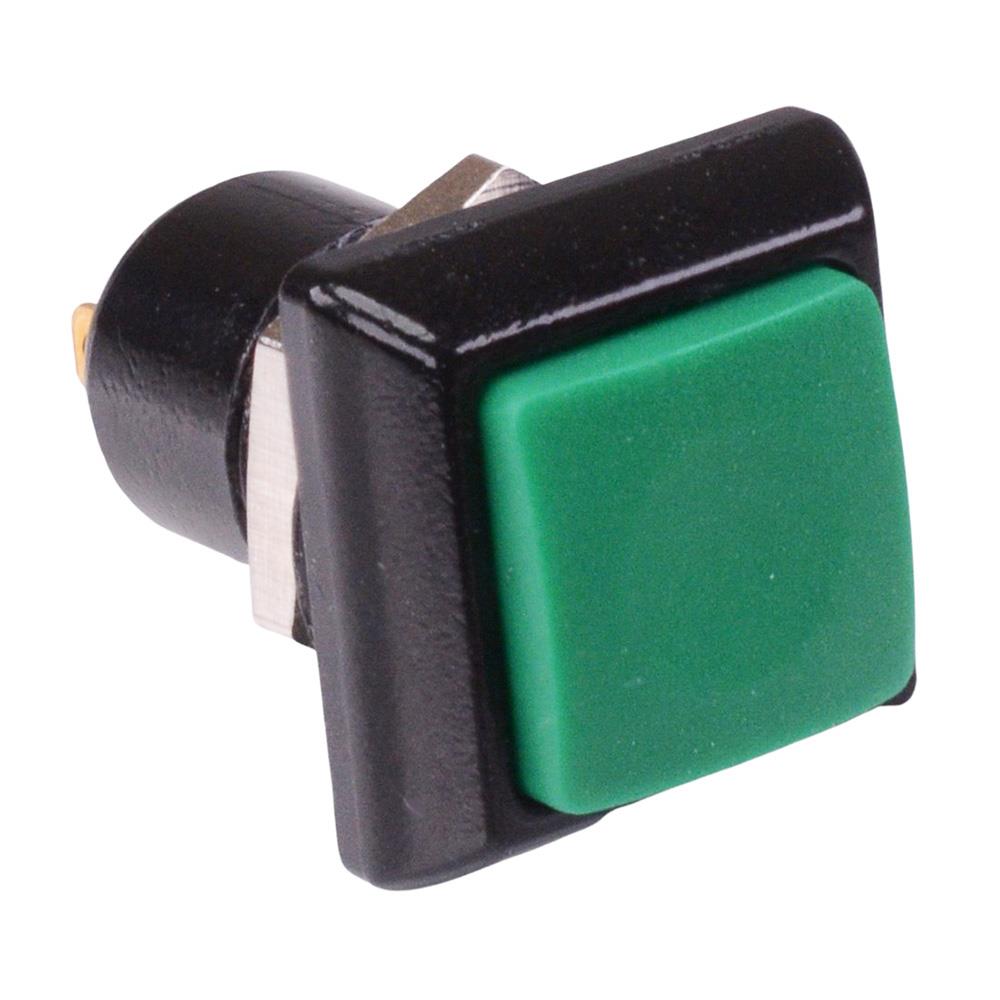

IPC1SAD3 Green Square Latching 12mm Push Button Switch SPST IP67
from
$12.85
Ex Tax: $12.85
10 or more $11.44
25 or more $10.79
50 or more $10.15
100 or more $9.64
- Stock: In Stock
- Model: SCJ014207
- SKU: SCJ014207
Products Sold: 0
Product Views: 24
Ask a Question About This Product
- Description
The IPC1SAD3 is a green latching square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Latching operation SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC Panel thickness: 1.5-5.5mm Dimensions: 27.6 x 17.5 x 17.5mm (height x width x length)
