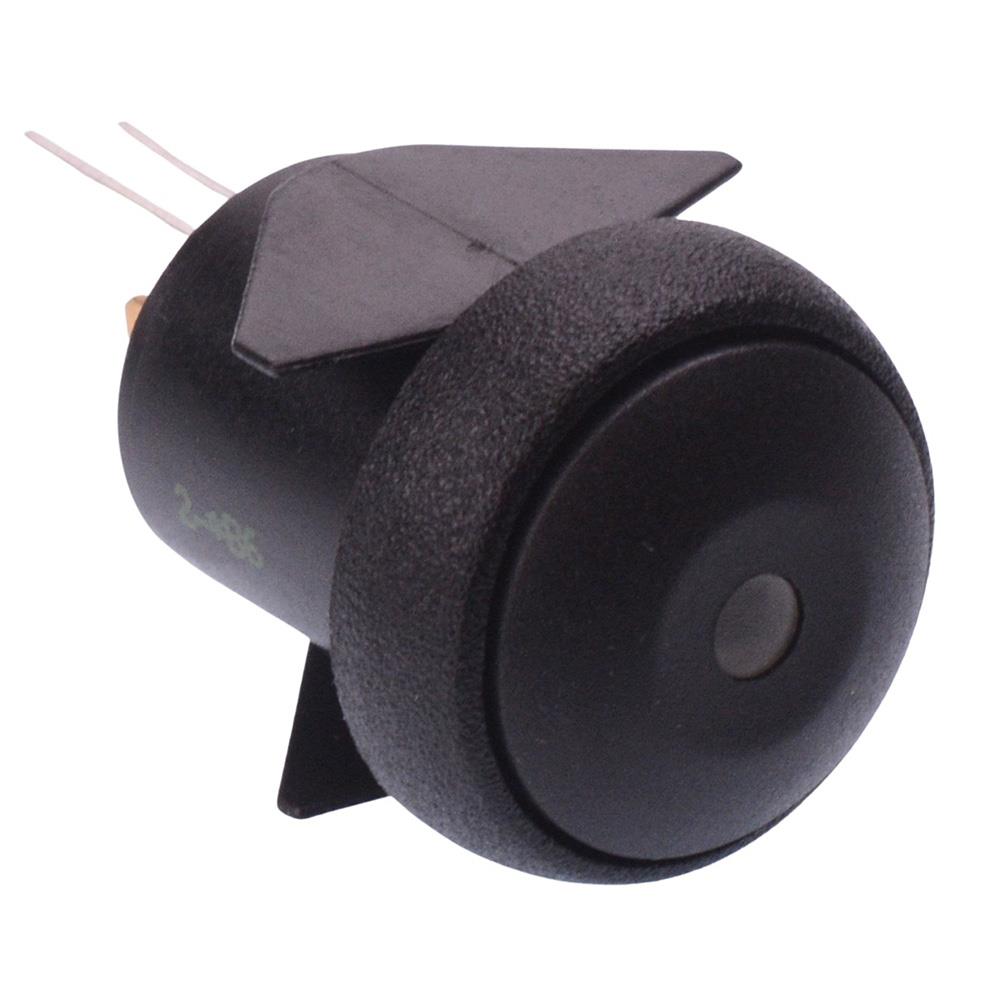

IQR1S422L0Y Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST

IQR1S422L0Y Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST
IQR1S422L0Y Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST
0 reviews - Write a review
from
$21.01
Ex Tax: $21.01
10 or more $18.70
25 or more $17.64
50 or more $16.59
100 or more $15.76
  • Stock: In Stock
  • Model: SCJ014213
  • SKU: SCJ014213
Products Sold: 0
Product Views: 29
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
ColourBlack
Contact ConfigurationSPST
Contact MaterialGold Plated Silver
Contact Rating4A 12VDC, 3A 48VDC, 1A 72VDC
Current Rating4A @ 12VDC
IlluminatedYes
Illumination ColourYellow
Illumination Voltage2.1VDC
MaterialZinc Diecast
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Temperature-40°C to +85°C
Panel Cut Out13.6mm
Panel Thickness1.5-5.5mm
Product SeriesIP
Switch OperationOn-Off
Terminal TypeSolder
Voltage Rating72VDC
  • Description
The IQR1S422L0Y is a black latching round push button switch with a snap-in bushing and yellow LED. The switch features solder lug terminals and SPST contacts, suitable for applications including automotive.

  • Latching operation
  • Yellow LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Solder lug terminals
  • SPST contacts
  • Snap-in mounting
  • IP54 protection level
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC
  • Panel thickness: 2.2mm max
  • Dimensions: 27.7 x 19.8mm (height x diameter)
