PBAT5AF3000 Momentary NO 16mm Green Piezo Switch Prewired IP68

0 reviews - Write a review

from

$43.32

Ex Tax: $43.32

5 or more $38.55

10 or more $35.96

25 or more $33.79

50 or more $32.05

Stock: In Stock
Model: SCJ010352
SKU: SCJ010352

Products Sold: 0

Product Views: 30

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Green
Contact Configuration	SPST
Contact Rating	0.2A 24VAC/DC
Current Rating	0.2A
Illuminated	No
Electrical Life	50,000,000 Cycles
Material	Anodized
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +75°C
Panel Cut Out	16.2mm
Product Series	PBA
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	24VAC/DC

Description

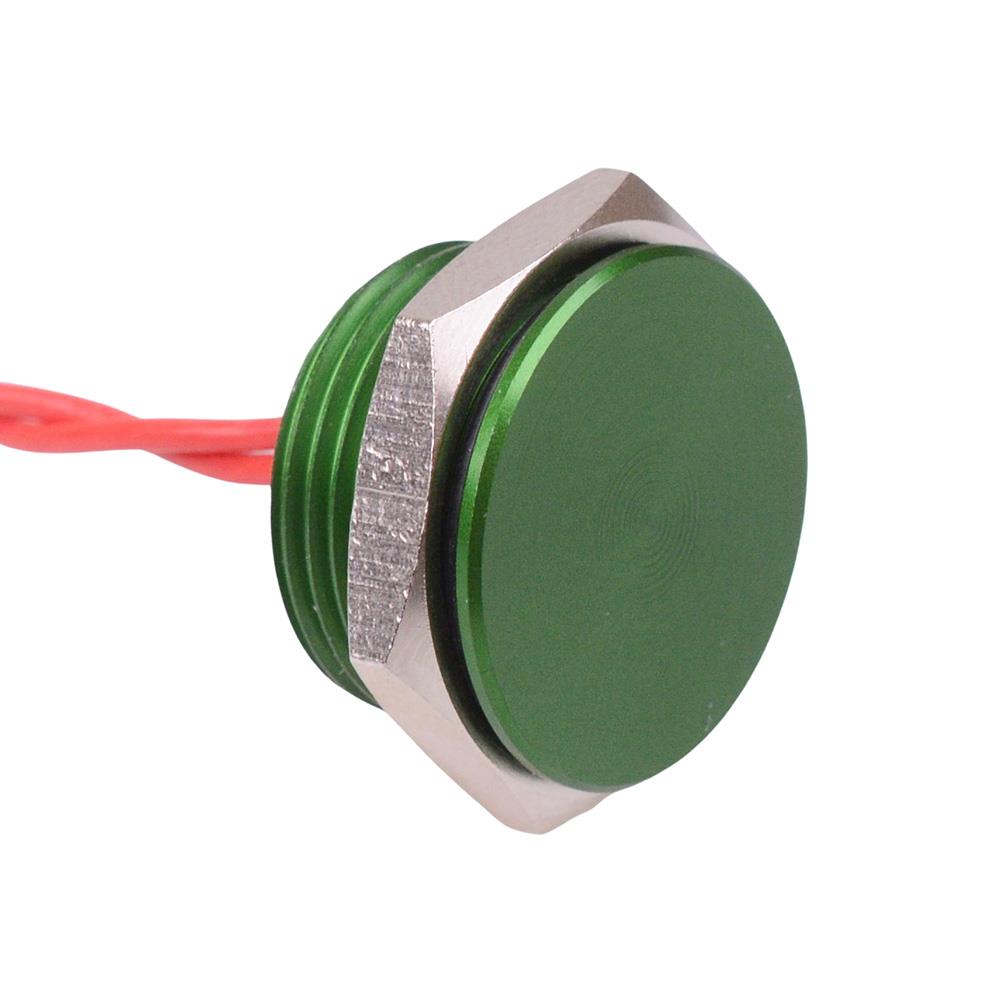

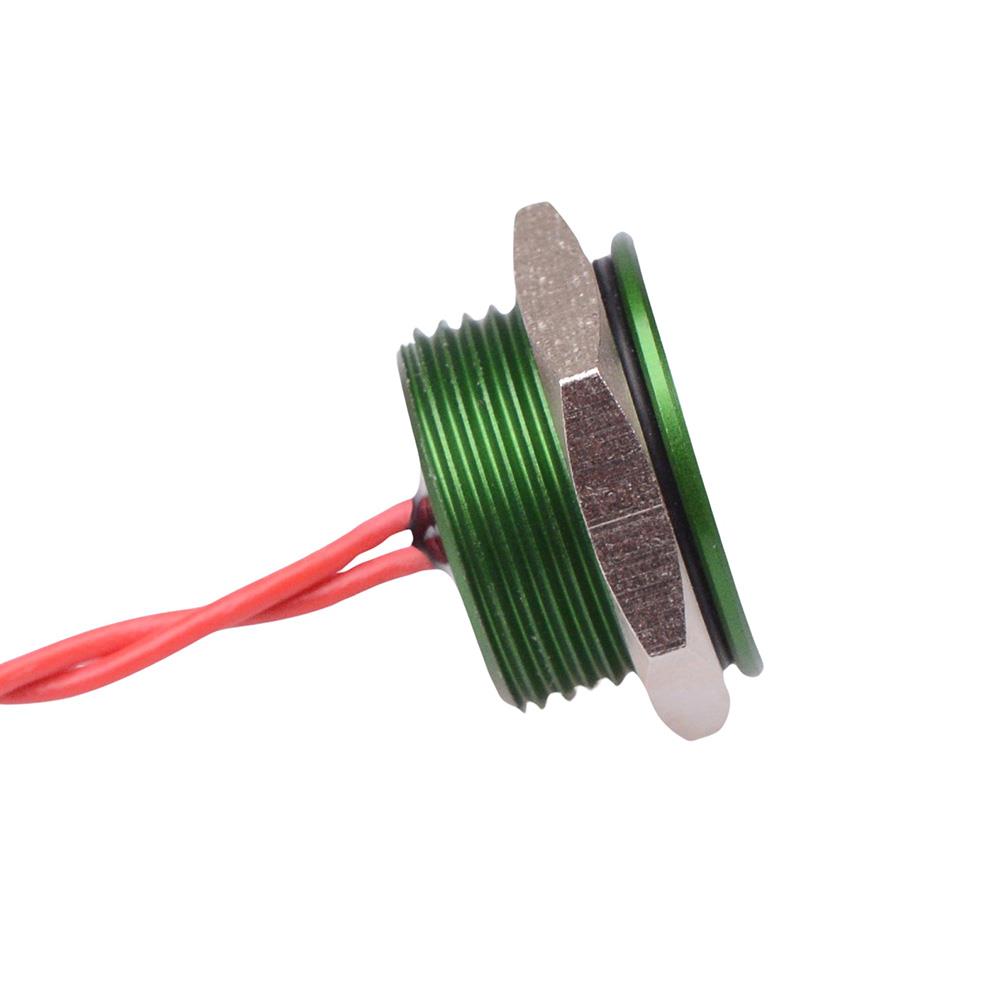

The PBAT5AF3000 is a 16.2mm momentary piezo switch manufactured by socoje. The switch features a green anodized body and is terminated with flying leads. The switch is sealed to IP68 and features a very long life expectancy, making it suitable for a wide range of applications.

Body material: green anodized

Body colour: green

Panel cut-out: 16.2mm

Contacts: SPST-NO

Protection rating: IP68, IP69K mounted on panel

Rating: 200mA 24VAC/DC

Terminals: flying leads

Bushing: flat operator, 1mm height

Diameter: 18mm
