SPST-NO Reed Switch Kit (20-30 / 30-40 / 40-50AT) - GC2722K

SPST-NO Reed Switch Kit (20-30 / 30-40 / 40-50AT) - GC2722K
SPST-NO Reed Switch Kit (20-30 / 30-40 / 40-50AT) - GC2722K
from
$2.97
Ex Tax: $2.97
10 or more $2.64
25 or more $2.50
50 or more $2.35
100 or more $2.22
  • Stock: In Stock
  • Model: SCJ010383
  • SKU: SCJ010383
Products Sold: 0
Product Views: 68
  • Specifications
Attributes List
Bounce Time0.5ms
Diameter2.6mm
Carry Current2A
Length19mm
Contact ConfigurationSPST-NO
Maximum Switching Capacity12VA
Maximum Switching Current1A
Drop Out Sensitivity5AT Min
Maximum Switching Voltage230VAC/DC
MaterialRhodium
Pull In Sensitivity20-30 / 30-40 / 40-50AT
Release Time0.1ms
Operating Temperature-40°C to +125°C
  • Description

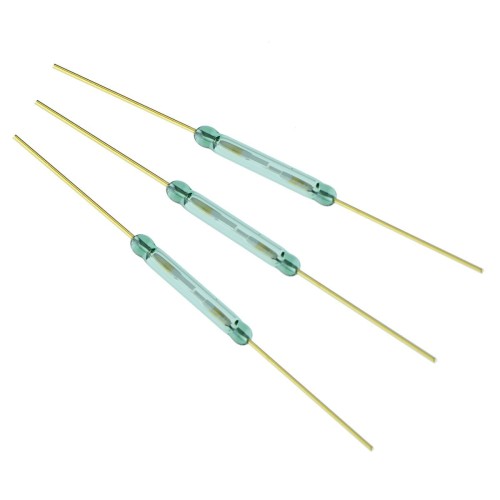

GC2722 kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts manufactured from Rhodium, actuated using an electro-magnet.

  • Includes 1pc of each sensitivity (low, medium, high)
  • Normally open contacts
  • Maximum switching voltage: 230V AC/DC
  • Maximum switching current: 1A
  • Maximum switching power: 12VA
  • Pull-in sensitivity: 20-30 / 30-40 / 40-50AT
  • SPST-NO Reed Switch Kit (20-30 / 30-40 / 40-50AT) - GC2722K
