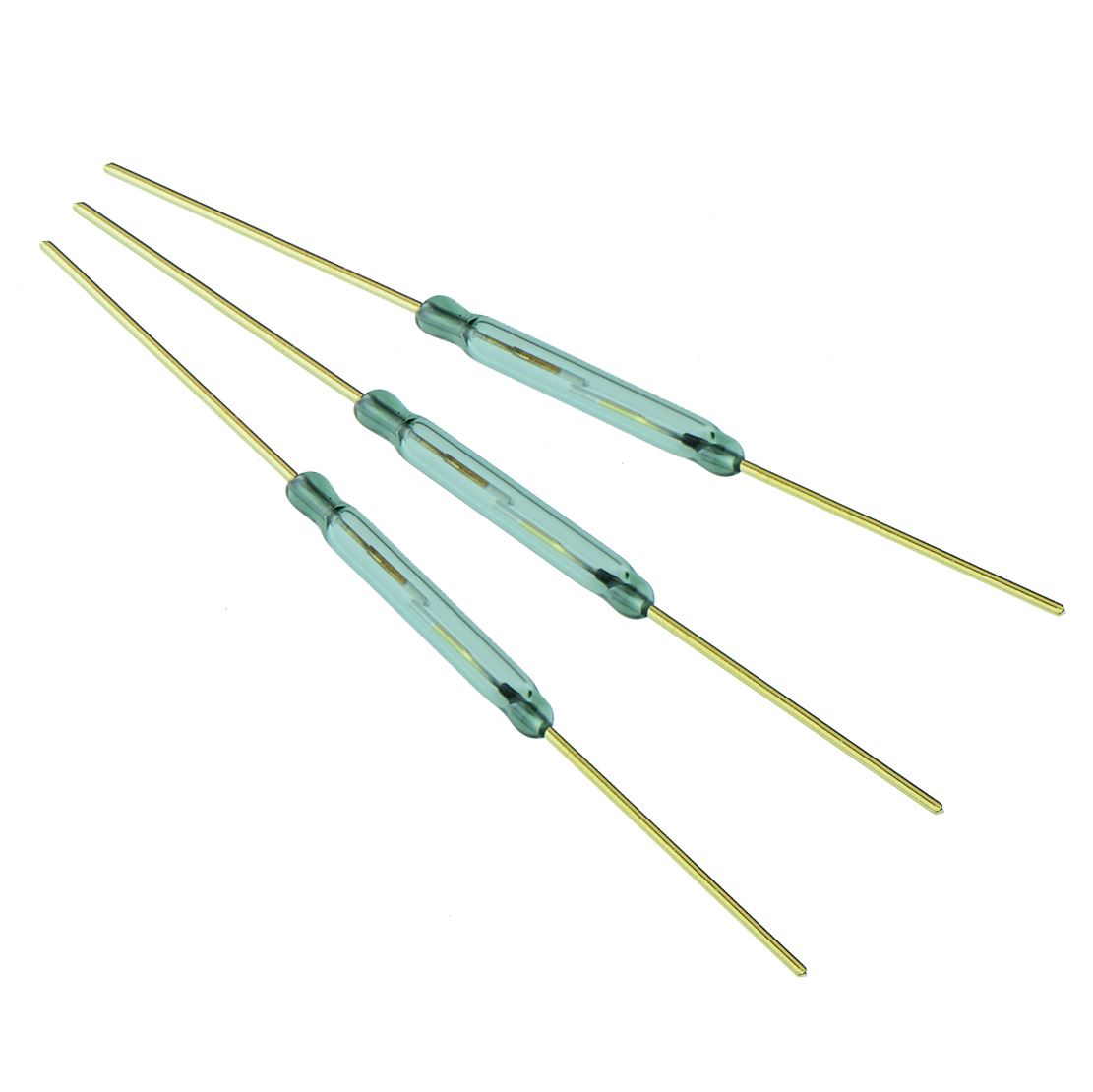

SPST-NO Reed Switch Kit - GC3723K

Buy Now

Specifications

Attributes List
Bounce Time	0.5ms
Diameter	2.6mm
Carry Current	3A
Length	19mm
Contact Configuration	SPST-NO
Maximum Switching Capacity	40W/VA
Maximum Switching Current	2A
Drop Out Sensitivity	15AT Min
Maximum Switching Voltage	230VAC/DC
Material	Rhodium
Pull In Sensitivity	15-25 / 25-35 / 35-50AT
Release Time	0.1ms
Operating Temperature	-40°C to +125°C

Description

GC3723 kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts manufactured from Rhodium, actuated using an electro-magnet.

Includes 1qty of each sensitivity

Normally open contacts

Maximum switching voltage: 230V AC/DC

Maximum switching current: 2A

Maximum switching power: 40VA

Pull-in sensitivity: 15-25 / 25-35 / 35-50AT
