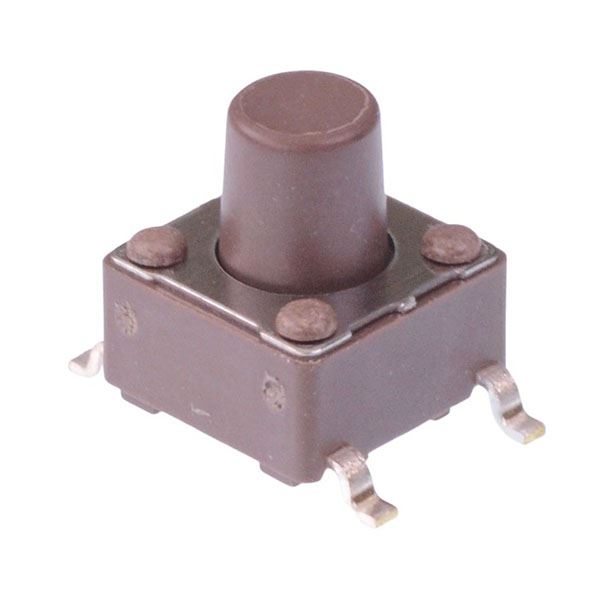

PHAP5-30VA2C2S2N3 7mm Height 6mm x 6mm Surface Mount Tactile Switch 160g Tube Packaging

Buy Now

Specifications

Attributes List
Actuation	Momentary
Height	7mm
MOQ	5
Contact Configuration	SPST
Contact Material	Silver Plated Phosphor Bronze
Contact Rating	50mA 12VDC
Current Rating	50mA
Material	Polyamide
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Force	160g
Operating Temperature	-25°C to +70°C
Product Series	PHAP5-30
Switch Operation	Off-(On)
Terminal Type	Surface Mount
Voltage Rating	12VDC

Description

The PHAP5-30VA2C2S2N3 is a vertical tactile switch with a 6mm x 6mm standard package and 7mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.

Vertical SMT mounting

6mm x 6mm package

7mm height

Rating: 50mA 12VDC

Operating force: 160g

Travel: 0.25mm

socoje PHAP5-30 series
