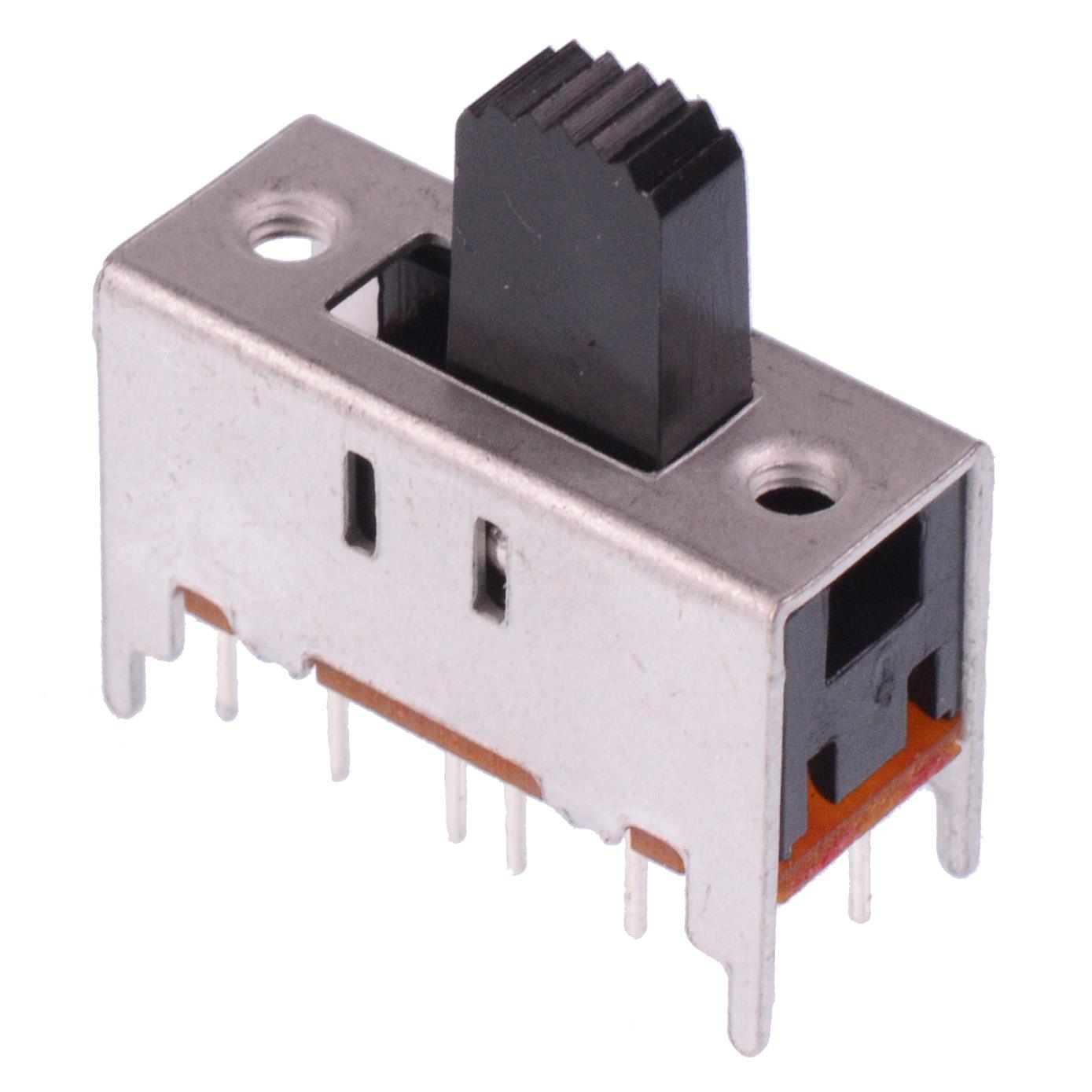

M42 On-Off-On Standard PCB Slide Switch 4P2T

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	4P2T
Contact Material	Silver Plated
Contact Rating	0.3A 125VAC / 30VDC
Current Rating	0.3A
Electrical Life	10,000 Cycles
Material	Thermoplastic
Mounting Style	PCB
Number of Poles	4
Number of Positions	3
Operating Temperature	-10°C to 60°C
Product Series	M
Switch Operation	On-Off-On
Terminal Type	PCB
Voltage Rating	125VAC / 30VDC

Description

The M42 is a standard size toggle switch by socoje, featuring 4P2T contacts and vertical actuator. The switch features On-Off-On function and is suitable for a wide range of PCB applications.

On-Off-On function

Contacts: 4P2T

Rating: 0.3A 125VAC / 30VDC

Epoxy sealed terminals

M2.6 mounting holes

Mounting hole pitch: 16.5mm

9mm actuator height

Dimensions: 22 x 9mm (length x width)
