3/32 inch ~ 23/32 inch Opening Size R8 Collet Hardened and Ground Series
from
$5.24
Ex Tax: $5.24
- Stock: In Stock
- Model: SCJ006140
- SKU: SCJ006140
Products Sold: 0
Product Views: 332
Ask a Question About This Product
- Description

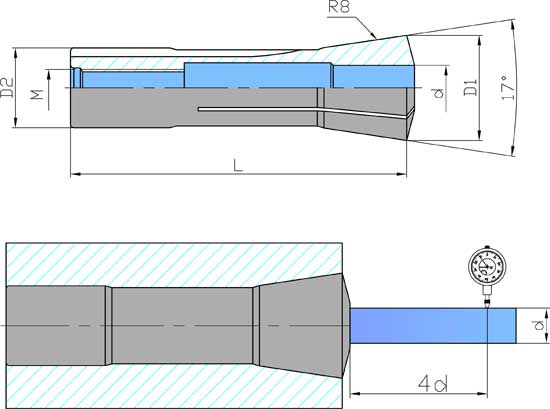

3/32 inch ~ 23/32 inch Opening Size R8 Collet Hardened and Ground Series
About this product
1. overall length is 4" (101.6mm)
2. High grade collet steel
3. Drawbar thread: 7/16" - 20
4. Good elasticity, high precision, run-out tolerance 0.0012"
| Style Name | Hole diameter | Net Weight | Gross Weight |
| R8 - 3/32" | 3/32" (2.38mm) | 0.72 lbs | 0.77 lbs |
| R8 - 5/32" | 5/32" (3.97mm) | 0.72 lbs | 0.77 lbs |
| R8 - 7/32" | 7/32" (5.56mm) | 0.72 lbs | 0.77 lbs |
| R8 - 9/32" | 9/32" (7.14mm) | 0.72 lbs | 0.77 lbs |
| R8 - 17/32" | 17/32" (13.49mm) | 0.63 lbs | 0.68 lbs |
| R8 - 19/32" | 19/32" (15.08mm) | 0.59 lbs | 0.64 lbs |
| R8 - 21/32" | 21/32" (16.67mm) | 0.56 lbs | 0.62 lbs |
| R8 - 23/32" | 23/32" (18.253mm) | 0.5 lbs | 0.55 lbs |
1. Good elasticity, high precision, run-out tolerance 0.0012"
2. Designed for use with cylindrical shank tools, not flats
3. Back bearing diameter of 61/64" (24.12mm) and overall length of 4" (101.6mm)
4. Using high quality spring steel
5. Used for holding workpieces in a lathe or other machine tool
6. Premium hardened & all ground body for extended tool life
