25mm Socoje Tapered Roller Bearing, Single Row 1pc
Brief
Lower cost tapered roller bearing comes with inner diameter of 25mm, outer diameter of 52mm, width of 16.25mm, P6 accuracy class. The single row tapered roller bearing has the advantages of smooth operation, easy to use and long service life.
Description
High-speed tapered roller bearing comes with an inner diameter of 25mm, static load rating of 25.8kN, and 650 rpm limiting speed. High-speed tapered roller bearing is widely used in machine tools, paper-making machinery, mechanical gears, motors, wind generators, steel equipment and mining equipment, etc.
Specification
- Model: ATO-30205
- Inner diameter: 25mm
- Outer diameter: 52mm
- Width: 16.25mm
- Accuracy class: P6
- Limiting speed: 650 rpm
- Bearing basic dynamic load rating: 25.8 kN
- Rated static load: 163 kN
- Bearing material: Bearing steel

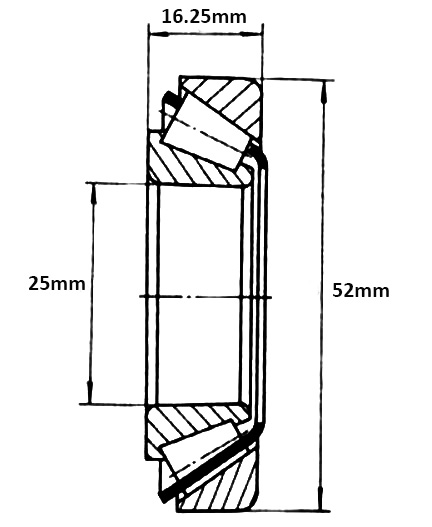

Dimension (mm)
Application
Tips: Do tapered roller bearings need adjusting?
When adjusting tapered bearings against each other, the bearings must be rotated so that the roller ends are in correct contact with the guide flange of the inner ring. At initial assembly, other factors determine the non-operating clearance or preload.
