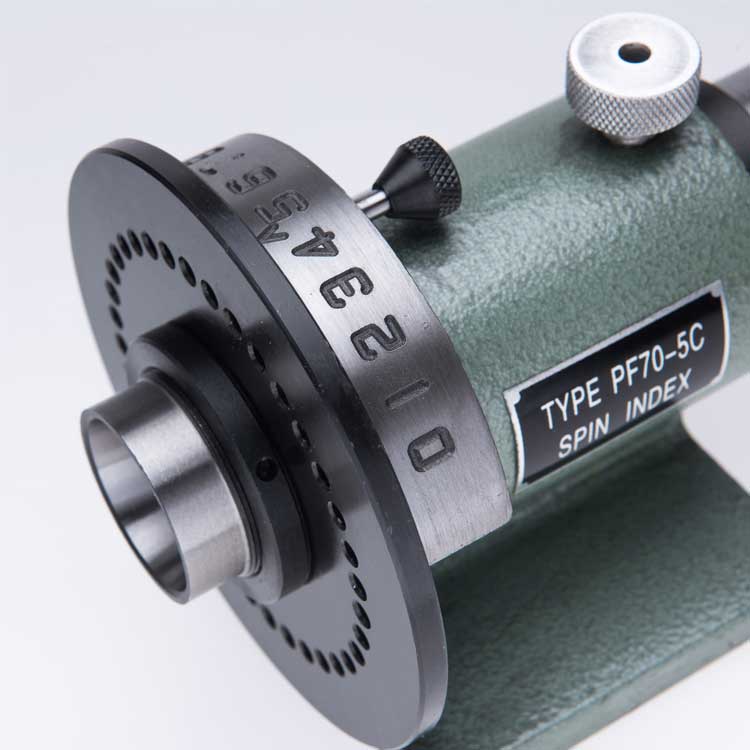

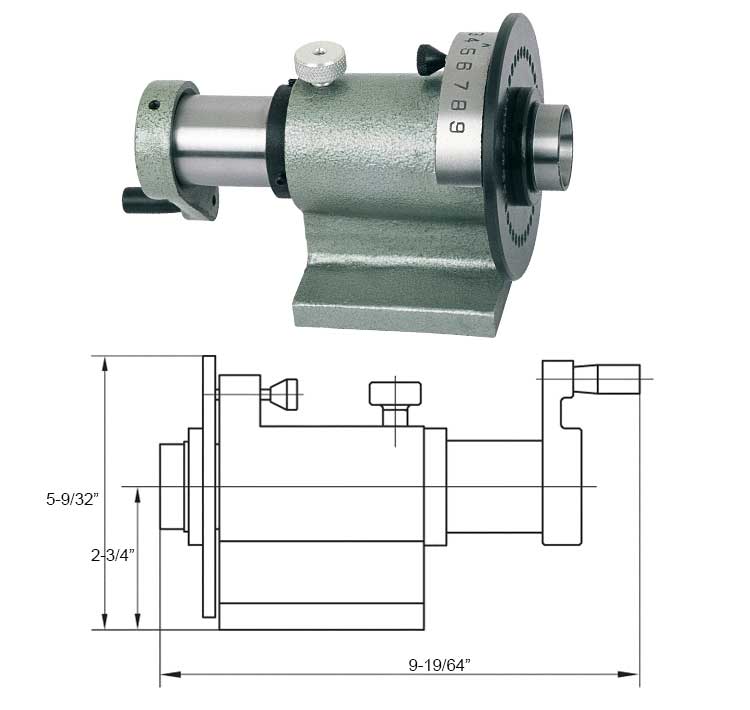

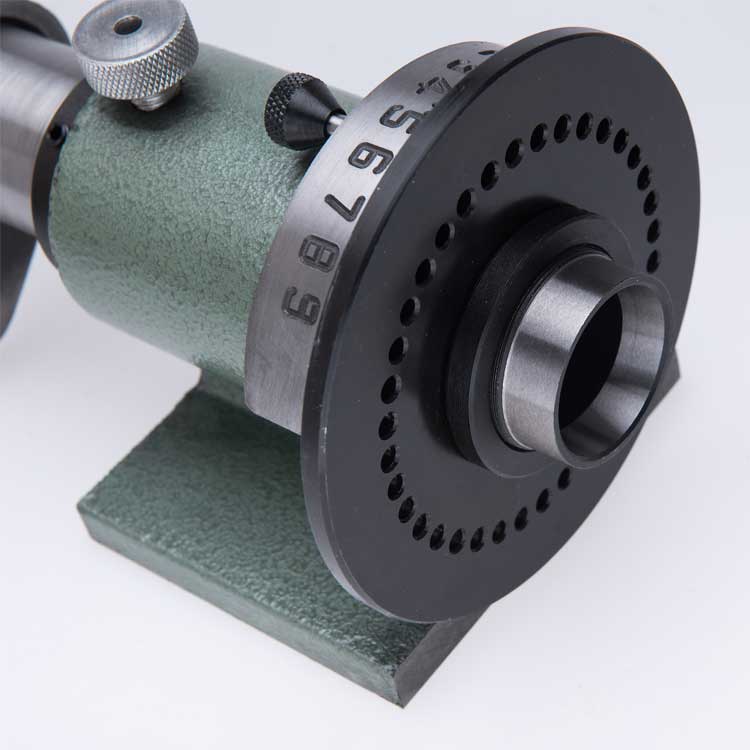

5C Spin Index Fixture 1pc

Features

1. 5C Collet System: Utilizes a 5C collet, which provides strong grip and accurate centering for various workpiece shapes and sizes.

2. Rotational Indexing: The fixture can rotate workpieces to specific angles, facilitating operations like drilling, milling, or grinding at predefined positions.

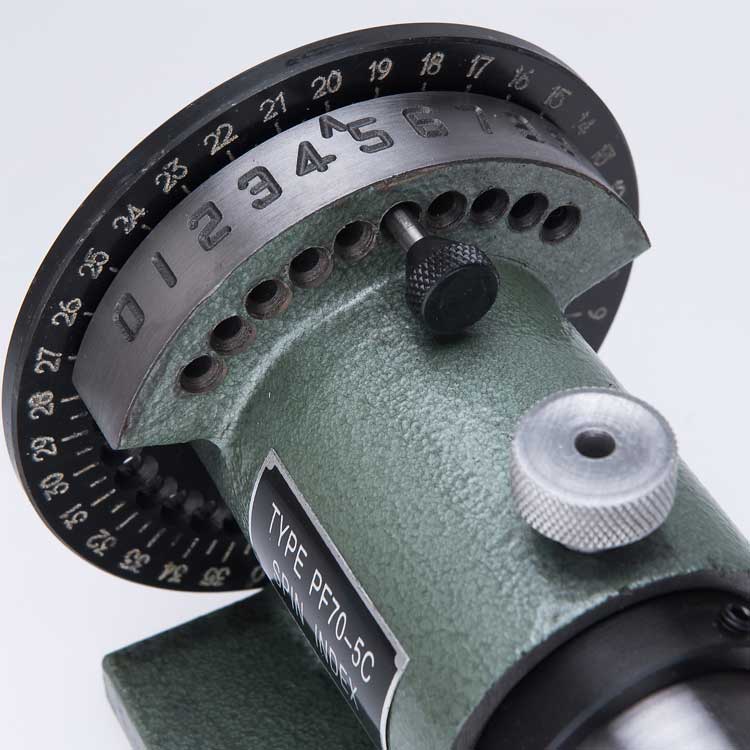

3. Adjustable Stops: Many fixtures come with adjustable stops to set specific indexing angles, making it easier to repeat operations.

4. Sturdy Construction: Typically made from durable materials like steel or aluminum, ensuring longevity and stability during machining processes.

5. Versatility: Can be used in various applications such as tool making, fixture design, and production machining.

Applications

• Multi-sided Machining: Ideal for parts that require machining on multiple faces, reducing the need for multiple setups.

• Production Runs: Useful in high-volume production where consistent and repeatable operations are required.

• Tooling and Fixture Design: Commonly employed in the design of custom tooling and fixtures due to its flexibility.
