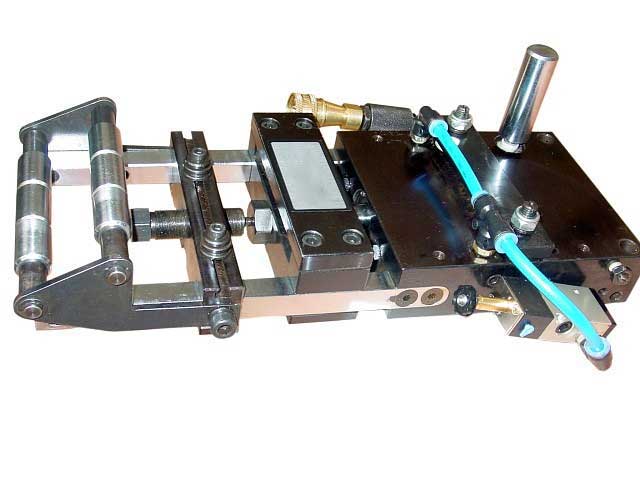

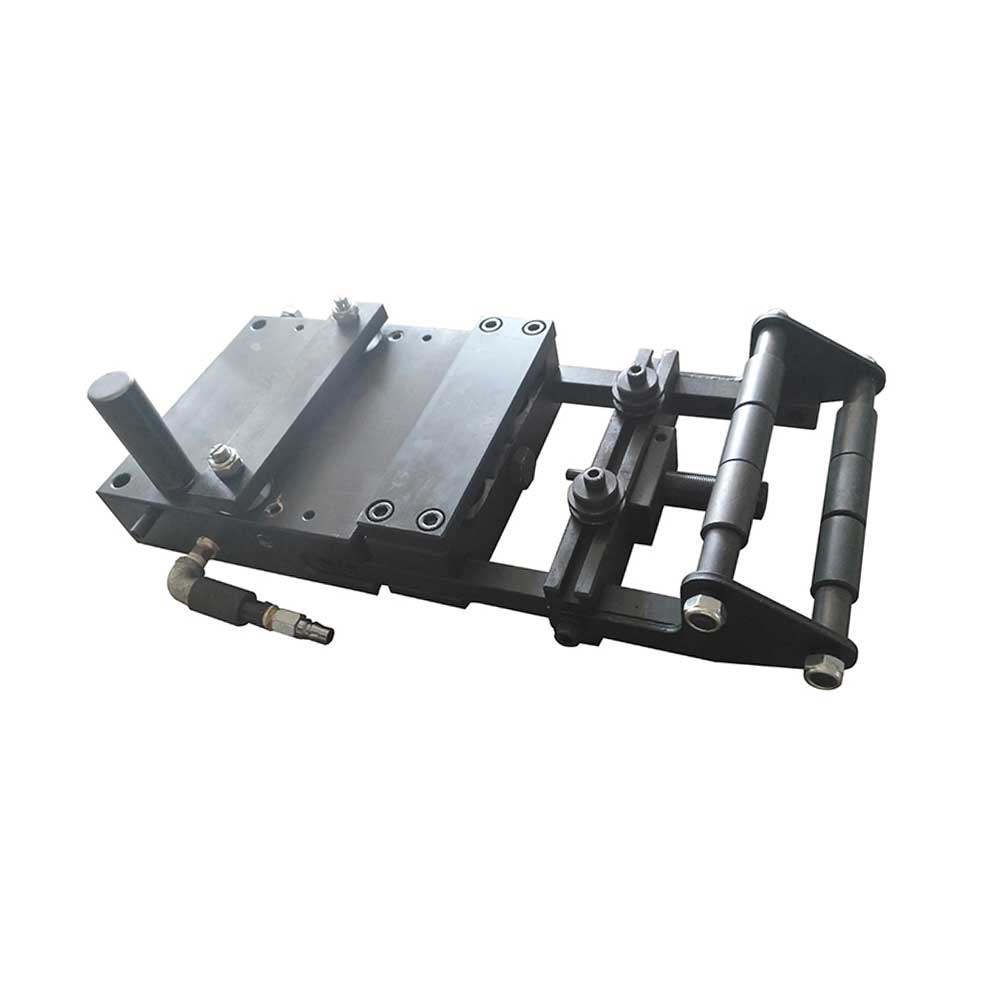

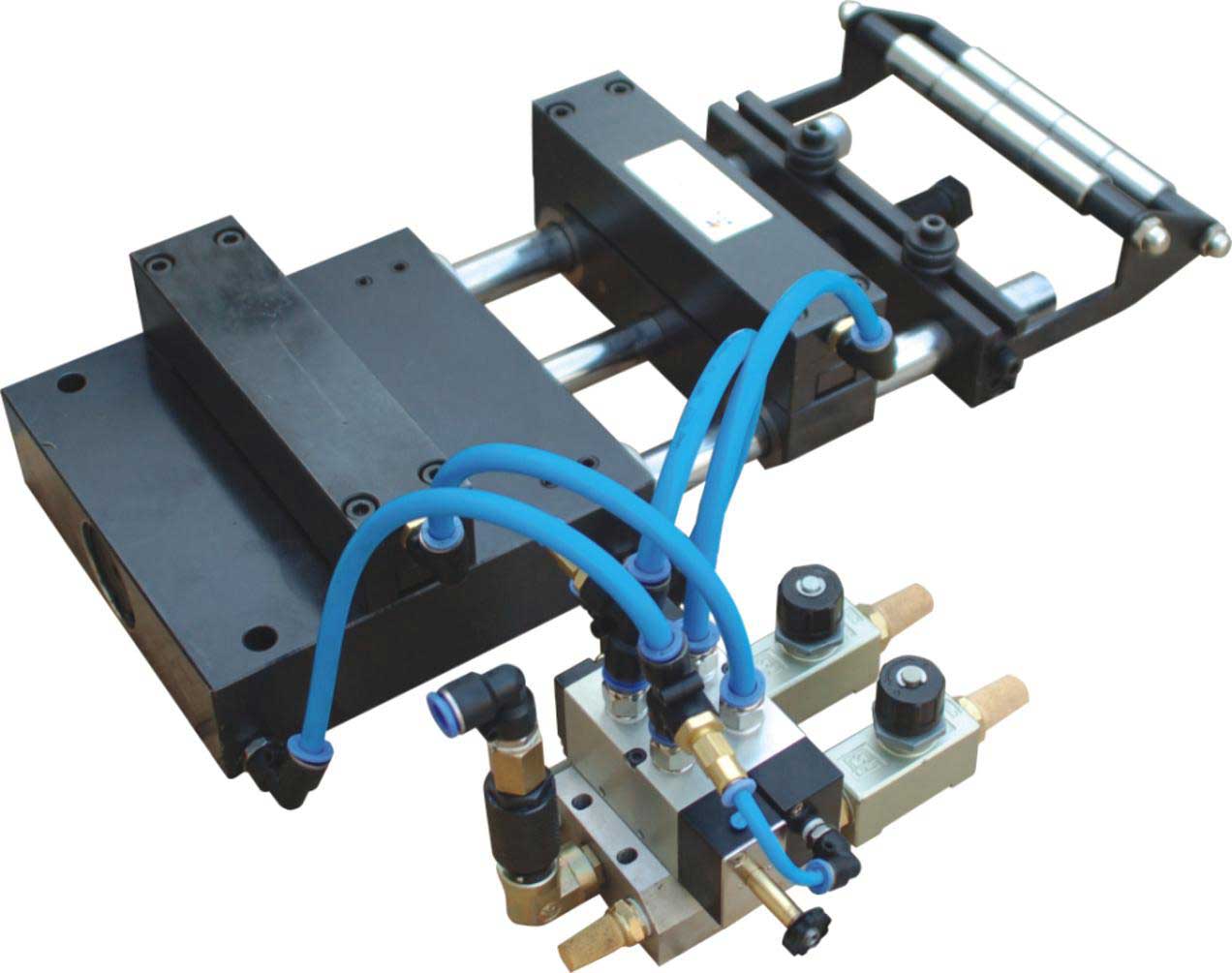

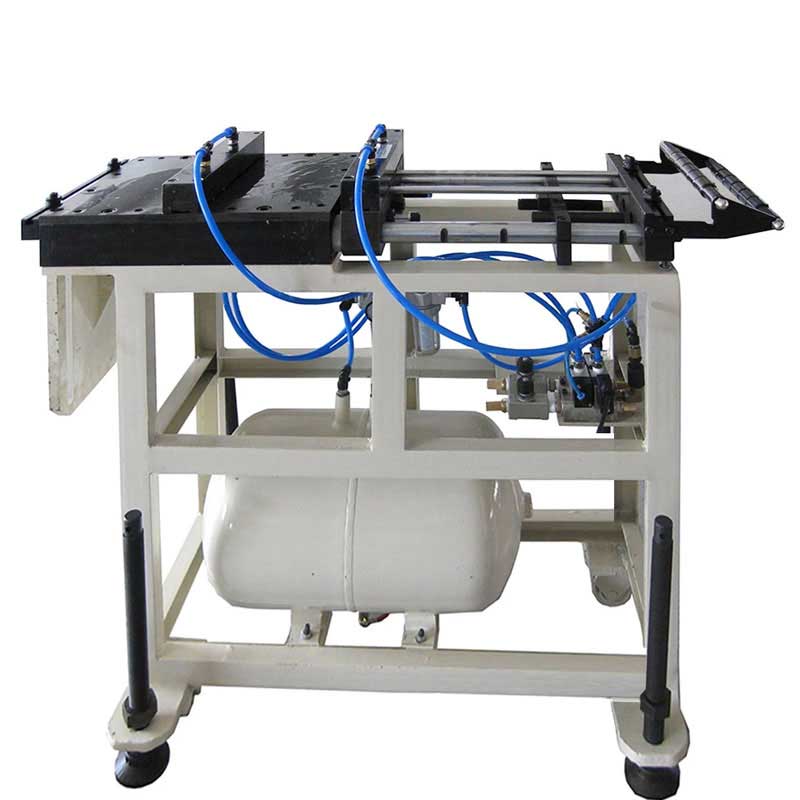

AF-10C Air Feeding Machine Automatic Power Press Pneumatic Feeder For Sheet Coil

Buy Now

Specifications

Other attributes
Condition	New
Place of Origin	Guangdong, China
Weight (KG)	20
warranty:	1 Year
Key Selling Points	Easy to Operate
Use	Sheet Coils
Showroom Location	None
Applicable Industries:	Manufacturing Plant
Marketing Type	Ordinary Product
Machinery Test Report	Not Available
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	PLC, Engine, Motor, Gear
Material thickness	0.5-3mm
Material width	50-450mm
Power	Optional
Voltage	380V or Optional
Dimension(LWH)	Customization
Pneumatic Pressure	4.5 Kg/cm2
Dimension	60060220mm
Type	Feeder Machine
Usage	Metal Sheet Strip Coil
Function	High Efficiency
Max. feeding S.M.P	30 MC/min
Power supply	By Pneumatic
Color	Customer's Requirement
Certificate:	CE Certificate
Packaging and delivery
Packaging Details	In wooden case, air feeder for punching machine
Port	SHENZHEN
Supply Ability
Supply Ability	100 Unit/Units per Month

Description

Product Description

Specification:

Type	Strip Width Max.	Stroke max.	Strip Thickness Max.	Max. Stroke/min
AF-1C	50mm	50mm	0.5mm	250
AF-2C	65mm	80mm	0.8mm	200
AF-3C	80mm	80mm	1.2mm	180
AF-4C	100mm	130mm	1.5mm	130
AF-5C	150mm	150mm	2.0mm	100
AF-6C	200mm	200mm	2.0mm	50
AF-7C	250mm	250mm	2.5mm	50
AF-8C	300mm	300mm	2.5mm	45
AF-9C	350mm	350mm	3.0mm	35
AF-10C	400mm	400mm	3.0mm	30
AF-11C	450mm	450mm	3.0mm	25

Features:
Coil stock can be fed in any direction or angle at any time during the machine cycle. A single feed can push or pull through long or short progressions.

A variety of stock widths and thicknesses can be fed at different speeds and feed lengths. Two or more strips can be simultaneously fed by the same feed.
