- Stock: In Stock
- Model: SCJ006753
- SKU: SCJ006753
Ask a Question About This Product
- Description

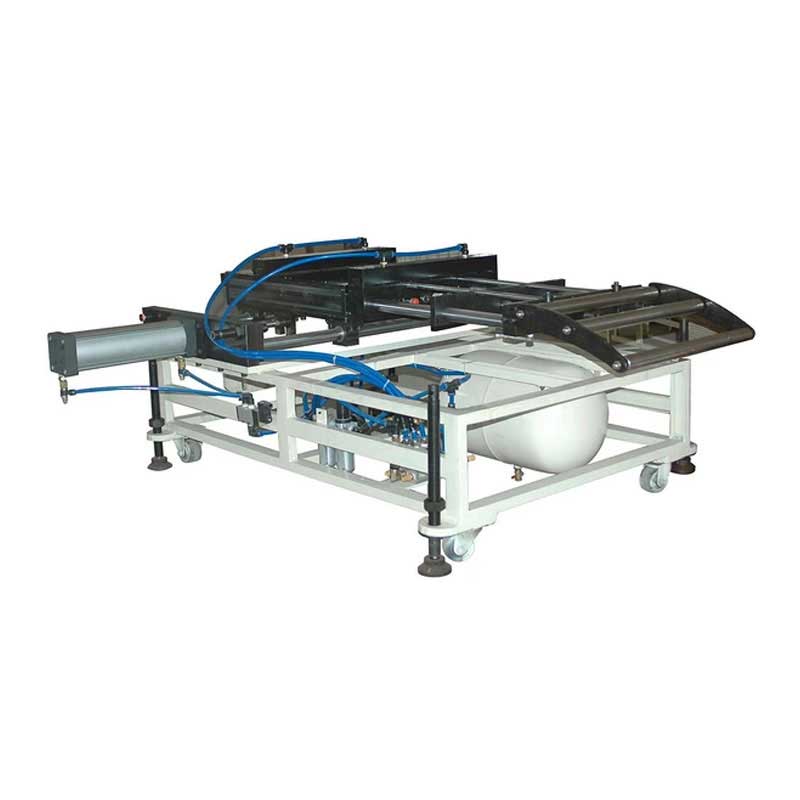

Left and right zigzag style

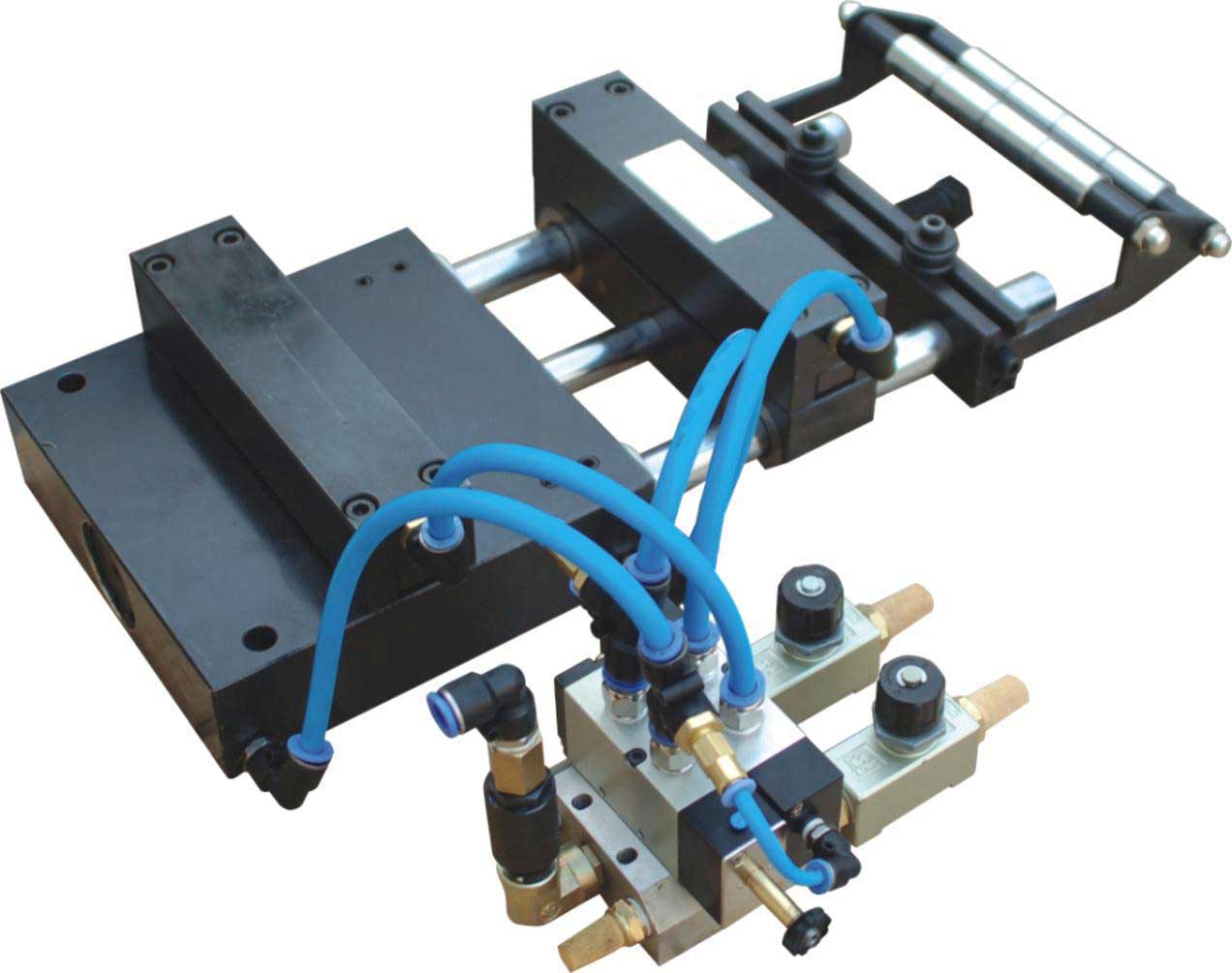

Suitable for various forms of parts processing, can save more than 1/2 of the material. The support adopts direct bearing, cooperates with the circular rod slide, no noise, high wear resistance, light load, rapid displacement, and shorten the feeding time. Choose feeding time by electronic control. Simple operation, easy maintenance, high accuracy.
Specification:
Type | Strip Width Max. | Stroke max. | Strip Thickness Max. | Max. Stroke/min |
AF-1C | 50mm | 50mm | 0.5mm | 250 |
AF-2C | 65mm | 80mm | 0.8mm | 200 |
AF-3C | 80mm | 80mm | 1.2mm | 180 |
AF-4C | 100mm | 130mm | 1.5mm | 130 |
AF-5C | 150mm | 150mm | 2.0mm | 100 |
AF-6C | 200mm | 200mm | 2.0mm | 50 |
AF-7C | 250mm | 250mm | 2.5mm | 50 |
AF-8C | 300mm | 300mm | 2.5mm | 45 |
AF-9C | 350mm | 350mm | 3.0mm | 35 |
Features:
Coil stock can be fed in any direction or angle at any time during the machine cycle. A single feed can push or pull through long or short progressions.
A variety of stock widths and thicknesses can be fed at different speeds and feed lengths. Two or more strips can be simultaneously fed by the same feed.
