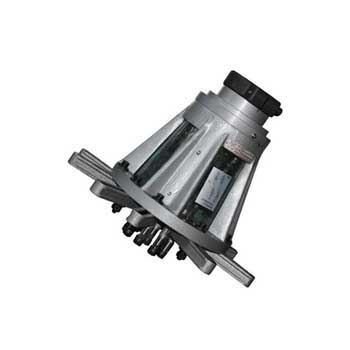

U-Type Circle 4-16 Axis Adjustable Multi Spindle Head MU250 for High Efficiency
Products Description
1. The body structure is composed of gearbox and universal joint head. It is easy to adjust the processing hole distance without restriction of gear, saves adjusting time, and has few dead angle. It is suitable for the work of processing near circular distributed holes. It is the easiest specification to operate in the adjustable mode. In order to ensure the life and universal joint, the moving range should not exceed 15 degrees, which is equal to about 30 mm before and after perpendicularity.
2. According to the different pitch of the same work piece, multi-axle machine with different speed ratio can be customized to ensure that different pitch products are tapping at the same time.
3. According to the product drawings and the coordinates of hole spacing, the structure of gearbox is designed to determine the boring position.
4. Subject color is optional, default is silver gray.
2. According to the different pitch of the same work piece, multi-axle machine with different speed ratio can be customized to ensure that different pitch products are tapping at the same time.
3. According to the product drawings and the coordinates of hole spacing, the structure of gearbox is designed to determine the boring position.
4. Subject color is optional, default is silver gray.
Product Certifications
Model NO. | MU250 |
Max. Drilling/Tapping Capacity | ER8 ER11 ER16 ER20 |
Speed ratio | 1:1 |
Min.distance between 2 axis | 13 18 26 28 |
Max.axis range | 250 |
Number of range | 4-16 |
 |
