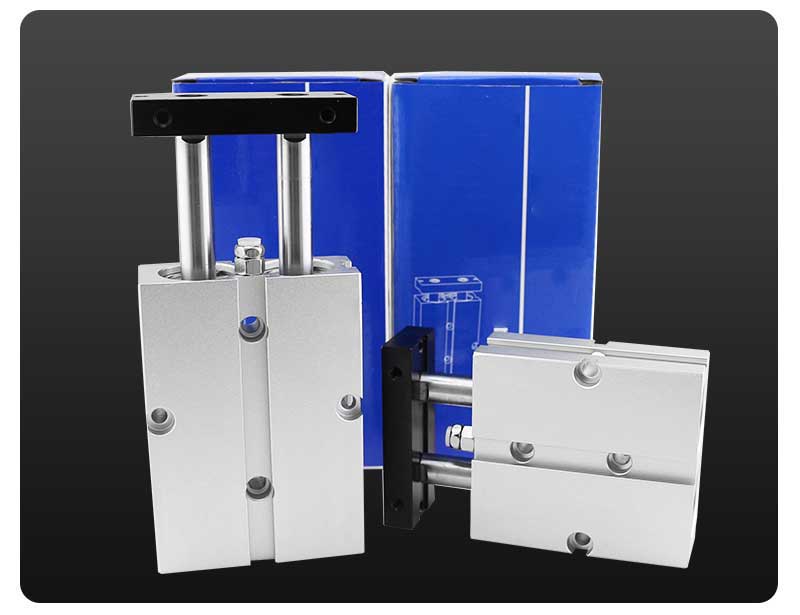

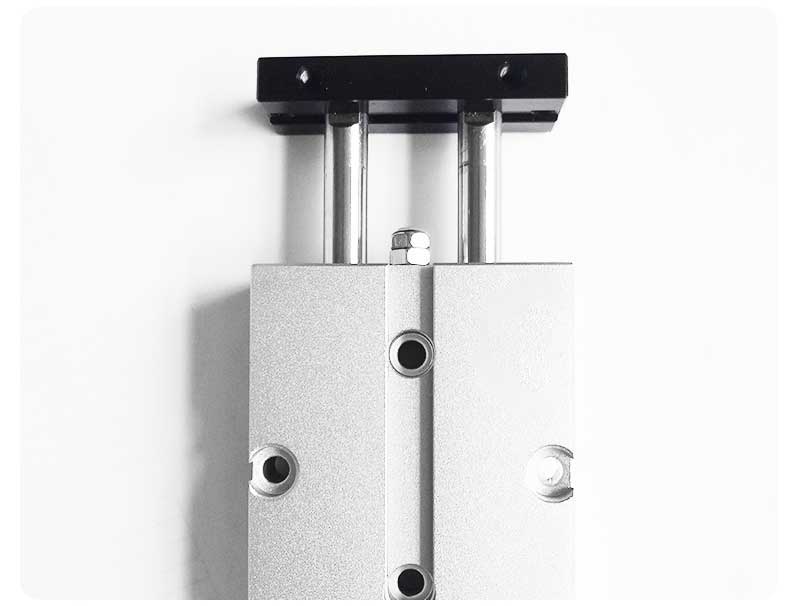

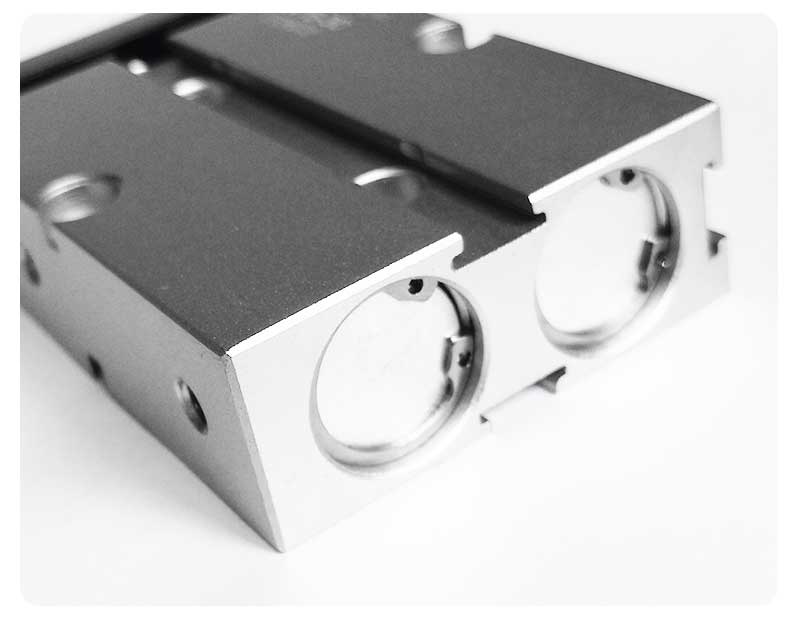

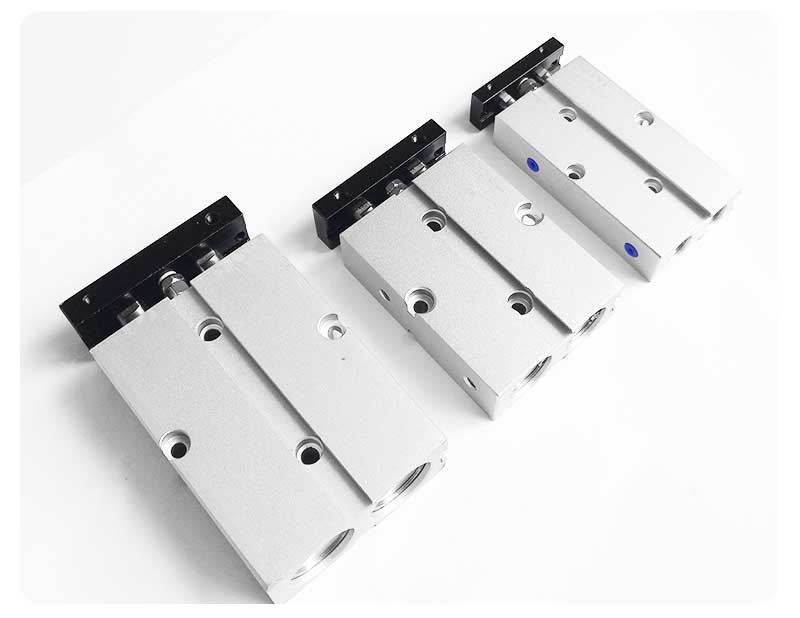

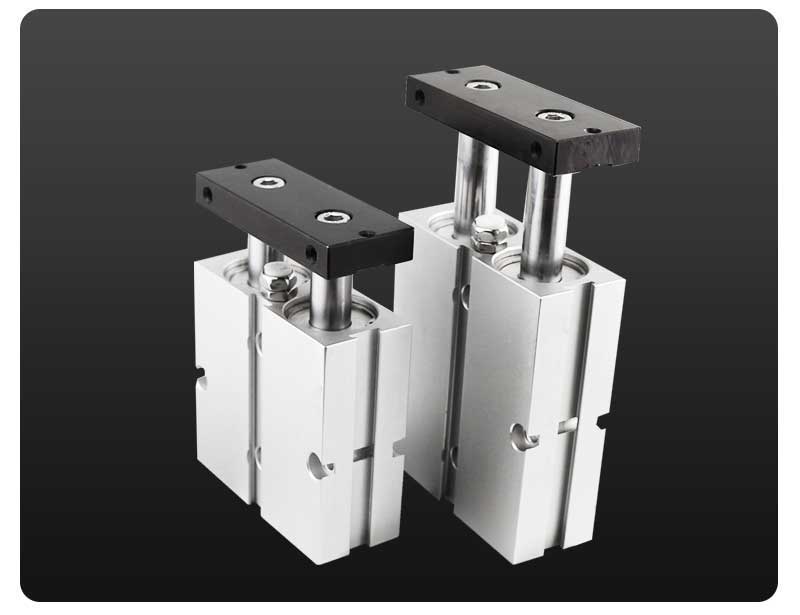

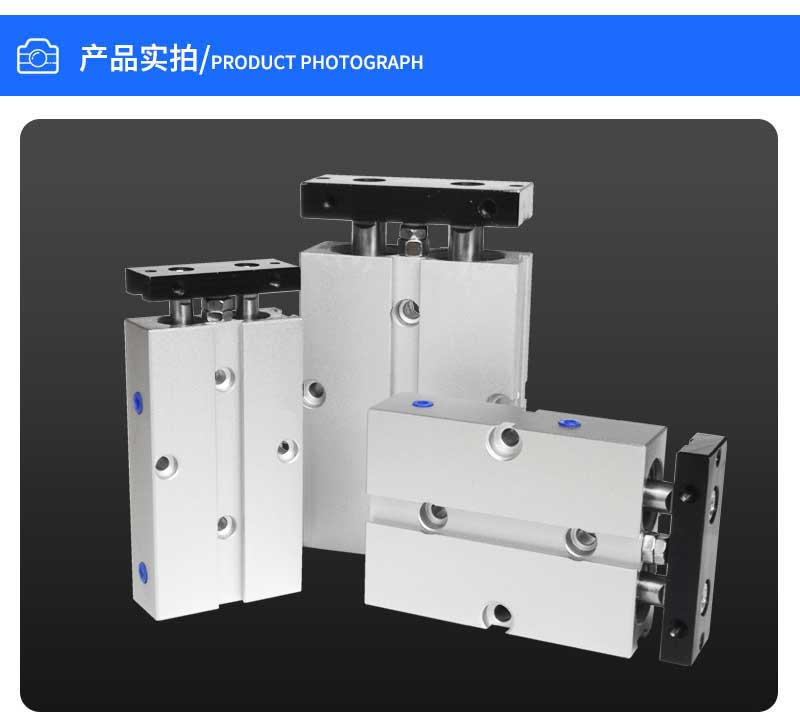

TDA/TN20X10 TN20X20 TN20X25 TN20X30 TN20X40 TN20X50 TN20X60 TN20X80 TN20X100 Twin rod cylinder
from
$16.20
Ex Tax: $16.20
- Stock: In Stock
- Model: SCJ007137
- SKU: SCJ007137
Products Sold: 0
Product Views: 142
Available Options
Ask a Question About This Product
- Specifications
Other attributes | |
Condition | New |
Place of Origin | Shanghai, China |
Showroom Location | None |
Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction worksxa0, Energy & Mining, Advertising Company |
Marketing Type | New Product 2020 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Operation Fluid | Air |
Anti-pressure testing pressure | 1.5Mpa(15.3kgf/c㎡) |
Operation Pressure | 1.5Mpa(15.3kgf/c㎡) |
Min Operation Pressure | 1.5Mpa(15.3kgf/c㎡) |
Ambient and fluid temperature | 5~+60℃ |

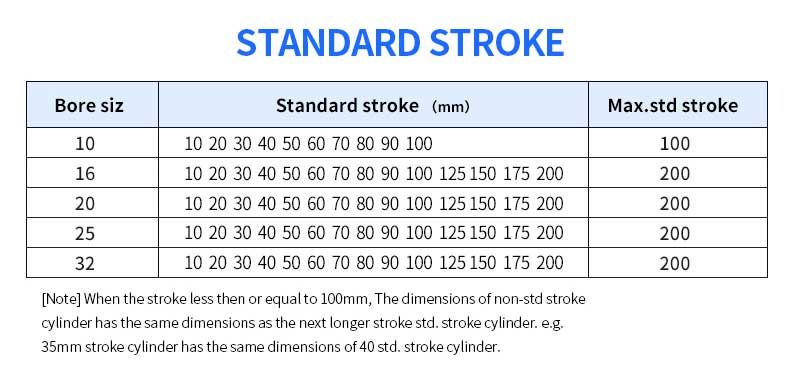

Bore size | 10--50 mm |
Piston Speed | 50~500mm/s |
Buffer | Rubber Buffer |
Product name: | Twin rod cylinder |
Type | Cylinder |
Operation | Double Acting |
Material | carton |
Packaging and delivery | |
Selling Units: | Single item |
Single package size: | 9.5X5.3X1.2 cm |
Single gross weight: | 6.000 kg |

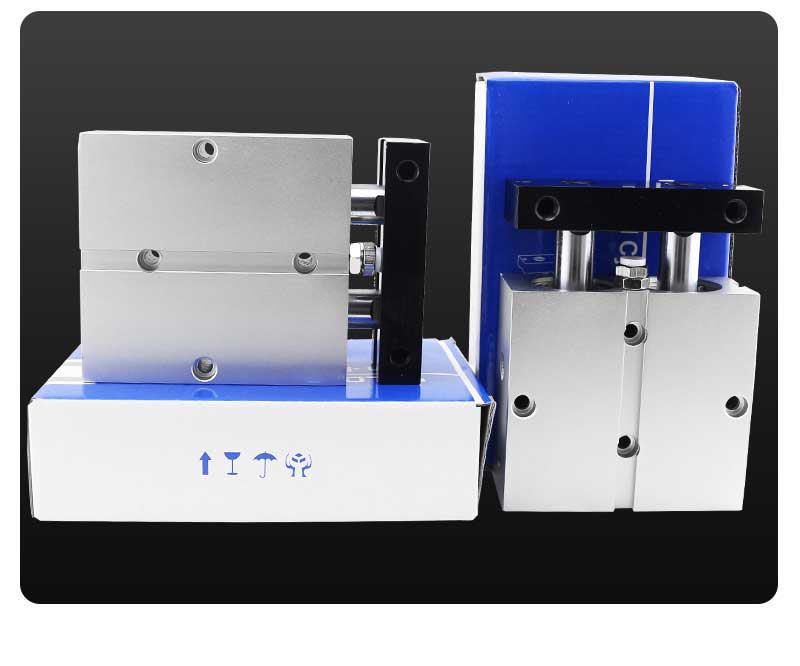

Packaging Details | 20PCS/CARTON for TN Bore 20 Twin rod cylinder |
