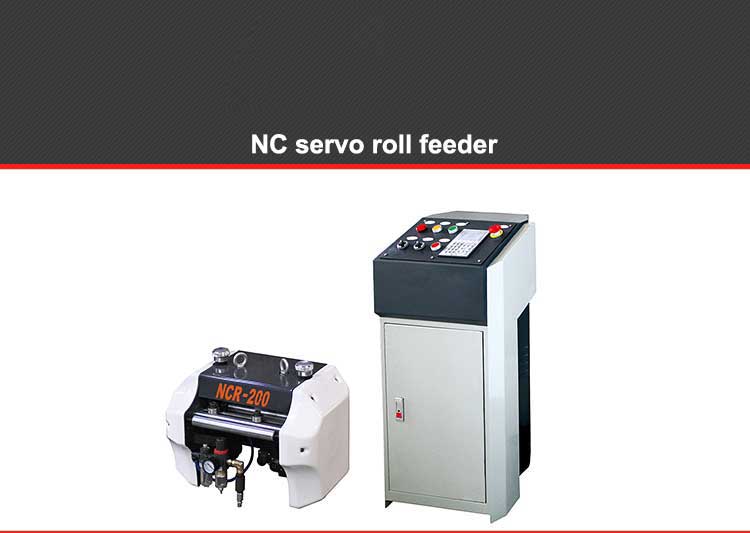

automatic cnc feeder power punch press

Feature:

1,Suitable for material feeding with different thickness and length.
2,Suitable for high speed and long size feeding to improve productivity and feeding accuracy.
3,Simple operation panel, equipped with button digital code of feeding length and feeding speed, the operator can set it arbitrarily, fast and accurate, the feeding length can be from 0.1mm-9999.99mm.
4,Air pressure type relaxation (accurate relaxation point), can be used for a long time, zero fault.
5,According to customer requirements for release type.

Structure:

1,High quality, brushless servo motor drive, effectively shorten the distance adjustment and testing time.
2,High sensitivity decoder is used for accurate insemination and better feeding accuracy.
3,Equipped with timing belt transmission, can eliminate gear gap, wear, no noise, no lubrication, safety and environmental protection.
4,Motor internal device can avoid damage during handling and loading and unloading.
5,The best cost-effective feeder below 400 times .

Description:

·control panel

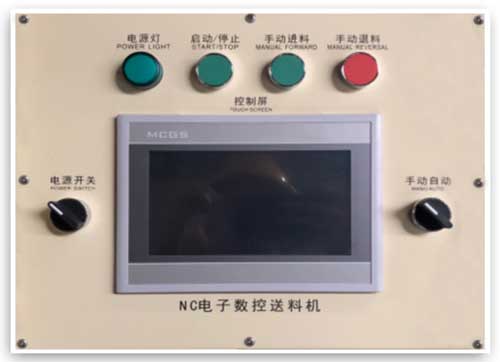

1,HMI adopts Taiwan screen pass 7-inch hd screen, with uniform color and The human-machine interface adopts Taiwan screen pass 7-inch hd screen, with uniform color and exquisite picture quality. It is applied in most industrial environments with high reliability, and supports serial port and network communication synchronously

2,The switch adopts sliding contact, has self-cleaning function, normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket

3,It adopts self-compound flat button button, which is light and light in strength and moderate in key range. The contact of the modular structure is made of ketone compound point, which has strong conductivity and large carrying current, and has a life span of 1 million times.

• operating handle

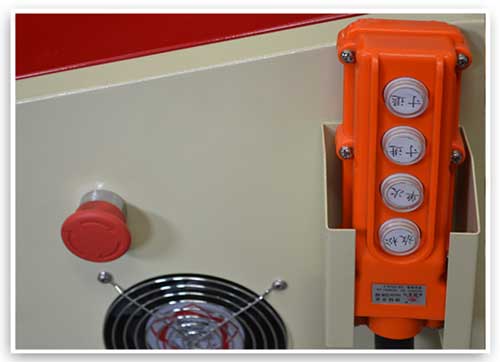

1,The electric control box is equipped with an operation box, which is convenient for personnel transposition operation, time-saving, waterproof and dustproof, high material strength, good electrical conductivity and long service life.

2,The electric control box is separately set with emergency stop button, which is safe and reliable, and can effectively reduce the opening and closing of the electric control box, and effectively protect the operation panel

· Feed roller, block wheel

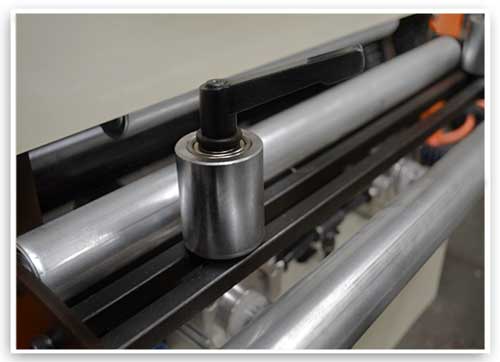

1,The feeding roller adopts the galvanizing roller without power, which is formed in one, and the surface is scratch-resistant and wear-resisting mechanical bearing, which is flexible in rotation and durable

2,Hard chrome plating on feeding wheel, hard chrome hardening HRC60, strong locking force on locking handle, convenient locking, smooth rolling of roller

·Feed cylinder

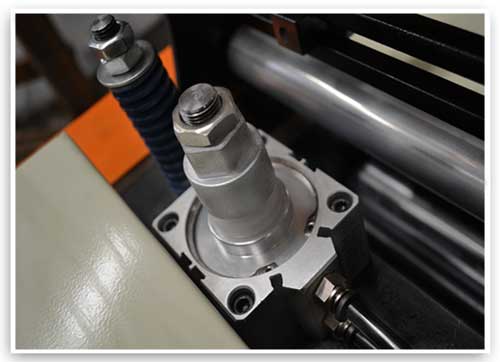

Using genuine yade polite cylinder, alloy cylinder body, hard oxidation, riveting no leakage, solid aluminum CNC precision machining, inner wall grinding smooth, non-clamping, high efficiency, high strength operation, durable, suitable for all kinds of working conditions

·Servo Motor

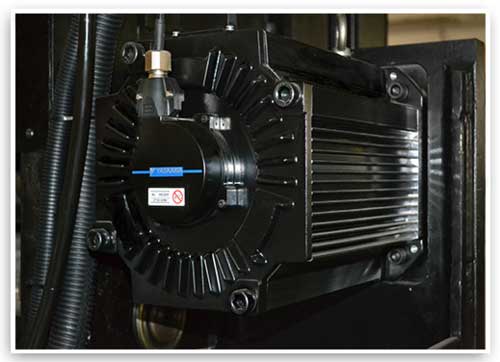

Brands use yaskawa servo motor and drive (optional), improve equipment performance significantly, the maximum play to the device performance, problem solving, yaskawa motor original "no adjustment function" further deepen, without tedious tuning work, stable movement, can be used in harsh environment and energy saving, conform to safety standards, time limit for visualization

·Transmission gear

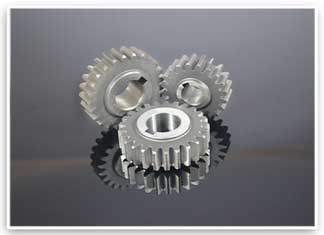

Gear processing process includes the following processes: gear hair cultivation processing - tooth surface processing - heat treatment - tooth surface fine grinding. Maopei parts are mainly forgings. Through normalizing treatment, the machining type of maopei parts is improved to facilitate cutting .According to the gear design drawings, rough machining, and then semi-finishing, turning, rolling, gear shaping, so that the basic gear shape; After the heat treatment to improve the mechanical properties. According to the design requirements of the drawings, the final finishing, finishing the benchmark, finishing the tooth profile. After the above treatment, our gear grade can reach grade 6, high wear resistance, high strength, long service life.

Specification:

Feed capacity:

Parts Brand:

1.     Bearing: Ha Er Bing, Or Wa Fang Dian (Chinese top brand)

2.     Servo motor: Yaskawa, Dahua

3.     User-machine interface screen: Ping Tong (Taiwan good brand)

4.     PLC: MITSUBUSHI (Japanese good brand)

5.     Electromagnetic valve: Pu Nan( Chinese good brand

6.     Pneumatic cylinder: AirTAC (Taiwan brand)

7.     Electric transformer: Jin Huan Long (Chinese good brand)

8.     Proximity switch: Ming Wei (Taiwan good brand)

9.     Switch power: Ming Wei (Taiwan good brand)

10.  Electric relay: Omron (Japanese good brand)

11.  General switch, contactor, button switch, lamp: CHINT (Chinese good brand)
